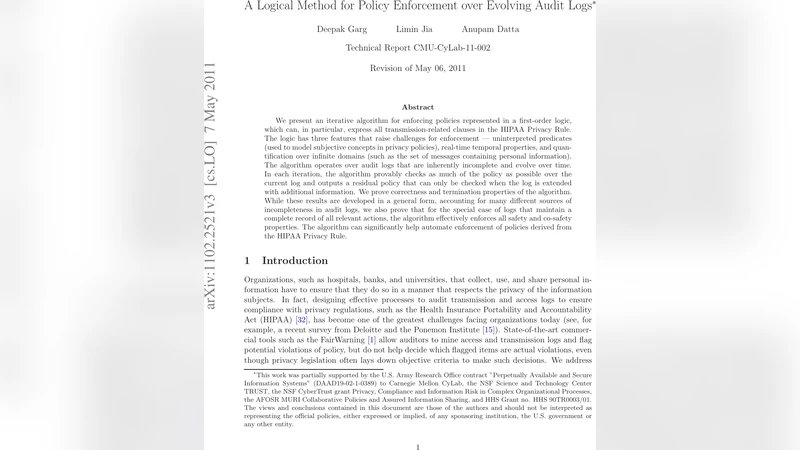

A Logical Method for Policy Enforcement over Evolving Audit Logs

We present an iterative algorithm for enforcing policies represented in a first-order logic, which can, in particular, express all transmission-related clauses in the HIPAA Privacy Rule. The logic has three features that raise challenges for enforcement — uninterpreted predicates (used to model subjective concepts in privacy policies), real-time temporal properties, and quantification over infinite domains (such as the set of messages containing personal information). The algorithm operates over audit logs that are inherently incomplete and evolve over time. In each iteration, the algorithm provably checks as much of the policy as possible over the current log and outputs a residual policy that can only be checked when the log is extended with additional information. We prove correctness and termination properties of the algorithm. While these results are developed in a general form, accounting for many different sources of incompleteness in audit logs, we also prove that for the special case of logs that maintain a complete record of all relevant actions, the algorithm effectively enforces all safety and co-safety properties. The algorithm can significantly help automate enforcement of policies derived from the HIPAA Privacy Rule.

💡 Research Summary

The paper introduces a novel iterative algorithm for enforcing privacy policies expressed in a first‑order temporal logic that is capable of capturing the full set of transmission‑related clauses in the HIPAA Privacy Rule. The authors extend their earlier PrivacyLFP framework with a “Timed First‑order Temporal Logic with Restricted Quantifiers,” which incorporates three challenging features of real‑world privacy regulations: (1) uninterpreted (subjective) predicates that model human judgments, (2) real‑time temporal operators (including past and future modalities and a clock‑binding operator), and (3) quantification over infinite domains such as the set of all possible messages. To keep enforcement tractable, quantifiers are required to be accompanied by a restriction formula c that excludes subjective predicates and can be statically analyzed to guarantee a finite set of relevant substitutions for each quantified variable. This “finite substitution property” is the cornerstone that ensures algorithmic termination.

Audit logs, which are inherently incomplete and evolve over time, are modeled as three‑valued partial structures: each atomic formula is mapped to true, false, or unknown. The paper defines the semantics of the logic over such structures and introduces a partial‑order “L₁ ≥ L₂” meaning that L₁ extends L₂ with additional information (either temporally by appending new events or spatially by merging distributed logs).

The core enforcement mechanism is the reduction function reduce(L, φ) = φ′. Given a current log structure L and a policy formula φ, the algorithm evaluates all atoms whose truth value is determined by L, eliminates them, and produces a residual formula φ′ that contains only those atoms whose truth cannot yet be decided. The reduction proceeds by: (i) evaluating objective predicates using the log, (ii) instantiating quantified variables only with the finite set of substitutions permitted by the c‑restriction, and (iii) preserving the temporal structure of the remaining formula. The authors prove three key properties: (a) Termination – because each quantifier yields only finitely many instances, the reduction always finishes; (b) Correctness – for any extension L′ of L, L′ satisfies the original policy φ iff it satisfies the residual φ′; (c) Minimality – φ′ contains no atom whose truth value is already known in L.

When logs are “complete up to a point in time” (i.e., they contain every event that occurred before a certain timestamp), the algorithm can be used as a runtime monitor. In this setting the paper shows that safety properties (which assert that “something bad never happens”) can be detected at the earliest violating event, while co‑safety properties (which assert that “something good eventually happens”) can be confirmed as soon as the required pattern is observed. This bridges the gap between traditional post‑hoc audit and real‑time monitoring.

The authors apply their framework to the HIPAA Privacy Rule. They encode all 84 transmission‑related clauses in the logic, automatically instantiate the universal quantifiers, and classify each atom as objective or subjective. Their analysis estimates that 17 clauses become fully automatically enforceable (all atoms are objective), and an additional 24 clauses can have at least 80 % of their atoms discharged automatically. The remaining clauses require only a small number of subjective atoms, dramatically reducing the manual effort needed for compliance verification.

Beyond HIPAA, the paper’s contributions include: (1) a formal model of incomplete audit logs as three‑valued structures, (2) a mode‑analysis technique from logic programming that guarantees finite relevant substitutions for quantified variables, (3) a proof‑theoretic treatment of reduction that ensures correctness and minimality, and (4) a unified view of temporal (trace‑based) and spatial (distributed) log extensions.

Limitations are acknowledged: the current logic excludes fixed‑point operators, which are needed for some GLBA clauses; handling of subjective predicates still relies on human input, and the paper does not present empirical performance measurements on large‑scale distributed logs. Future work is suggested to incorporate greatest‑fixed‑point operators, develop user‑friendly interfaces for subjective judgments, and evaluate scalability on real hospital information systems.

In summary, this work delivers a rigorous, implementable method for automatically enforcing complex privacy policies over evolving, possibly incomplete audit logs, offering both theoretical guarantees (termination, correctness, minimality) and practical relevance to high‑stakes regulations such as HIPAA.
