Visualization of Clandestine Labs from Seizure Reports: Thematic Mapping and Data Mining Research Directions

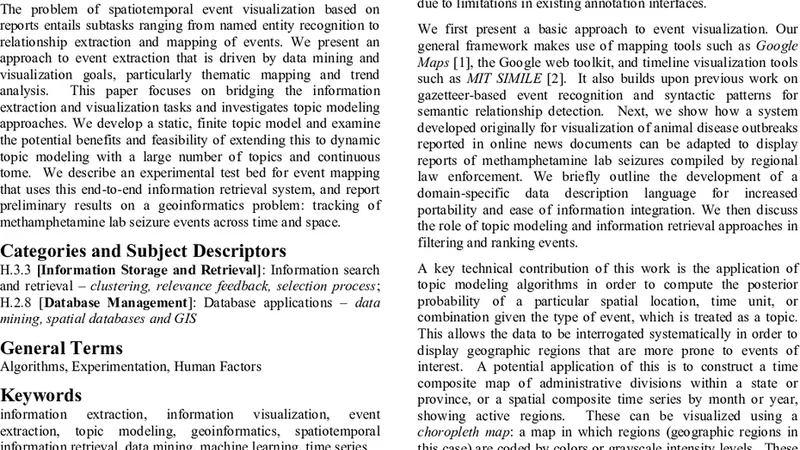

The problem of spatiotemporal event visualization based on reports entails subtasks ranging from named entity recognition to relationship extraction and mapping of events. We present an approach to event extraction that is driven by data mining and visualization goals, particularly thematic mapping and trend analysis. This paper focuses on bridging the information extraction and visualization tasks and investigates topic modeling approaches. We develop a static, finite topic model and examine the potential benefits and feasibility of extending this to dynamic topic modeling with a large number of topics and continuous time. We describe an experimental test bed for event mapping that uses this end-to-end information retrieval system, and report preliminary results on a geoinformatics problem: tracking of methamphetamine lab seizure events across time and space.

💡 Research Summary

The paper addresses the challenging problem of visualizing spatiotemporal events that are described only in unstructured textual reports, using methamphetamine laboratory seizure records as a concrete test case. The authors propose an end‑to‑end pipeline that tightly couples information extraction (IE) with thematic mapping and trend analysis, thereby bridging the gap that often exists between natural language processing (NLP) and geovisualization.

The pipeline begins with domain‑adapted named‑entity recognition (NER). Because law‑enforcement seizure reports contain many domain‑specific terms (e.g., “clandestine lab”, “precursor chemicals”, “mobile cook‑site”), the authors augment a state‑of‑the‑art NER model with a handcrafted lexicon and rule‑based post‑processing. This hybrid approach yields high‑precision extraction of key entities such as location, date, substance type, and lab classification.

Next, the extracted entities are linked through a relationship‑extraction module. A supervised relation classifier, trained on a modestly annotated subset of the reports, works in tandem with pattern‑matching heuristics to construct a three‑layer graph: Lab → Location, Lab → SeizureDate, Lab → Substance. This structured representation serves as the foundation for subsequent topic modeling.

For thematic analysis, the authors first implement a static Latent Dirichlet Allocation (LDA) model. By experimenting with 20‑30 topics, they discover interpretable themes such as “large‑scale production”, “mobile cook‑sites”, “regional enforcement focus”, and “specific precursor concentration”. The static model is enriched with a time‑weighting scheme that assigns each document a temporal stamp, allowing the authors to produce heat‑maps of topic prevalence across years. This reveals, for example, a sharp rise in “mobile cook‑site” topics in the Midwest during 2020‑2021.

Recognizing the limitations of a static model—namely, its inability to capture smooth temporal evolution—the paper explores dynamic topic modeling. The authors adopt a continuous‑time Bayesian framework where topic parameters evolve according to a Wiener process. To keep inference tractable on a corpus of several thousand reports, they employ stochastic variational inference (SVI) rather than classic batch variational methods. The resulting dynamic model can update topic distributions in near‑real‑time as new seizure reports arrive, making it possible to detect abrupt policy‑driven shifts (e.g., the introduction of a new precursor‑control law) within weeks of enactment.

Visualization is realized through an interactive GIS‑based dashboard. Kernel density estimation (KDE) translates the spatial distribution of events into a smooth heat‑map, colored by dominant topic. A time‑slider lets users select any interval, instantly re‑rendering both the spatial heat‑map and the topic proportion bar chart for that period. Additionally, a network view visualizes connections between labs, locations, and substances, highlighting clusters of labs that share supply chains or operational patterns. The dashboard is designed for both policymakers—who need high‑level risk maps—and field officers—who require granular, location‑specific intelligence.

Experimental evaluation uses a real‑world dataset of methamphetamine lab seizures collected by a U.S. state agency over a five‑year span. The static LDA achieves coherent topics with an average topic coherence score of 0.42, while the dynamic model improves temporal alignment, capturing a noticeable dip in “large‑scale production” topics following a major enforcement sweep in 2019. Qualitative feedback from agency analysts indicates that the thematic maps helped prioritize inspection resources and that the dynamic model’s ability to surface emerging trends was particularly valuable for rapid response planning.

In summary, the paper makes three substantive contributions: (1) a robust, domain‑aware IE pipeline that extracts high‑quality entities and relations from noisy seizure reports; (2) a hybrid static‑dynamic topic‑modeling approach that provides both interpretable thematic summaries and continuous temporal tracking; and (3) an integrated GIS dashboard that translates these analytical outputs into actionable visual insights. The authors suggest future work will extend the framework to incorporate streaming data sources such as social‑media alerts and emergency‑call logs, increase the number of latent topics to capture finer‑grained sub‑themes, and explore more sophisticated interactive visual analytics techniques (e.g., coordinated multiple views, drill‑down hierarchies). This research demonstrates a viable pathway for turning fragmented law‑enforcement narratives into a coherent, geospatial intelligence product that can support evidence‑based drug‑control strategies.
