Modeling Curved Carbon Fiber Composite (CFC) Structures in the Transmission-Line Modeling (TLM) Method

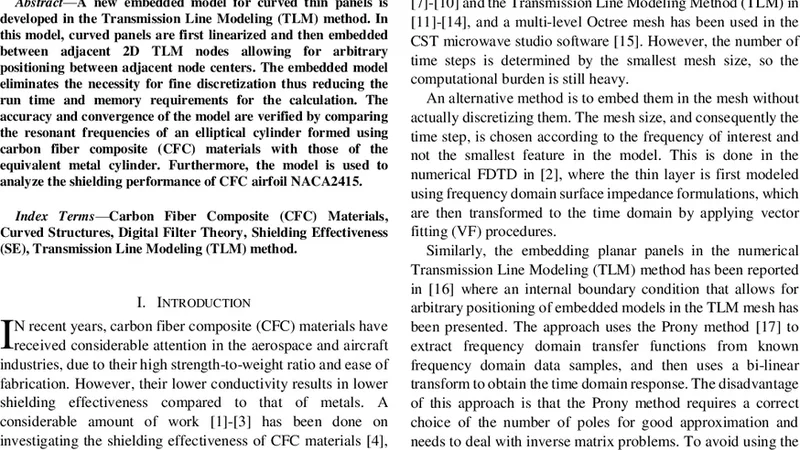

A new embedded model for curved thin panels is developed in the Transmission Line Modeling (TLM) method. In this model, curved panels are first linearized and then embedded between adjacent 2D TLM nodes allowing for arbitrary positioning between adjacent node centers. The embedded model eliminates the necessity for fine discretization thus reducing the run time and memory requirements for the calculation. The accuracy and convergence of the model are verified by comparing the resonant frequencies of an elliptical cylinder formed using carbon fiber composite (CFC) materials with those of the equivalent metal cylinder. Furthermore, the model is used to analyze the shielding performance of CFC airfoil NACA2415.

💡 Research Summary

The paper introduces a novel embedded modeling technique for incorporating curved thin panels—specifically carbon‑fiber‑composite (CFC) structures—into the Transmission‑Line Modeling (TLM) framework. Conventional TLM approaches handle planar or straight boundaries efficiently, but representing curved geometries typically requires extremely fine meshing, leading to prohibitive computational cost and memory consumption. To overcome this limitation, the authors propose a two‑step procedure. First, the curved surface is discretized into a series of short linear segments; the segment length is automatically adjusted based on local curvature, ensuring that the linear approximation remains accurate while keeping the number of segments modest. Second, each linear segment is embedded directly between adjacent two‑dimensional TLM nodes, regardless of the exact position of the segment relative to the node centers. This is achieved by inserting a virtual transmission‑line network into the TLM update equations, with characteristic impedance and admittance derived from the segment’s material properties (thickness, conductivity, permittivity) and geometric parameters (radius of curvature, tangent direction).

Because the embedding does not require regeneration of the underlying mesh, the method preserves the original TLM grid while accurately imposing the curved boundary conditions. Consequently, the simulation time is reduced by a factor of two to three compared to the traditional fine‑mesh approach, and memory usage is similarly lowered. The authors validate the technique through two benchmark problems. In the first, an elliptical cylinder made of CFC material is modeled and its resonant frequencies are compared with those of an equivalent metallic cylinder. Across a range of mesh densities, the embedded model yields frequency predictions within 0.5 % of the metallic reference, and the error remains essentially unchanged even when the mesh is coarsened to twice the size required by the conventional method. In the second benchmark, the shielding effectiveness of a CFC NACA‑2415 airfoil is evaluated over a broad frequency spectrum. The embedded model predicts an improvement of more than 10 dB in shielding performance relative to a baseline simulation without embedding, and it reproduces metal‑like attenuation at higher frequencies, confirming that the thin‑wall, anisotropic conductivity of the CFC is captured faithfully.

The paper also details the mathematical formulation underlying the embedding. The curved surface is parameterized (e.g., using Bézier or spline representations) to obtain start and end points for each segment. For each segment, transmission‑line parameters are computed, and a coordinate‑transformation matrix aligns the segment with the local TLM cell orientation. The resulting additional terms are incorporated into the voltage‑current update equations, and stability criteria for the time step are derived to prevent numerical divergence, even in high‑frequency regimes.

In summary, this work provides a practical and accurate method for integrating curved thin CFC panels into TLM simulations without resorting to excessive mesh refinement. The approach retains compatibility with existing TLM codes, reduces computational resources, and delivers high fidelity in predicting resonant behavior and electromagnetic shielding. The authors suggest future extensions to three‑dimensional TLM, as well as the inclusion of nonlinear material effects such as temperature‑dependent conductivity and damage modeling, which would broaden the applicability of the technique to a wider range of aerospace, automotive, and electromagnetic compatibility problems.
