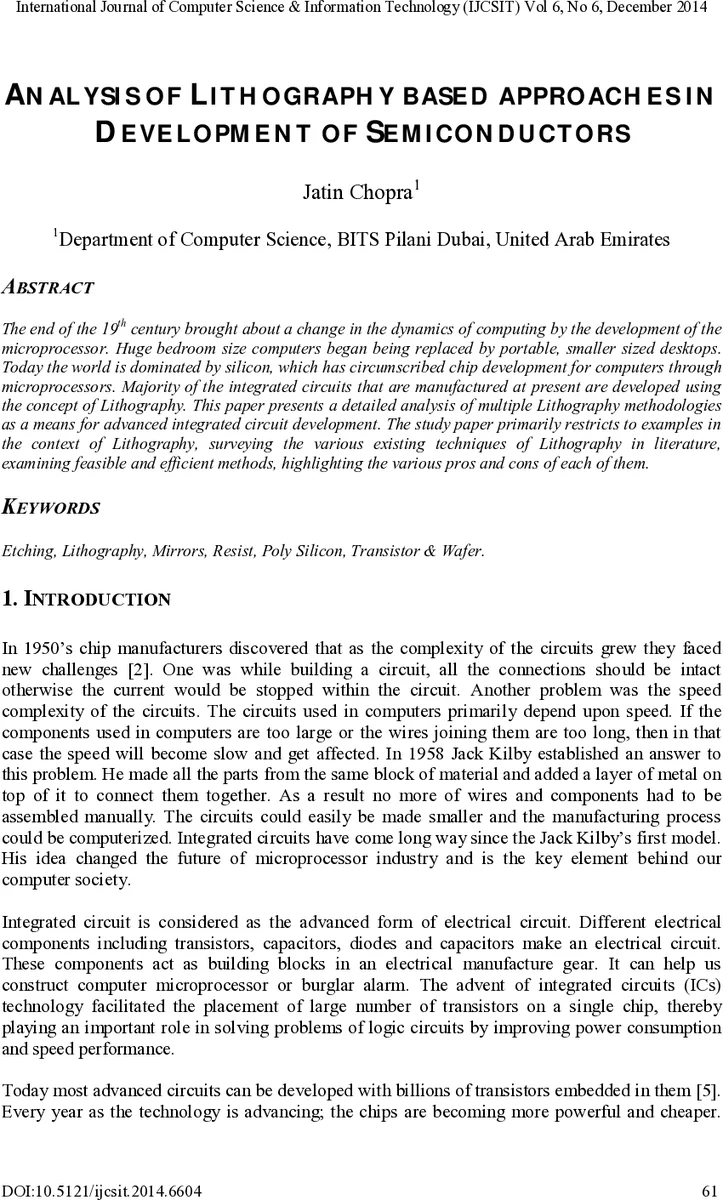

Analysis of Lithography Based Approaches In development of Semi Conductors

The end of the 19th century brought about a change in the dynamics of computing by the development of the microprocessor. Huge bedroom size computers began being replaced by portable, smaller sized desktops. Today the world is dominated by silicon, which has circumscribed chip development for computers through microprocessors. Majority of the integrated circuits that are manufactured at present are developed using the concept of Lithography. This paper presents a detailed analysis of multiple Lithography methodologies as a means for advanced integrated circuit development. The study paper primarily restricts to examples in the context of Lithography, surveying the various existing techniques of Lithography in literature, examining feasible and efficient methods, highlighting the various pros and cons of each of them.

💡 Research Summary

The paper titled “Analysis of Lithography Based Approaches In Development of Semiconductors” attempts to provide a broad overview of the lithographic techniques that dominate modern integrated‑circuit (IC) manufacturing. It begins with a historical narrative, tracing the evolution from early micro‑processor development in the 1950s to the present dominance of silicon‑based ICs, and highlights Jack Kilby’s pioneering work as the catalyst for monolithic integration. The authors then define lithography—derived from the Greek words for “stone” and “writing”—as the process of transferring a mask pattern onto a photosensitive resist layer on a wafer, followed by development and etching.

The stated objectives are threefold: (1) summarize the chip‑fabrication process using lithography and enumerate its merits and drawbacks; (2) survey existing lithography tools employed in IC production; and (3) present a detailed analysis of Extreme Ultraviolet (EUV) lithography as a promising future technology. An acronym list is provided for common industry terms such as AMD, DUV, EUV, HF, and PMMA.

Section 4 offers a concise terminology guide (wafer, photoresist – positive and negative, pattern) and outlines the generic lithography workflow: wafer coating, exposure, development, and etching. Figure 1 (referenced but not shown) supposedly classifies lithography methods, while Figure 2 illustrates the basic process steps.

The core of the manuscript is Section 5, which reviews three principal lithography families:

1. Electron‑Beam Lithography (EBL) – Described as a mask‑less technique that uses a focused electron beam (diameter 0.01–0.5 µm) scanned across the substrate under computer control. The authors discuss three writing strategies—raster scan, vector scan, and variable‑shaped beam—explaining how spot size influences the trade‑off between resolution and throughput. Advantages cited include design flexibility, high resolution, and mask cost savings. Limitations highlighted are slow write speed, proximity effects (non‑uniform exposure due to beam scattering), and the difficulty of dissolving organic resists after exposure.

2. X‑Ray Lithography – Presented as a short‑wavelength approach capable of sub‑20 nm features. The process uses an X‑Ray mask composed of a high‑Z absorber (often gold) and a low‑Z membrane. Two resist types are discussed: positive (e.g., PMMA, PBS) and negative (e.g., COP). Benefits include reduced diffraction limits, high resolution, and negligible proximity effects. The authors note the drawbacks of long exposure times, the high cost and technical challenge of fabricating X‑Ray masks, and limited commercial adoption.

3. Optical Lithography – Identified as the workhorse of mass production, with minimum feature sizes ranging from 250 nm down to 35 nm for deep‑UV (DUV) systems. Three printing modes are described: contact printing (direct wafer‑mask contact, high resolution but rapid mask wear), proximity printing (small gap to extend mask life at the expense of resolution), and (implicitly) projection printing (not detailed). The section emphasizes the reliance on ultraviolet wavelengths (193 nm, 248 nm, 365 nm) and the evolution toward EUV (13.5 nm) for future nodes.

Each subsection lists advantages and disadvantages, but the paper lacks quantitative data, comparative tables, or experimental results that would substantiate the claims. The discussion of EUV lithography is limited to a brief mention in the objectives, with no technical depth or performance metrics provided.

The concluding remarks reiterate that lithography remains the cornerstone of semiconductor fabrication, that each technique involves inherent trade‑offs between resolution, throughput, cost, and equipment complexity, and that EUV holds promise for simultaneously achieving finer features and higher productivity—provided its high capital expense and tool reliability issues are addressed.

Overall, the manuscript serves as a high‑level introductory survey rather than a rigorous technical analysis. It suffers from numerous typographical and grammatical errors, inconsistent formatting, and an outdated reference list that omits recent advances in EUV source power, multi‑patterning, and resist chemistry. For the paper to be valuable to researchers and industry practitioners, it would need substantial revisions: inclusion of up‑to‑date literature, presentation of experimental or simulation data comparing the three lithography families, deeper treatment of EUV challenges (e.g., stochastic defects, mask blank availability), and a thorough proofreading to improve readability.
