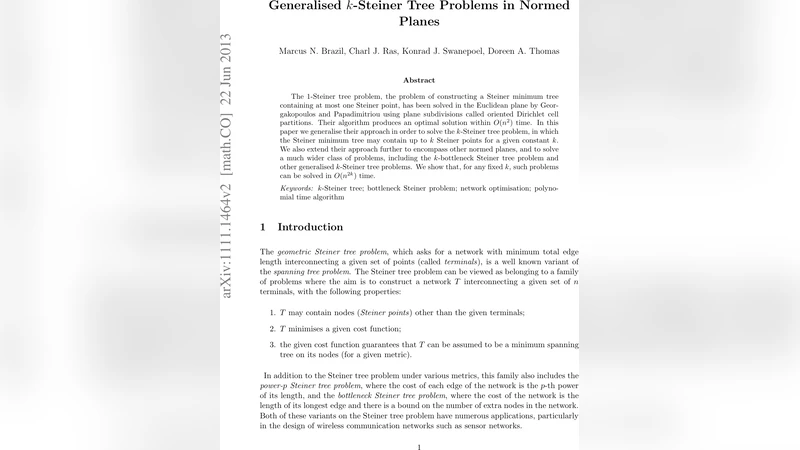

Generalised k-Steiner Tree Problems in Normed Planes

The 1-Steiner tree problem, the problem of constructing a Steiner minimum tree containing at most one Steiner point, has been solved in the Euclidean plane by Georgakopoulos and Papadimitriou using plane subdivisions called oriented Dirichlet cell partitions. Their algorithm produces an optimal solution within $O(n^2)$ time. In this paper we generalise their approach in order to solve the $k$-Steiner tree problem, in which the Steiner minimum tree may contain up to $k$ Steiner points for a given constant $k$. We also extend their approach further to encompass other normed planes, and to solve a much wider class of problems, including the $k$-bottleneck Steiner tree problem and other generalised $k$-Steiner tree problems. We show that, for any fixed $k$, such problems can be solved in $O(n^{2k})$ time.

💡 Research Summary

The paper tackles a broad class of geometric network design problems that can be expressed as “generalised k‑Steiner tree” problems. In this formulation one is given a set X of n terminal points in the plane, a norm ‖·‖ defining the underlying metric, and a symmetric cost function α that is ℓ₁‑optimisable (i.e., for any fixed set of terminals the minimum‑cost spanning tree coincides with a minimum spanning tree on the same vertex set). The goal is to add at most k extra points (Steiner points) and to connect all points (terminals plus Steiner points) with a tree of minimum α‑cost. The parameter k is assumed to be a constant, while n may be arbitrarily large.

The authors build on the seminal O(n²) algorithm of Georgakopoulos and Papadimitriou for the 1‑Steiner problem in the Euclidean plane. That algorithm’s power comes from the “oriented Dirichlet cell” (ODC) partition: the plane is divided into O(n²) regions such that, for any new point s placed inside a region R, the set of possible neighbours of s in an optimal tree is a fixed subset C_X(R) of at most six terminals. By enumerating all subsets of C_X(R) the algorithm can test every possible placement of a single Steiner point in constant time per subset, leading to an overall O(n²) procedure.

Extending this idea to arbitrary norms and to multiple Steiner points is non‑trivial. The authors first introduce an abstract Voronoi diagram that is equivalent to the ODC partition for any norm whose unit ball B satisfies three mild restrictions. Restriction 1 requires that intersections of translated copies of the boundary ∂B, and intersections of straight lines with ∂B, can be computed to any fixed precision in constant time. This holds for circles, ellipses, regular polygons, and many other centrally symmetric convex bodies. Under these conditions the ODC for a single terminal can be built in O(n log n) time; overlaying the ODCs of all terminals yields the “overlayed ODC” (OODC) partition in O(n²) time.

The OODC partition has the same crucial property as in the Euclidean case: each region R determines a small, constant‑size candidate neighbour set C_X(R). Consequently, when up to k Steiner points are allowed, the total number of feasible internal topologies (i.e., forests whose leaves are terminals and whose internal vertices are the Steiner points) is bounded by O(n^{2k}). The authors describe how to enumerate these topologies efficiently: for each Steiner point they consider all O(n²) cells of the OODC, and for each cell they consider all subsets of its candidate neighbour set (at most 2⁶ possibilities). Since k is fixed, the combinatorial explosion is polynomial.

Once a topology is fixed, the problem reduces to the classic “fixed‑topology Steiner tree” subproblem: given a forest structure and a set of terminals, locate the Steiner points so that the α‑cost of the resulting tree is minimized. Because α is ℓ₁‑optimisable, the optimal positions can be found in constant time per topology (for many common norms this amounts to solving a small convex optimisation problem, e.g., locating a Fermat point in Euclidean space or a median in ℓ₁). The authors discuss the necessary conditions on α and on the norm to guarantee this constant‑time solvability.

Having computed the optimal Steiner locations for a given topology, the algorithm must merge the Steiner forest with a minimum spanning tree (MST) on the terminals. Adding the Steiner points creates cycles; the authors present a linear‑time “MST update” routine that removes the appropriate edges to restore a tree while preserving optimality. Pre‑processing the MST of the terminals allows each update to be performed in O(1) amortised time.

Putting all pieces together, the overall algorithm proceeds as follows:

1. Compute an MST T₀ on the terminal set X (O(n log n) or O(n²) depending on the norm).
2. Build the OODC partition for X (O(n²) time).
3. Enumerate all feasible internal topologies (O(n^{2k}) due to constant k).
4. For each topology, solve the fixed‑topology Steiner subproblem (constant time) and update the MST to obtain a candidate full tree.
5. Keep the cheapest candidate; this is the optimal generalised k‑Steiner tree.

The total running time is O(n^{2k}) when constant‑size factors (such as the 6‑neighbour bound and the constant‑time geometry operations) are ignored. This matches the claimed bound in the abstract. The paper also surveys related work on 1‑Steiner extensions to ℓₚ norms, bottleneck Steiner trees, and existing exact solvers such as GeoSteiner, explaining why those methods do not directly extend to the bounded‑k setting.

In the discussion, the authors identify a concrete class of norms (including ℓ₁, ℓ_∞, Euclidean, and any norm whose unit ball is a centrally symmetric polygon or smooth convex curve satisfying Restriction 1) for which their algorithm is practical. They also note that the restriction to constant k is essential; allowing k to grow with n would lead to exponential blow‑up in the number of topologies.

Overall, the contribution is a unified framework that generalises the O(n²) 1‑Steiner solution to any fixed number k of Steiner points and to a wide family of normed planes, while preserving polynomial‑time solvability. The result bridges a gap between classical Steiner tree research (unbounded Steiner points) and modern network design problems where a small, bounded number of additional relay nodes must be placed optimally under diverse distance metrics. The techniques—abstract Voronoi/O­DC constructions, bounded candidate neighbour sets, and efficient MST updates—are likely to inspire further work on dynamic or higher‑dimensional versions of the problem.
