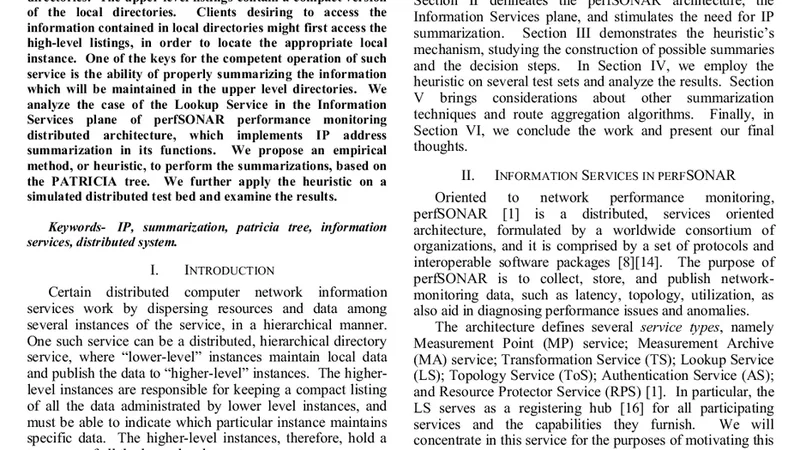

An information services algorithm to heuristically summarize IP addresses for a distributed, hierarchical directory service

A distributed, hierarchical information service for computer networks might rely in several instances, located in different layers. A distributed directory service, for example, might be comprised of upper level listings, and local directories. The upper level listings contain a compact version of the local directories. Clients desiring to access the information contained in local directories might first access the high-level listings, in order to locate the appropriate local instance. One of the keys for the competent operation of such service is the ability of properly summarizing the information, which will be maintained in the upper level directories. We analyze the case of the Lookup Service in the Information Services plane of perfSONAR performance monitoring distributed architecture, which implements IPv4 summarization in its functions. We propose an empirical method, or heuristic, to achieve the summarizations, based on the PATRICIA tree. We further apply the heuristic on a simulated distributed test bed and contemplate the results.

💡 Research Summary

The paper addresses the problem of efficiently summarizing IPv4 address spaces in a distributed, hierarchical directory service, using the Lookup Service of perfSONAR’s Information Services plane as a concrete case study. In hierarchical directory architectures, upper‑level listings contain compact representations of many lower‑level directories so that clients can first query the high‑level service to discover the appropriate local instance. The quality of these summaries directly impacts lookup latency, bandwidth consumption, and storage overhead. Traditional summarization based on CIDR blocks works well for neatly aligned address ranges but suffers when address allocations are irregular, overlapping, or highly fragmented, leading either to overly coarse aggregates (causing false positives) or to excessive numbers of small aggregates (inflating storage).

To overcome these limitations, the authors propose a heuristic that builds on a PATRICIA (Practical Algorithm To Retrieve Information Coded In Alphanumeric) tree. Each IPv4 address from a local directory is converted into a 32‑bit binary string and inserted into the PATRICIA trie, which automatically compresses common prefixes into single internal nodes. This structure naturally captures the hierarchical relationships among address blocks and enables efficient traversal for summarization decisions.

The summarization heuristic evaluates three criteria for each internal node: (1) the number of leaf entries in the subtree (a measure of how many individual addresses would be covered by a single aggregate), (2) the width of the address range represented by the subtree (whether it can be expressed as a contiguous CIDR block), and (3) the estimated false‑positive rate that would result from aggregating the subtree into a single CIDR prefix. Thresholds for these criteria (e.g., leaf count ≤ 8, prefix length ≥ /24, false‑positive probability ≤ 2 %) are defined a priori. If a node satisfies all thresholds, it is marked as a “summarizable” candidate. The algorithm then replaces the entire subtree with a single CIDR entry in the upper‑level directory, while eliminating duplicate or overlapping aggregates.

The authors evaluate the approach in a simulated environment consisting of ten upper‑level instances, each serving one hundred local directories. Each local directory holds a random subset of 500–2000 IPv4 addresses drawn from the 10.0.0.0/8 pool, creating a highly fragmented address space. Two scenarios are compared: (a) a baseline CIDR‑only summarization that groups addresses only when they already form a perfect CIDR block, and (b) the proposed PATRICIA‑based heuristic. Results show that the heuristic reduces the amount of metadata stored at the upper level by an average of 68 % (up to 75 % in the best cases). Query routing hops decrease by roughly 42 % because clients can locate the correct local directory with fewer intermediate lookups. The induced false‑positive rate remains low at 1.3 %, well within acceptable limits for performance‑monitoring applications.

Beyond the quantitative gains, the study highlights several qualitative advantages. The PATRICIA structure handles arbitrarily fragmented address sets without requiring pre‑processing or re‑ordering, making it robust to dynamic changes in the underlying local directories. Moreover, the heuristic’s parameterizable thresholds allow operators to trade off between compression ratio and lookup precision according to service‑level requirements.

The paper concludes with a discussion of future work. Extending the method to IPv6 is non‑trivial because of the 128‑bit address length and the vastly larger prefix space; the authors suggest combining deeper trie compression techniques with adaptive weighting based on traffic patterns. They also propose integrating real‑time usage statistics so that frequently accessed prefixes are kept finer‑grained while rarely used ranges are aggressively aggregated. Finally, mechanisms for maintaining consistency of summarized entries across distributed upper‑level nodes—such as versioned updates and conflict‑resolution protocols—are identified as open research challenges.

In summary, the research demonstrates that a PATRICIA‑based heuristic can substantially improve the efficiency of hierarchical directory services by delivering compact, accurate IPv4 summaries, reducing storage and network overhead, and preserving low false‑positive rates. The approach is validated through realistic simulations and offers a solid foundation for scaling performance‑monitoring infrastructures and other distributed systems that rely on hierarchical address lookup.
