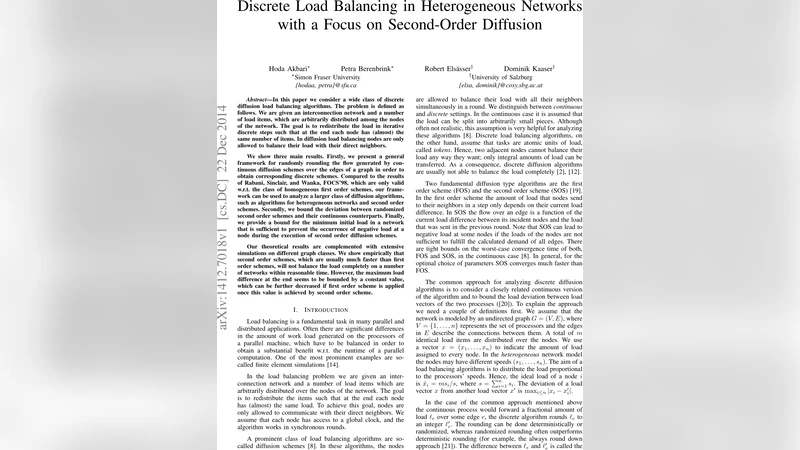

Discrete Load Balancing in Heterogeneous Networks with a Focus on Second-Order Diffusion

In this paper we consider a wide class of discrete diffusion load balancing algorithms. The problem is defined as follows. We are given an interconnection network and a number of load items, which are arbitrarily distributed among the nodes of the network. The goal is to redistribute the load in iterative discrete steps such that at the end each node has (almost) the same number of items. In diffusion load balancing nodes are only allowed to balance their load with their direct neighbors. We show three main results. Firstly, we present a general framework for randomly rounding the flow generated by continuous diffusion schemes over the edges of a graph in order to obtain corresponding discrete schemes. Compared to the results of Rabani, Sinclair, and Wanka, FOCS'98, which are only valid w.r.t. the class of homogeneous first order schemes, our framework can be used to analyze a larger class of diffusion algorithms, such as algorithms for heterogeneous networks and second order schemes. Secondly, we bound the deviation between randomized second order schemes and their continuous counterparts. Finally, we provide a bound for the minimum initial load in a network that is sufficient to prevent the occurrence of negative load at a node during the execution of second order diffusion schemes. Our theoretical results are complemented with extensive simulations on different graph classes. We show empirically that second order schemes, which are usually much faster than first order schemes, will not balance the load completely on a number of networks within reasonable time. However, the maximum load difference at the end seems to be bounded by a constant value, which can be further decreased if first order scheme is applied once this value is achieved by second order scheme.

💡 Research Summary

The paper studies a broad class of discrete diffusion load‑balancing algorithms, focusing on heterogeneous processor speeds and on second‑order diffusion (SOS). The authors first generalize the rounding framework of Rabani, Sinclair and Wanka, which was previously limited to homogeneous first‑order schemes (FOS). Their new framework works for any linear diffusion process: given a continuous diffusion scheme C, they define a discrete counterpart D by applying a randomized rounding operator R to the continuous flow on each edge. By tracking the rounding error e_{i,j}(t) = Ŷ_{i,j}(t) – y^D_{i,j}(t) and using martingale concentration techniques, they obtain a general deviation bound that depends only on the contributions of edges to a node’s load and on the spectral properties of the diffusion matrix M. This approach is applicable to heterogeneous networks (where each node i has speed s_i) and to SOS, which uses both the current load difference and the flow sent in the previous round.

For SOS the continuous update rule is
 y_{i,j}(t) = (β−1)·y_{i,j}(t−1) + β·α_{i,j}(x_i(t)−x_j(t)),
with β∈(0,2). The optimal choice β_opt = 2/(1+√(1−λ²)) yields a convergence time of O(log(Kn)/√(1−λ)) in the continuous setting, substantially faster than the O(log(Kn)/(1−λ)) of FOS. The authors apply their rounding framework to SOS and prove that after the continuous convergence time the maximum deviation between the discrete SOS load vector and its continuous counterpart is

 ‖x^{disc}{SOS}(t) – x^{cont}{SOS}(t)‖_∞ = O( d·log s_max·√log n / (1−λ)^{3/4} ),

where d is the maximum degree, s_max the largest processor speed, and λ the second‑largest eigenvalue (in magnitude) of the diffusion matrix. This bound matches the best known bounds for homogeneous FOS and extends them to heterogeneous SOS, albeit with a slightly weaker dependence on the spectral gap.

A second major contribution is a bound on the minimum initial load required to avoid negative loads, a phenomenon unique to SOS because the flow may exceed a node’s current load. For the continuous SOS the authors show that if every node starts with at least

 Ω( √n·Δ(0) / √(1−λ) )

tokens, where Δ(0) is the initial load imbalance, then no node ever becomes negative. For the discrete SOS they derive a similar condition with an additional additive term d², i.e.,

 Ω( (√n·Δ(0) + d²) / √(1−λ) ).

These are, to the best of the authors’ knowledge, the first explicit sufficient conditions for SOS to remain non‑negative.

The theoretical results are complemented by extensive simulations on several graph families (2‑dimensional tori, complete graphs, random graphs). The experiments confirm that SOS converges in far fewer rounds than FOS, especially on graphs with a good spectral gap. However, after the rapid SOS phase the maximum load difference typically stabilizes at a small constant (a few tokens). To eliminate this residual imbalance, the authors propose a hybrid strategy: once the load difference falls below a predefined constant, switch from SOS to FOS. Simulations show that this switch reduces the final discrepancy to O(log n) or less, effectively achieving near‑perfect balance.

In summary, the paper provides (1) a unified, random‑rounding based analysis framework for a wide range of linear diffusion processes, (2) concrete deviation and safety bounds for second‑order diffusion on heterogeneous networks, and (3) practical guidance—through hybrid SOS/FOS scheduling—for achieving fast and accurate load balancing in large‑scale distributed systems.
