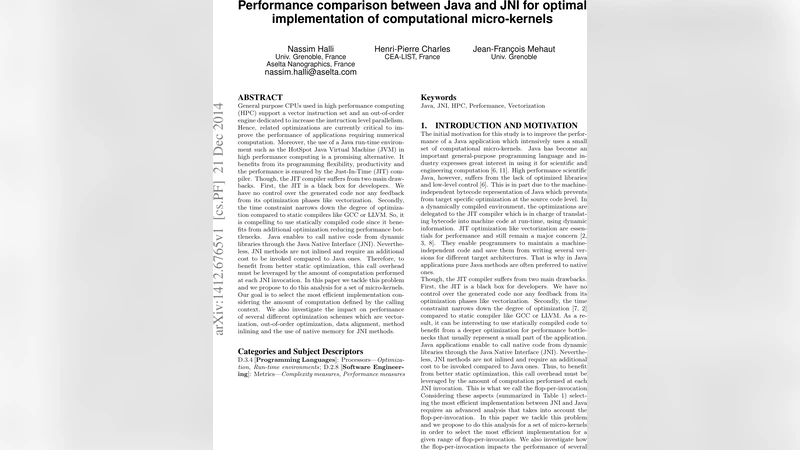

Performance comparison between Java and JNI for optimal implementation of computational micro-kernels

General purpose CPUs used in high performance computing (HPC) support a vector instruction set and an out-of-order engine dedicated to increase the instruction level parallelism. Hence, related optimizations are currently critical to improve the performance of applications requiring numerical computation. Moreover, the use of a Java run-time environment such as the HotSpot Java Virtual Machine (JVM) in high performance computing is a promising alternative. It benefits from its programming flexibility, productivity and the performance is ensured by the Just-In-Time (JIT) compiler. Though, the JIT compiler suffers from two main drawbacks. First, the JIT is a black box for developers. We have no control over the generated code nor any feedback from its optimization phases like vectorization. Secondly, the time constraint narrows down the degree of optimization compared to static compilers like GCC or LLVM. So, it is compelling to use statically compiled code since it benefits from additional optimization reducing performance bottlenecks. Java enables to call native code from dynamic libraries through the Java Native Interface (JNI). Nevertheless, JNI methods are not inlined and require an additional cost to be invoked compared to Java ones. Therefore, to benefit from better static optimization, this call overhead must be leveraged by the amount of computation performed at each JNI invocation. In this paper we tackle this problem and we propose to do this analysis for a set of micro-kernels. Our goal is to select the most efficient implementation considering the amount of computation defined by the calling context. We also investigate the impact on performance of several different optimization schemes which are vectorization, out-of-order optimization, data alignment, method inlining and the use of native memory for JNI methods.

💡 Research Summary

The paper investigates the performance trade‑offs between pure Java implementations executed by the HotSpot server JIT compiler and native code invoked through the Java Native Interface (JNI) for a set of computational micro‑kernels. Modern high‑performance CPUs such as Intel’s Sandy Bridge provide vector instruction sets (AVX) and out‑of‑order execution engines that can dramatically increase instruction‑level parallelism. While the JIT compiler can generate reasonably efficient code, it suffers from two fundamental drawbacks: it is a “black box” that offers no direct control or feedback on low‑level optimizations such as vectorization, and its time‑limited compilation phase prevents it from achieving the same depth of optimization as static compilers like GCC or LLVM. Consequently, the authors explore whether statically compiled native code, accessed via JNI, can deliver higher performance despite the additional call overhead inherent to JNI.

The authors introduce a quantitative model based on “flop‑per‑invocation” (F), the number of floating‑point operations performed each time a kernel is called, and “memory‑per‑invocation” (M), the amount of data moved. The arithmetic intensity AI = F/M determines whether a kernel is memory‑bound (AI < 1 flop/byte) or CPU‑bound (AI > 1 flop/byte) on the target platform (peak compute 41.6 Gflop/s, peak memory bandwidth ≈ 40 GB/s). They further model the JNI call cost as a constant I expressed in flop equivalents, yielding the performance equation P = Pmax·F/(I + F). This formulation shows that for small F the call overhead dominates, while for large F the kernel approaches its peak performance Pmax.

Two families of optimizations are examined. Asymptotic optimizations become effective when F is large: (1) vectorization using AVX 256‑bit registers (four double‑precision operations per instruction) and (2) out‑of‑order (OOO) execution that distributes independent instructions across the six execution ports of Sandy Bridge. The authors note that HotSpot’s server JIT performs lightweight auto‑vectorization via Super‑Word Level Parallelism (SLP) but cannot combine OOO with vectorization nor handle reduction patterns efficiently. In contrast, GCC can emit explicit AVX intrinsics and guarantee 32‑byte alignment, achieving full vector width and optimal OOO scheduling.

The second family targets the reduction of the JNI call overhead. Java method inlining eliminates the call cost entirely, but only for methods whose bodies are small and whose call sites are known at compile time. JNI itself incurs two calls (Java→wrapper, wrapper→native) plus additional callbacks when accessing Java heap objects. To mitigate this, the authors explore the use of native (off‑heap) memory, allowing direct pointer passing to native code and avoiding costly JNI callbacks.

A benchmark suite comprising five representative kernels (array addition, horizontal sum, Horner polynomial evaluation, etc.) is built. Each kernel is implemented in several variants: pure Java (java), JNI‑based native (jni), Java with inlining (inline), JNI with native memory (native), combined with vectorization (vect), unaligned vectorization (vect‑unalign), and OOO optimization (ooo). Experiments are run on an Intel i5‑2500 (3.30 GHz) under Linux 2.6.3 with OpenJDK 1.8.0 and GCC 4.4.7.

Results show a clear dependency on flop‑per‑invocation. For very small workloads (≈10³–10⁵ flop), the inlined Java version outperforms all JNI variants because the call overhead dominates. In the medium range (≈10⁶–10⁸ flop), vectorized JNI implementations become superior; proper 32‑byte alignment yields 1.8×–2.2× speed‑ups over non‑vectorized code, and the JNI call cost is amortized over the larger computation. For large, CPU‑bound kernels (≥10⁹ flop), combining vectorization with OOO yields the highest throughput, and using native memory reduces JNI overhead by an additional ~12 % on average. Misaligned data, however, can negate vectorization benefits and even cause performance regressions.

The authors synthesize these observations into a practical decision guide: (1) use pure Java with inlining for kernels whose flop‑per‑invocation is below ~10⁵; (2) switch to JNI with static compilation and explicit AVX vectorization for medium‑size kernels; (3) for large, compute‑bound kernels, employ both vectorization and OOO in native code, and consider native memory to eliminate remaining JNI callbacks. They emphasize that the JIT’s opacity makes it difficult for developers to predict performance, so a hybrid approach—keeping high‑level algorithmic code in Java while off‑loading performance‑critical micro‑kernels to carefully tuned native libraries—offers the best trade‑off between productivity and speed.

In conclusion, the paper provides a rigorous performance model, a thorough experimental evaluation, and actionable guidelines for developers seeking to harness the strengths of both Java and JNI in high‑performance scientific computing. It demonstrates that, when the computational intensity per call is sufficiently high, statically compiled native kernels accessed via JNI can surpass JIT‑generated Java code, especially when combined with low‑level optimizations such as AVX vectorization, out‑of‑order execution, proper data alignment, and the use of off‑heap memory.
