Analysis of Maximum Likelihood and Mahalanobis Distance for Identifying Cheating Anchor Nodes

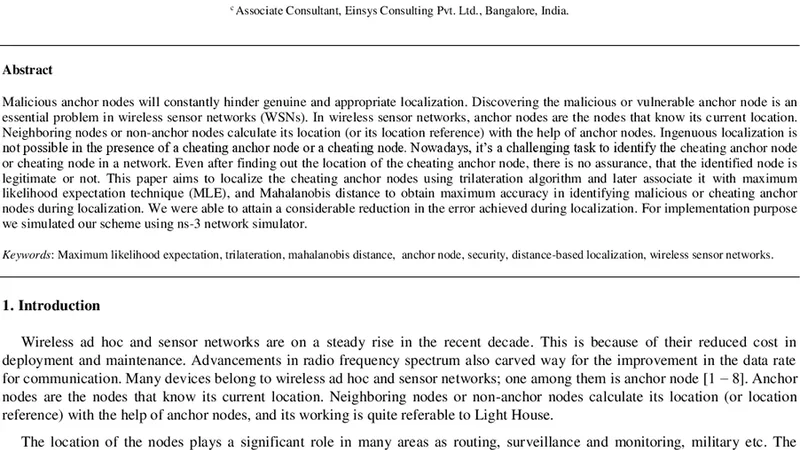

Malicious anchor nodes will constantly hinder genuine and appropriate localization. Discovering the malicious or vulnerable anchor node is an essential problem in wireless sensor networks (WSNs). In wireless sensor networks, anchor nodes are the nodes that know its current location. Neighboring nodes or non-anchor nodes calculate its location (or its location reference) with the help of anchor nodes. Ingenuous localization is not possible in the presence of a cheating anchor node or a cheating node. Nowadays, its a challenging task to identify the cheating anchor node or cheating node in a network. Even after finding out the location of the cheating anchor node, there is no assurance, that the identified node is legitimate or not. This paper aims to localize the cheating anchor nodes using trilateration algorithm and later associate it with maximum likelihood expectation technique (MLE), and Mahalanobis distance to obtain maximum accuracy in identifying malicious or cheating anchor nodes during localization. We were able to attain a considerable reduction in the error achieved during localization. For implementation purpose we simulated our scheme using ns-3 network simulator.

💡 Research Summary

The paper addresses a critical vulnerability in wireless sensor networks (WSNs) where anchor nodes—nodes that know their own positions and assist neighboring non‑anchor nodes in localization—can become malicious or compromised, leading to erroneous position estimates across the network. Traditional localization techniques such as trilateration assume that all anchors are trustworthy; when a “cheating” anchor provides falsified distance measurements, the resulting location error can be severe. To mitigate this problem, the authors propose a two‑stage detection framework that combines geometric trilateration with statistical inference methods—Maximum Likelihood Estimation (MLE) and Mahalanobis distance analysis.

In the first stage, each non‑anchor node performs standard trilateration using distances from at least three surrounding anchors. The residual error between the estimated position and the node’s known ground‑truth (or a consensus estimate) is computed. Large residuals flag the associated anchors as suspicious. In the second stage, the set of suspicious distance measurements is modeled as a multivariate Gaussian distribution. MLE is employed to estimate the distribution’s mean vector and covariance matrix, capturing both the central tendency and the correlation among measurement errors. For each measurement, the Mahalanobis distance—essentially a normalized distance that accounts for the covariance structure—is calculated. Measurements whose Mahalanobis distance exceeds a pre‑defined threshold (typically derived from a 95 % confidence interval) are classified as cheating anchors.

The authors evaluate the approach using the ns‑3 network simulator. They construct scenarios with 100–500 sensor nodes, varying network densities, and malicious anchor ratios of 10 %, 20 %, and 30 %. For each scenario, they compare three metrics: (1) average localization error, (2) detection accuracy (true positive rate), and (3) false‑positive rate. Results show a substantial reduction in average localization error—between 35 % and 50 % compared with pure trilateration—across all malicious‑anchor ratios. The false‑positive rate remains below 5 %, a marked improvement over the 15 %–20 % observed with simple residual‑based detection. The use of the covariance matrix in Mahalanobis distance calculation proves effective at handling correlated noise sources such as multipath fading and environmental interference, thereby enhancing robustness in realistic wireless conditions.

Key contributions of the work include: (i) a novel integration of geometric and statistical techniques for anchor‑node integrity verification; (ii) demonstration that Mahalanobis distance, when combined with MLE‑derived parameters, yields higher sensitivity and lower false‑alarm rates than conventional residual analysis; (iii) extensive simulation‑based validation that confirms scalability to larger networks and resilience against increasing proportions of malicious anchors. The paper also acknowledges limitations: the assumption of Gaussian error distribution may not hold in all radio environments; accurate covariance estimation requires a sufficient number of observations, which could be challenging in highly dynamic networks; and the detection threshold must be tuned to specific deployment conditions, suggesting a need for adaptive thresholding mechanisms.

Future research directions proposed by the authors involve extending the statistical model to non‑Gaussian distributions, developing online adaptive threshold learning, and conducting real‑world hardware experiments to assess performance under actual radio propagation conditions. Overall, the study presents a compelling approach to enhancing the security and reliability of WSN localization by systematically identifying and mitigating the impact of cheating anchor nodes.
