Applicability of DUKPT Key Management Scheme to Cloud Wallet and other Mobile Payments

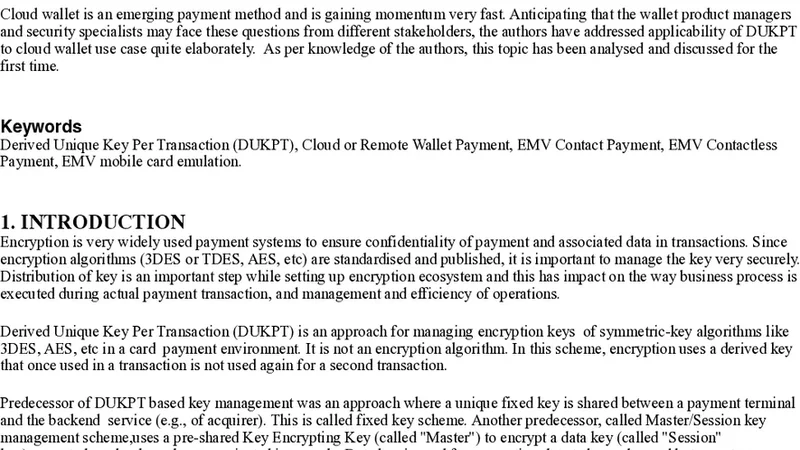

After discussing the concept of DUKPT based symmetric encryption key management (e.g., for 3DES) and definition of cloud or remote wallet, the paper analyses applicability of DUKPT to different use cases like mobile banking, NFC payment using EMV contactless card and mobile based EMV card emulation, web browser based transaction and cloud or remote wallet. Cloud wallet is an emerging payment method and is gaining momentum very fast. Anticipating that the wallet product managers and security specialists may face these questions from different stakeholders, the authors have addressed applicability of DUKPT to cloud wallet use case quite elaborately. As per knowledge of the authors, this topic has been analysed and discussed for the first time.

💡 Research Summary

The paper provides a comprehensive examination of the Derived Unique Key Per Transaction (DUKPT) key‑management scheme, traditionally used with symmetric algorithms such as 3DES, and evaluates its suitability for a range of modern mobile‑payment scenarios, with a particular focus on cloud or remote wallets. After a concise introduction to DUKPT—explaining how a master key and an initial key are used to derive a unique session key for every transaction based on a Key Serial Number (KSN) and a transaction counter—the authors define what constitutes a cloud wallet: a service where the user’s payment credentials are stored centrally in the cloud and accessed from multiple devices, while the backend server performs most of the cryptographic processing.

The core of the paper is a systematic analysis of five distinct use cases:

1. Mobile Banking Apps – The authors argue that DUKPT can add an extra layer of data‑at‑rest protection by generating a fresh encryption key for each operation. However, because most smartphones lack a dedicated hardware security module (HSM), the key‑seed must be protected in a Trusted Execution Environment (TEE) or Secure Enclave, and the key‑injection channel must be secured with strong mutual authentication and TLS.

2. NFC‑Based EMV Contactless Payments – In a typical contactless flow, the terminal and the mobile device exchange APDUs over a short‑range radio link. Applying DUKPT means each contactless transaction is encrypted with a newly derived key, which mitigates replay and man‑in‑the‑middle attacks. The trade‑off is additional processing latency; the paper recommends hardware acceleration or pre‑computation of a small window of future keys to keep user‑perceived latency below 150 ms.

3. Mobile EMV Card Emulation (Host Card Emulation, HCE) – Here the card logic resides on a remote server, while the handset merely forwards APDUs. The authors propose that the server host the DUKPT master key and generate per‑transaction session keys that encrypt the response payloads. This centralises the most sensitive key material, making the server’s HSM and multi‑factor access controls the single point of trust. If the server is compromised, all derived keys become vulnerable, so robust intrusion detection and key‑rollover policies are essential.

4. Web‑Browser Based Payments – Because browsers cannot reliably store a DUKPT seed, the paper suggests moving the DUKPT engine to the payment gateway. The gateway derives a unique key for each transaction, encrypts the payment data, and then transmits it over an already‑secured TLS channel. This double‑encryption approach provides defense‑in‑depth but increases the complexity of the gateway’s key‑management infrastructure.

5. Cloud/Remote Wallets – This is the paper’s primary contribution. The authors outline an architecture where each client device receives an individual key‑seed during provisioning (e.g., via an out‑of‑band secure channel). The cloud backend, equipped with an HSM, stores the master key and validates the KSN presented by each device. For every wallet operation—fund transfer, balance query, token generation—a fresh DUKPT session key is derived, used to encrypt the payload, and then discarded. The benefits are twofold: (a) compromise of a single device reveals only the keys derived from that device’s seed, limiting the attacker’s reach; (b) the backend can audit every transaction by correlating KSNs with timestamps, providing a tamper‑evident log. The authors also discuss practical challenges: secure seed provisioning, periodic seed rotation, handling lost or stolen devices, and ensuring that the cloud HSM can sustain the high transaction volume typical of wallet services.

Across all scenarios, the paper presents a matrix of security advantages (key‑non‑reuse, per‑transaction auditability, reduced blast radius on device loss) versus operational drawbacks (need for secure seed storage, added latency, increased server‑side complexity). The authors recommend a set of pre‑conditions for successful DUKPT deployment in mobile contexts: (i) leveraging device‑level TEEs or Secure Elements for seed protection; (ii) employing HSM‑backed master‑key storage on the server side; (iii) implementing automated key‑rollover and revocation mechanisms; (iv) ensuring compliance with existing standards such as EMVCo, PCI DSS, and ISO 15118 where applicable.

In conclusion, the paper asserts that DUKPT is technically viable for cloud wallets and other mobile‑payment use cases, provided that the surrounding ecosystem supplies strong hardware‑based trust anchors and rigorous operational processes. By delivering the first dedicated analysis of DUKPT in the context of cloud wallets, the authors fill a notable gap in the literature and lay a foundation for future research on performance optimisation, formal security proofs, and integration with emerging tokenisation frameworks.
