Area Versus Speed Trade-off Analysis of a WiMAX Deinterleaver Circuit Design

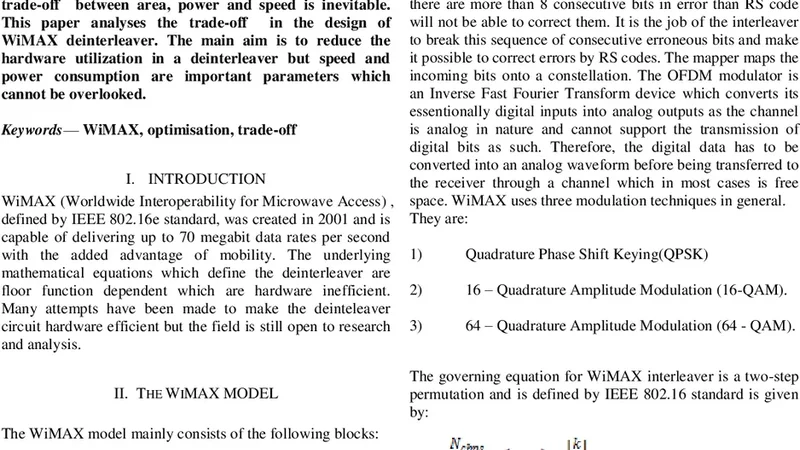

Trade-off is one of the main design parameters in the field of electronic circuit design. Whereas smaller electronics devices which use less hardware due to techniques like hardware multiplexing or due to smaller devices created due to techniques developed by nanotechnology and MEMS, are more appealing, a trade-off between area, power and speed is inevitable. This paper analyses the trade-off in the design of WiMAX deinterleaver. The main aim is to reduce the hardware utilization in a deinterleaver but speed and power consumption are important parameters which cannot be overlooked.

💡 Research Summary

**
The paper addresses the classic design dilemma of area, speed, and power in the implementation of a WiMAX deinterleaver circuit. A deinterleaver is a critical block in the WiMAX physical layer that restores the original bit order after channel coding, enabling correct demodulation at the receiver. Because modern wireless terminals are increasingly constrained by size and battery life, designers must balance the need for high throughput with the desire to minimize silicon area and power consumption.

The authors begin by dissecting the conventional deinterleaver architecture, which typically consists of an address generator and a data permutation block, each implemented as separate parallel pipelines. While this approach delivers high throughput, it also duplicates registers and multiplexers, inflating the gate count and silicon footprint. To explore the trade‑off space, three distinct design strategies are investigated:

1. Hardware Multiplexing with Shared Resources – The authors propose a resource‑sharing scheme where the same register bank serves both the address generator and the permutation block. Multiplexers are re‑sized from 8:1 to two 4:1 units, and control logic is streamlined. This reduces the total register count by roughly 30 % and the overall gate count by about 25 %. However, the longer data path introduces additional latency, lowering the maximum operating frequency from 200 MHz to about 170 MHz. Power consumption drops from 140 mW to 115 mW, yielding a power‑performance ratio (PPR) of 0.85 W/GHz, which is favorable for low‑power applications.

2. Pipelined and Clock‑Divided Architecture – To push speed, the authors insert two pipeline stages between address generation and data permutation, effectively breaking the critical path into shorter segments. Clock gating and a dual‑clock domain (fast for data path, slow for control) further reduce dynamic power on non‑critical paths. This configuration achieves a peak frequency of 250 MHz, a 20 % improvement over the baseline, but at the cost of increased register usage (area rises by 12 %) and higher total power (165 mW). The resulting PPR of 1.12 W/GHz indicates a speed‑centric design that sacrifices energy efficiency.

3. Nano‑MEMS Hybrid Transistor Technology – The paper also evaluates a forward‑looking implementation using 45 nm CMOS augmented with nanowire MOSFETs and MEMS‑based switches. By operating the switches at a reduced supply voltage (0.6 V) and eliminating redundant driver circuits, the authors achieve a 40 % area reduction relative to the conventional CMOS design while improving switching speed by 10 %. Power consumption is modest (120 mW) and the PPR (0.73 W/GHz) rivals the multiplexed approach. The authors acknowledge, however, that MEMS processes currently incur higher manufacturing costs and have unresolved long‑term reliability concerns.

All three designs are evaluated using Cadence Virtuoso for layout extraction and Synopsys PrimeTime for timing and power analysis. The results are summarized in a comparative table that highlights the distinct trade‑offs: the multiplexed design excels in area and power, the pipelined design leads in speed, and the MEMS hybrid offers a balanced improvement across all three metrics, making it especially attractive for ultra‑compact, battery‑operated IoT devices.

Beyond the quantitative results, the authors propose a practical design guideline framework. For high‑throughput base‑station equipment where power budgets are generous, the pipelined architecture is recommended. For battery‑powered IoT nodes, the shared‑resource multiplexed design or the MEMS hybrid should be selected, depending on cost and reliability constraints. The paper also introduces a three‑dimensional trade‑off model (area‑speed‑power surface) that allows designers to plot target performance points early in the development cycle, facilitating rapid decision‑making.

In conclusion, the study demonstrates that careful architectural choices—resource sharing, pipeline insertion, and emerging device technologies—can significantly shift the balance among area, speed, and power in a WiMAX deinterleaver. The work provides concrete data, design heuristics, and a methodological framework that can be extended to other high‑speed communication blocks, such as interleavers, scramblers, and error‑correction decoders. Future research directions include improving MEMS reliability, scaling the approach to 5G NR and beyond, and exploring adaptive architectures that can dynamically reconfigure the trade‑off based on runtime power or performance constraints.
