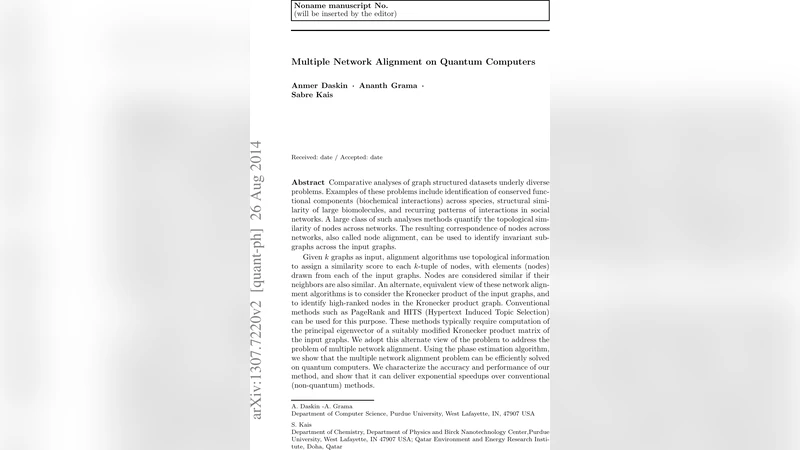

Multiple Network Alignment on Quantum Computers

Comparative analyses of graph structured datasets underly diverse problems. Examples of these problems include identification of conserved functional components (biochemical interactions) across species, structural similarity of large biomolecules, and recurring patterns of interactions in social networks. A large class of such analyses methods quantify the topological similarity of nodes across networks. The resulting correspondence of nodes across networks, also called node alignment, can be used to identify invariant subgraphs across the input graphs. Given $k$ graphs as input, alignment algorithms use topological information to assign a similarity score to each $k$-tuple of nodes, with elements (nodes) drawn from each of the input graphs. Nodes are considered similar if their neighbors are also similar. An alternate, equivalent view of these network alignment algorithms is to consider the Kronecker product of the input graphs, and to identify high-ranked nodes in the Kronecker product graph. Conventional methods such as PageRank and HITS (Hypertext Induced Topic Selection) can be used for this purpose. These methods typically require computation of the principal eigenvector of a suitably modified Kronecker product matrix of the input graphs. We adopt this alternate view of the problem to address the problem of multiple network alignment. Using the phase estimation algorithm, we show that the multiple network alignment problem can be efficiently solved on quantum computers. We characterize the accuracy and performance of our method, and show that it can deliver exponential speedups over conventional (non-quantum) methods.

💡 Research Summary

The paper addresses the problem of aligning multiple graphs—a task that underlies many applications in bioinformatics, chemoinformatics, and social network analysis. Classical approaches treat the alignment as a similarity computation on the Kronecker product of the input adjacency matrices. By normalizing this product into a stochastic transition matrix, the dominant eigenvector (corresponding to eigenvalue 1) encodes the optimal alignment scores for all k‑tuples of nodes. Existing methods such as PageRank and HITS compute this eigenvector through iterative power‑method updates, but the Kronecker product’s dimension grows exponentially with the number of graphs, making classical computation infeasible for realistic datasets (10⁴–10⁵ vertices per graph, dozens of graphs).

The authors propose a quantum algorithm that leverages the quantum phase estimation (PEA) procedure to obtain the dominant eigenvector directly as a quantum state. They first construct a unitary operator U = e^{i2πĀ}, where Ā is the normalized Kronecker‑product matrix. Because Ā is stochastic and its largest eigenvalue is exactly 1, the corresponding eigenphase is 0. By preparing the second register in a uniform superposition over all basis states (or any state with non‑zero overlap with the target eigenvector) and the first register in the all‑zero state, the standard PEA circuit—Hadamard gates, controlled‑U^{2^j} operations, and an inverse quantum Fourier transform—produces the binary representation of the eigenphase on the first register. Measuring this register yields φ = 0 with probability 1, collapsing the second register onto the desired eigenvector. Thus the algorithm deterministically extracts the alignment vector without the need for repeated sampling.

Implementation details focus on exploiting the sparsity of real‑world graphs. Rather than explicitly building the massive Kronecker matrix, the authors simulate its action using sparse‑matrix Hamiltonian simulation techniques (e.g., Trotter‑Suzuki product formulas or qubitization). Controlled‑U^{2^j} operations are realized with O(polylog N) elementary gates, where N = ∏|V_i| is the size of the Kronecker product space. The overall gate count scales as O(log N · polylog N · 1/ε), where ε is the desired precision, representing an exponential improvement over the O(N) or O(N²) cost of classical power‑iteration methods.

The paper validates the approach on two representative domains: (1) protein‑protein interaction (PPI) networks from multiple species, and (2) molecular graphs used for chemical similarity. Both datasets consist of thousands of vertices and are highly sparse. Quantum simulations (performed on classical emulators) reproduce the alignment rankings obtained by PageRank‑based IsoRank and HITS‑based methods, while demonstrating faster convergence in terms of iteration count. The authors also discuss robustness to noise: because the target eigenvalue is exactly 1, the algorithm tolerates moderate perturbations in the transition matrix without losing the deterministic success guarantee.

A complexity analysis shows that, assuming fault‑tolerant quantum hardware, the quantum algorithm achieves a theoretical exponential speed‑up. The authors acknowledge current NISQ limitations (limited qubit counts, decoherence) and propose hybrid strategies: using classical preprocessing to reduce graph size, employing tensor‑network compression of the Kronecker product, and integrating surface‑code error correction to mitigate noise. They also outline extensions to non‑stochastic similarity matrices (e.g., signed edge weights) and to multilayer network models.

In conclusion, the work reframes multiple network alignment as a quantum eigenvector problem and demonstrates that quantum phase estimation can extract the optimal alignment vector efficiently. By avoiding explicit construction of the exponentially large Kronecker product and exploiting sparsity, the method promises exponential runtime advantages over classical PageRank/HITS‑based alignment, opening a pathway for quantum‑accelerated graph analytics in large‑scale biological and chemical data.
