UML 2 Semantics Symposium: Formal Semantics for UML

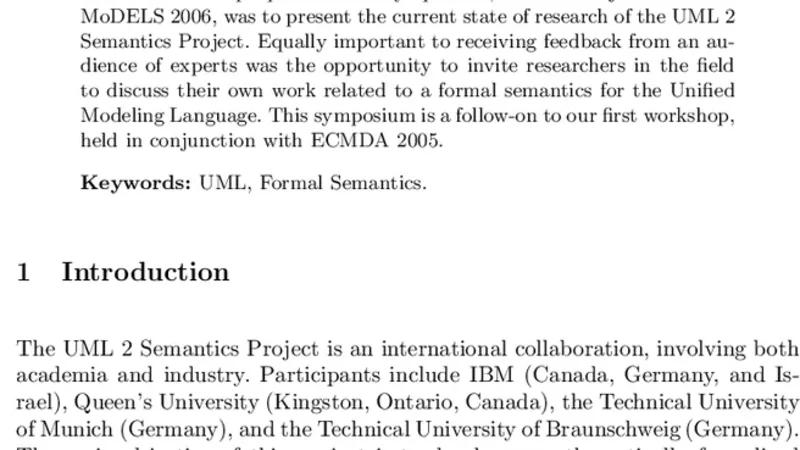

The purpose of this symposium, held in conjunction with MoDELS 2006, was to present the current state of research of the UML 2 Semantics Project. Equally important to receiving feedback from an audience of experts was the opportunity to invite researchers in the field to discuss their own work related to a formal semantics for the Unified Modeling Language. This symposium is a follow-on to our first workshop, held in conjunction with ECMDA 2005.

💡 Research Summary

The UML 2 Semantics Symposium, held in conjunction with the MoDELS 2006 conference, served as a comprehensive showcase of the current state of the UML 2 Semantics Project and a forum for gathering expert feedback. Building on the inaugural workshop presented at ECMDA 2005, the symposium invited a broad spectrum of researchers to discuss advances in formal semantics for the Unified Modeling Language and to outline future research challenges.

The opening session focused on the structural aspects of the UML 2 metamodel. Presenters detailed how core metamodel elements—such as classes, associations, and attributes—are rigorously defined using set‑theoretic and relational formalisms. By explicitly specifying mapping rules between the abstract metamodel and concrete model instances, the work establishes a foundation for automated consistency checks within model‑driven development tools. This formal grounding aims to eliminate ambiguities that have historically plagued UML specifications.

The second session turned to behavioral semantics, covering activity diagrams, state machines, and sequence diagrams. A token‑based approach inspired by Petri nets was introduced to capture concurrency, asynchronous messaging, and event propagation in a mathematically precise manner. This methodology resolves the loosely defined execution order present in the UML 2 standard and enables seamless integration with simulation and model‑checking tools. In parallel, the session highlighted the role of the Object Constraint Language (OCL) as a vehicle for expressing and automatically verifying model constraints. OCL expressions are translated into logical formulas that feed directly into verification engines, thereby supporting rigorous model validation.

The third session presented concrete implementations of metamodel‑to‑execution‑model mappings. Demonstrations showed how a formally defined metamodel can drive automatic code generators and model transformation pipelines. Critical to this process is the verification of mapping rules to prevent semantic loss during transformation, a step that underpins reliable model‑to‑code synchronization, reverse engineering, and model‑based test generation. The speakers emphasized that these mappings are not merely theoretical constructs but are intended for practical tool integration.

The concluding panel discussed open research issues and the roadmap ahead. Participants acknowledged that, while substantial progress has been made, the formal semantics of UML 2 remain in an early maturation phase. Bridging the gap between standardization efforts and tool support will require coordinated community initiatives, open‑source infrastructure, and extensive case studies. Moreover, the adoption of formal semantics in industry hinges on improved educational curricula and close collaboration with commercial partners to validate the approaches in real‑world projects.

Overall, the symposium highlighted the systematic formalization of UML 2 semantics, underscored the importance of rigorous mathematical foundations for model consistency, and charted a path toward robust model verification, transformation, and code generation capabilities that can be leveraged across both academic research and industrial practice.
