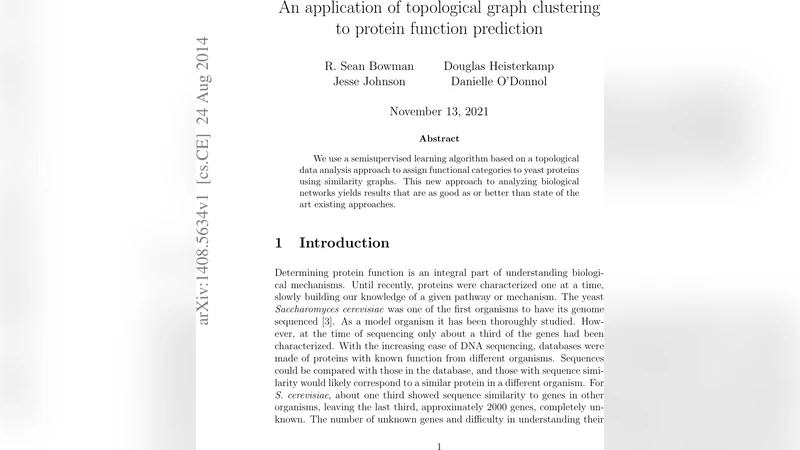

An application of topological graph clustering to protein function prediction

We use a semisupervised learning algorithm based on a topological data analysis approach to assign functional categories to yeast proteins using similarity graphs. This new approach to analyzing biological networks yields results that are as good as or better than state of the art existing approaches.

💡 Research Summary

The paper presents a novel semi‑supervised learning framework for predicting the functions of Saccharomyces cerevisiae proteins by exploiting topological graph clustering. The authors build on a topological data analysis technique called TILO/PRC (Topologically Intrinsic Lexicographic Ordering / Pinch Ratio Clustering). First, a similarity graph is constructed where vertices represent proteins and weighted edges encode various types of biological relationships: Pfam domain similarity, co‑participation in protein complexes, physical protein‑protein interactions, and genetic interactions. Five such adjacency matrices (W₁–W₅) are available; W₅ (gene‑expression similarity) is too sparse and omitted, while the remaining four are used both individually and as a simple arithmetic average to form an integrated graph.

TILO seeks a linear ordering of the vertices that minimizes a lexicographically ordered sequence of boundary sizes (the sum of edge weights crossing the cut between the first i vertices and the rest). By iteratively applying a “weak reducibility” operation, the algorithm converges to a strongly irreducible ordering. Local minima of the boundary sequence correspond to “pinch clusters,” subsets of vertices that have relatively few connections to the outside while being densely connected internally. These clusters are the core of the method: for each cluster that contains labeled proteins (known functional categories), the algorithm assigns the average label value to all unlabeled proteins in the same cluster, thereby propagating functional information through the graph structure. If a cluster contains no labeled vertices, the most frequent label in the whole dataset is assigned.

To mitigate the risk of getting trapped in sub‑optimal local minima, the authors employ a bagging strategy. They repeatedly sample a fraction λ (set to 0.5) of the unlabeled vertices without replacement, creating N = 25 bootstrap subsets. TILO/PRC is run on each subset, producing a probability estimate for every protein. The final prediction for each protein is the average of these estimates across all bootstrap runs, which reduces variance and prevents the pathological case where a protein would always receive the majority label.

The experimental protocol mirrors that of prior work (e.g., Lançriet et al., 2004; Deng et al., 2004). The dataset contains 3,588 yeast proteins annotated with 13 top‑level functional classes from the MIPS Comprehensive Yeast Genome Database. Each functional class is treated as an independent binary classification problem. Performance is evaluated using the Receiver Operating Characteristic (ROC) area under the curve, employing 5‑fold cross‑validation repeated three times.

Results show that TILO/PRC achieves mean ROC scores ranging from 0.767 to 0.896 on the individual graphs (W₁–W₄) and 0.844 to 0.908 on the integrated graph. Compared with a 1‑norm Support Vector Machine (SVM) applied to W₁, a semidefinite programming (SDP)‑based SVM that fuses multiple graphs, and a Markov Random Field (MRF) model, the TILO approach is competitive and often superior. For example, on the Pfam‑domain graph (W₁) TILO’s average ROC exceeds the SVM’s by roughly 0.02–0.03, while maintaining comparable variance. On the integrated graph, TILO’s ROC of 0.844 is close to the SDP/SVM’s 0.853 and the MRF’s 0.882, despite using only a simple average of the five similarity matrices rather than a learned weighted combination.

The authors argue that topological methods like TILO/PRC are especially suited to protein function prediction because (1) they have a solid theoretical foundation linking topology and clustering, (2) they operate directly on interaction graphs without requiring embedding into Euclidean space, (3) they are less sensitive to geometric distortions that often plague high‑dimensional biological data, and (4) they scale reasonably to large networks. Limitations include reduced effectiveness on extremely sparse or highly fragmented graphs (isolated vertices are excluded) and the absence of an explicit weight‑learning step, which could potentially improve performance further.

In conclusion, the paper demonstrates that a topology‑driven semi‑supervised clustering algorithm can reliably infer protein functions from heterogeneous biological networks, achieving results on par with or better than state‑of‑the‑art machine‑learning methods. Future work is suggested to incorporate weight optimization, extend the method to multi‑label scenarios, and test its generality on other organisms and larger datasets.
