2D View Aggregation for Lymph Node Detection Using a Shallow Hierarchy of Linear Classifiers

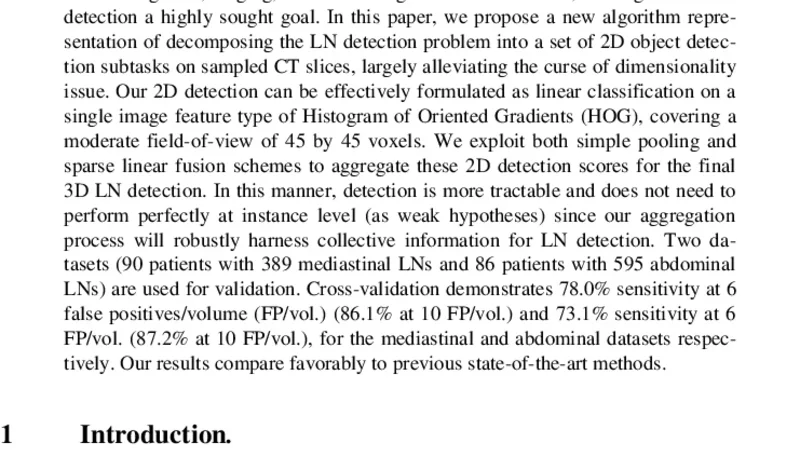

Enlarged lymph nodes (LNs) can provide important information for cancer diagnosis, staging, and measuring treatment reactions, making automated detection a highly sought goal. In this paper, we propose a new algorithm representation of decomposing the LN detection problem into a set of 2D object detection subtasks on sampled CT slices, largely alleviating the curse of dimensionality issue. Our 2D detection can be effectively formulated as linear classification on a single image feature type of Histogram of Oriented Gradients (HOG), covering a moderate field-of-view of 45 by 45 voxels. We exploit both simple pooling and sparse linear fusion schemes to aggregate these 2D detection scores for the final 3D LN detection. In this manner, detection is more tractable and does not need to perform perfectly at instance level (as weak hypotheses) since our aggregation process will robustly harness collective information for LN detection. Two datasets (90 patients with 389 mediastinal LNs and 86 patients with 595 abdominal LNs) are used for validation. Cross-validation demonstrates 78.0% sensitivity at 6 false positives/volume (FP/vol.) (86.1% at 10 FP/vol.) and 73.1% sensitivity at 6 FP/vol. (87.2% at 10 FP/vol.), for the mediastinal and abdominal datasets respectively. Our results compare favorably to previous state-of-the-art methods.

💡 Research Summary

The paper addresses the clinically important task of automatically detecting enlarged lymph nodes (LNs) in computed tomography (CT) scans, which are valuable for cancer staging, diagnosis, and treatment monitoring. Traditional three‑dimensional (3D) detection pipelines suffer from the “curse of dimensionality”: they must process thousands of voxels simultaneously, which demands large annotated datasets and incurs high computational cost. To mitigate these issues, the authors propose a novel framework that decomposes the 3D detection problem into a large collection of two‑dimensional (2D) object‑detection subtasks, each operating on a single CT slice sampled from a candidate volume.

Method Overview

Candidate Generation – A coarse 3D pre‑screening step (intensity thresholds, anatomical masks) extracts a manageable set of volumetric regions that may contain LNs.
2D View Sampling – Each 3D candidate is sliced at multiple positions and orientations, producing 2D patches of fixed size (45 × 45 voxels, roughly 2 cm × 2 cm). This field‑of‑view is large enough to capture the LN and its immediate context while remaining computationally cheap.
Feature Extraction – For every 2D patch, a Histogram of Oriented Gradients (HOG) descriptor is computed. HOG efficiently encodes edge and gradient information, which is highly discriminative for the relatively well‑defined boundaries of lymph nodes in CT.
Shallow Linear Classification – A linear Support Vector Machine (or L1‑regularized linear regression) is trained on the HOG vectors, yielding a weak hypothesis (a scalar confidence score) for each view. Because the classifier is linear, training is fast, memory‑light, and less prone to over‑fitting given limited data.
Score Aggregation – The multitude of view‑level scores must be combined into a single decision for the original 3D candidate. Two aggregation strategies are explored:
- Simple Pooling – either the maximum score (max‑pool) or the arithmetic mean (average‑pool) across all views.
- Sparse Linear Fusion – a learned weighted sum where the weights are constrained by an L1 penalty, encouraging sparsity. This approach automatically discards uninformative views and yields an interpretable set of contributing slices.

The key insight is that individual 2D detections do not need to be perfect; the ensemble of many weak hypotheses can robustly recover the true 3D LN locations. This “weak‑hypothesis aggregation” paradigm is reminiscent of boosting but is implemented with a far simpler, non‑iterative pipeline.

Experimental Validation
The authors evaluate the method on two independent clinical datasets:

Mediastinal set – 90 patients, 389 annotated LNs.
Abdominal set – 86 patients, 595 annotated LNs.

A k‑fold cross‑validation protocol is used. Performance is reported as sensitivity (true positive rate) at fixed false‑positive rates per volume (FP/vol). Results are:

Mediastinal: 78.0 % sensitivity at 6 FP/vol, rising to 86.1 % at 10 FP/vol.
Abdominal: 73.1 % sensitivity at 6 FP/vol, rising to 87.2 % at 10 FP/vol.

These figures compare favorably with state‑of‑the‑art 3D convolutional neural networks and multi‑scale hand‑crafted feature approaches, many of which require substantially more computation and larger training sets.

Strengths and Contributions

Dimensionality Reduction – By operating on 2D slices, the method sidesteps the high‑dimensional feature space of full 3D volumes, enabling effective learning from relatively modest datasets.
Computational Efficiency – HOG extraction and linear classification are lightweight; the entire pipeline can be run on standard CPUs without GPU acceleration.
Robustness via Aggregation – The sparse fusion step not only improves detection accuracy but also yields interpretable weights, indicating which views are most informative.
Scalability – Adding more views (different orientations or offsets) is straightforward and does not dramatically increase training complexity, because each view is processed independently.

Limitations and Future Directions

Loss of 3D Context – The current framework treats each slice independently, ignoring spatial continuity that could be exploited by 3D CNNs or recurrent models. Incorporating sequential modeling (e.g., RNNs, Transformers) over the ordered views could capture inter‑slice relationships.
Feature Expressiveness – HOG, while robust, may struggle with low‑contrast or highly heterogeneous nodes. Replacing or augmenting HOG with deep learned features (e.g., ResNet‑based embeddings) could boost discriminative power.
Candidate Generation Bottleneck – The initial 3D pre‑screening step still determines the upper bound of recall. More sophisticated region proposal networks or multi‑modal (CT + PET) cues could improve candidate coverage.
Generalization to Other Anatomical Sites – The method is demonstrated on mediastinal and abdominal LNs; extending to cervical or pelvic nodes would test its adaptability to varying anatomy and imaging protocols.

Conclusion
The study introduces a pragmatic yet powerful approach to lymph‑node detection that leverages 2D view aggregation and shallow linear classifiers. By converting a high‑dimensional detection problem into many low‑dimensional sub‑problems and then fusing their outputs, the authors achieve high sensitivity with low false‑positive rates while keeping computational demands modest. The framework’s simplicity, interpretability, and competitive performance make it an attractive alternative to heavyweight 3D deep‑learning systems, especially in settings where annotated data are scarce or computational resources are limited. Future work that integrates richer 3D context, deep feature representations, and multi‑modal information promises to further enhance the clinical utility of automated LN detection.
