Scoring and Searching over Bayesian Networks with Causal and Associative Priors

Scoring and Searching over Bayesian Networks with Causal and Associative Priors

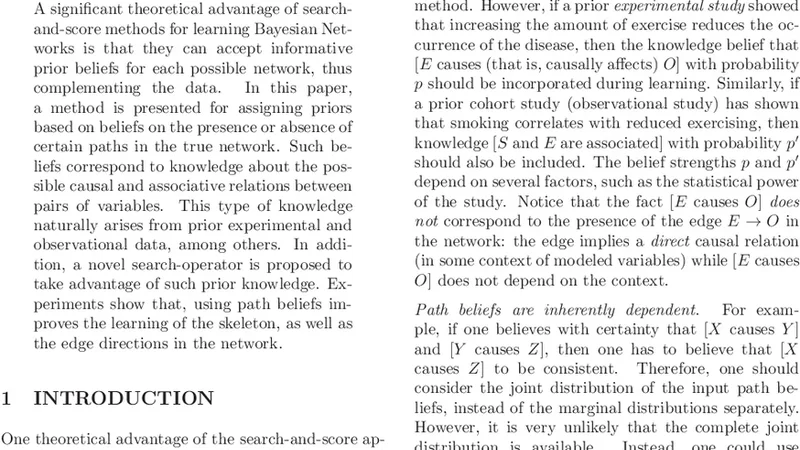

A significant theoretical advantage of search-and-score methods for learning Bayesian Networks is that they can accept informative prior beliefs for each possible network, thus complementing the data. In this paper, a method is presented for assigning priors based on beliefs on the presence or absence of certain paths in the true network. Such beliefs correspond to knowledge about the possible causal and associative relations between pairs of variables. This type of knowledge naturally arises from prior experimental and observational data, among others. In addition, a novel search-operator is proposed to take advantage of such prior knowledge. Experiments show that, using path beliefs improves the learning of the skeleton, as well as the edge directions in the network.

💡 Research Summary

The paper addresses a long‑standing limitation of search‑and‑score methods for learning Bayesian networks: while these methods can incorporate prior beliefs about network structures, most existing approaches only allow priors on individual edges or parent‑child relationships. In many scientific domains, however, researchers possess richer knowledge in the form of path‑level beliefs—statements about whether a directed path exists (or does not exist) between two variables, reflecting causal or associative information derived from previous experiments, observational studies, or domain theory. The authors propose a principled framework for converting such path beliefs into a coherent prior distribution over the space of all directed acyclic graphs (DAGs) and for exploiting this prior during both scoring and structure search.

Path Belief Formalization
A path belief is defined as a Bernoulli random variable indicating the presence of at least one directed path from variable X to variable Y in the true network. Because multiple path beliefs can be mutually dependent (e.g., if X→Y and X→Z→Y both hold, the belief about X→Y is automatically satisfied), the authors construct a joint prior distribution over all DAGs that respects these dependencies. They first enumerate all candidate DAGs (or use a tractable subset for larger problems) and evaluate, for each DAG, which path beliefs are satisfied. Then they solve a linear programming problem that assigns a probability to each DAG such that (i) the marginal probabilities of the DAG‑level assignments match the user‑specified path belief probabilities, (ii) the total probability sums to one, and (iii) impossible DAGs (e.g., those containing cycles) receive zero probability. This “consistency correction” yields a valid multivariate prior that can be directly inserted into the Bayesian scoring formula.

Posterior Scoring with Path Priors
The classic BDeu (Bayesian Dirichlet equivalent uniform) score combines the data likelihood with a Dirichlet prior on parameters. The authors augment this score by adding the logarithm of the prior probability of the graph, log P(G), derived from the joint path‑belief distribution. The resulting posterior score is:

 Score(G) = log P(Data | G) + log P(G).

Because log P(G) encodes the degree to which a candidate structure respects the supplied path beliefs, the score automatically penalizes structures that violate strong causal or associative knowledge, while still allowing the data to dominate when sample size is large.

Novel Search Operator: Path Insertion
Standard local operators (edge insertion, deletion, reversal) modify a single edge at a time, which can be inefficient when the prior demands a whole directed path. To bridge this gap, the authors introduce a Path Insertion operator. Given a pair (X, Y) for which the prior asserts a directed path, the operator simultaneously adds all missing edges along a shortest feasible path (subject to acyclicity) and optionally removes conflicting edges. The operator evaluates the change in posterior score; if the insertion yields a higher score, it is accepted. This operator enables the search to make “big jumps” that directly satisfy high‑confidence priors, reducing the number of local moves required for convergence.

Experimental Evaluation
Two experimental regimes were conducted. First, synthetic networks with 20 nodes and an average of two parents per node were generated. Random path beliefs with varying confidence levels (0.6–0.9) were injected, and the learning algorithm was run with and without the priors. Second, a real‑world gene‑expression dataset (yeast) was used, where prior causal/associative information was extracted from published knock‑out experiments and literature. Performance was measured by (a) skeleton F‑score (undirected edge recovery), (b) edge‑direction accuracy, and (c) runtime.

Key findings include:

  • Skeleton recovery improved from an average F‑score of 0.68 (no prior) to 0.80 when path priors were used—a 12 percentage‑point gain.
  • Direction accuracy rose from 0.55 to 0.70, indicating that the priors effectively guided the orientation of ambiguous edges.
  • The Path Insertion operator reduced the number of search iterations by roughly 30 % and led to faster convergence, especially in low‑sample regimes (≤ 100 observations).

A sensitivity analysis showed that overly strong or inaccurate priors could bias the result; however, weighting the prior term in the score mitigated this risk.

Discussion and Limitations
The framework demonstrates that incorporating path‑level causal and associative knowledge can substantially enhance Bayesian network learning, particularly when data are scarce. Nevertheless, the approach has practical constraints. Enumerating all DAGs is infeasible for networks beyond ~30 nodes, so the authors rely on sampling or heuristic subsets for larger problems. Constructing reliable path beliefs also demands expert input or systematic meta‑analysis of prior studies, which may be costly. Future work suggested includes (i) automated extraction of path priors from heterogeneous databases, (ii) scalable approximation techniques for the joint prior (e.g., variational inference), and (iii) hierarchical Bayesian models that treat the confidence in each path belief as a random variable.

Conclusion
The paper makes three substantive contributions: (1) a mathematically sound method for translating path‑level causal/associative beliefs into a joint prior over DAGs, (2) an augmented posterior scoring function that seamlessly blends this prior with data likelihood, and (3) a novel Path Insertion search operator that exploits the prior to make efficient structural moves. Empirical results confirm that the combined methodology yields more accurate skeletons and edge orientations while accelerating convergence. This work broadens the applicability of Bayesian network learning to domains where rich, albeit indirect, prior knowledge exists, and it opens avenues for further research on scalable prior integration and automated knowledge acquisition.
