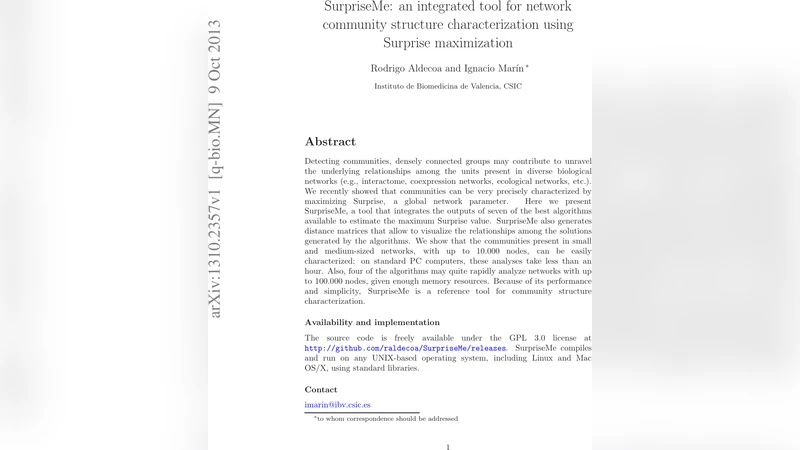

SurpriseMe: an integrated tool for network community structure characterization using Surprise maximization

Detecting communities, densely connected groups may contribute to unravel the underlying relationships among the units present in diverse biological networks (e.g., interactome, coexpression networks, ecological networks, etc.). We recently showed that communities can be very precisely characterized by maximizing Surprise, a global network parameter. Here we present SurpriseMe, a tool that integrates the outputs of seven of the best algorithms available to estimate the maximum Surprise value. SurpriseMe also generates distance matrices that allow to visualize the relationships among the solutions generated by the algorithms. We show that the communities present in small and medium-sized networks, with up to 10.000 nodes, can be easily characterized: on standard PC computers, these analyses take less than an hour. Also, four of the algorithms may quite rapidly analyze networks with up to 100.000 nodes, given enough memory resources. Because of its performance and simplicity, SurpriseMe is a reference tool for community structure characterization.

💡 Research Summary

The paper introduces SurpriseMe, an integrated software package designed to identify and characterize community structure in complex networks by maximizing the global quality metric known as Surprise (S). Surprise quantifies how unlikely it is to observe the number of intra‑community links found in a given partition when compared to a random graph, using a cumulative hypergeometric distribution; higher S values indicate partitions that better reflect true community organization.

SurpriseMe automates the workflow by accepting a simple edge list (tab‑ or space‑separated node pairs) as input, converting it into the appropriate formats for seven state‑of‑the‑art community detection algorithms—CPM, Infomap, Reichardt‑Bornholdt (RB), RN, RNSC, SCluster, and UVCluster—and running each algorithm sequentially. For every resulting partition, the program computes the corresponding Surprise value and records it. The partition with the maximal S is reported as the optimal solution, while the user may optionally restrict the analysis to a subset of the algorithms.

Beyond selecting the best partition, SurpriseMe evaluates the similarity among all generated solutions using two information‑theoretic distances: Variation of Information (VI) and 1‑Normalized Mutual Information (1‑NMI). It outputs two distance matrices that can be directly imported into visualization tools such as MEGA, allowing researchers to explore hierarchical relationships and consensus among the algorithms. Additionally, the software computes distances to two artificial reference partitions—“One” (all nodes in a single community) and “Singles” (each node in its own community)—providing further insight into each algorithm’s bias toward merging or splitting communities.

Performance was benchmarked on two synthetic datasets: Relaxed Caveman (RC) networks, which contain well‑defined communities, and Erdős‑Rényi (ER) random graphs, which lack community structure. For networks up to 10 000 nodes, running all seven algorithms required less than one hour on a standard desktop PC and consumed under 1 GB of RAM. Scaling to 50 000‑node RC networks with the full algorithm set demanded roughly 140 hours and 60 GB of memory; however, limiting the analysis to the four fastest methods (excluding RN, SCluster, and UVCluster) reduced runtime dramatically to about 40 minutes with 14 GB of RAM for RC graphs, and to 8 hours with 39 GB for ER graphs. Similar reductions were observed for 100 000‑node networks, where the four‑algorithm configuration completed within a few hours given sufficient memory.

The authors acknowledge that SurpriseMe is not yet suited for extremely large networks (>100 000 nodes) when all seven algorithms are employed, due to computational and memory constraints, and that a dedicated algorithm for directly maximizing Surprise remains absent. Nevertheless, the complementary strengths of the selected algorithms—each performing best on different network topologies—ensure that even a reduced set often yields near‑optimal Surprise values.

In summary, SurpriseMe provides a user‑friendly, reproducible pipeline that combines multiple high‑quality community detection methods, evaluates them with a robust statistical metric, and supplies detailed inter‑solution distance information. Its ease of use (single‑file input, automatic execution) and comprehensive output make it a valuable reference tool for researchers across biology, neuroscience, ecology, and any field that relies on network‑based analyses of community structure.
