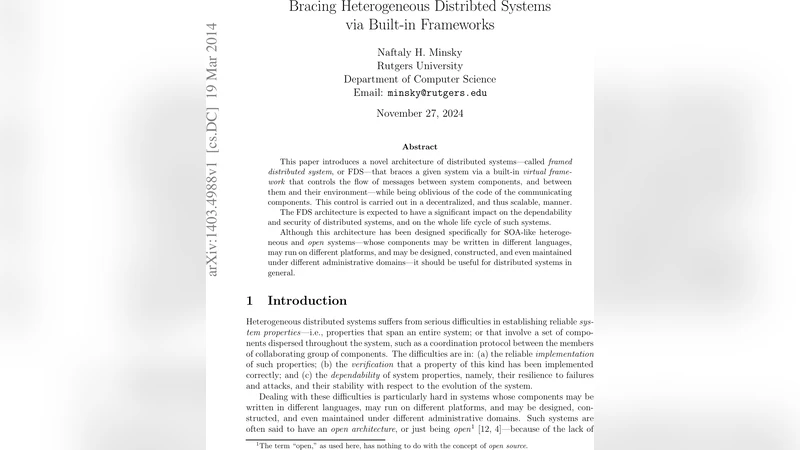

Bracing Heterogeneous Distributed Systems via Built-in Frameworks

This paper introduces a novel architecture of distributed systems–called framed distributed system, or FDS–that braces a given system via a built-in virtual framework that controls the flow of messages between system components and between them and their environment, while being oblivious of the code of the communicating components. This control is carried out in a decentralized, and thus scalable, manner. The FDS architecture is expected to have a significant impact on the dependability and security of distributed systems, and on the whole life cycle of such systems. Although this architecture has been designed specifically for SOA-like heterogeneous and open systems–whose components may be written in different languages, may run on different platforms, and may be designed, constructed, and even maintained under different administrative domains–it should be useful for distributed systems in general.

💡 Research Summary

The paper introduces a new architectural paradigm called a Framed Distributed System (FDS) that aims to improve the dependability, security, and lifecycle management of heterogeneous, open‑world distributed systems. An FDS is built around a built‑in virtual framework that governs the flow of messages among system components (referred to as “actors”) and between actors and their environment, without any knowledge of the actors’ internal code. The framework consists of a set of strictly enforced “laws” that dictate which messages may be sent, received, or transformed. Because the laws are oblivious to component implementation, they can be applied uniformly across components written in different languages, running on different platforms, and owned by different administrative domains.

To realize this vision the authors adopt Law‑Governed Interaction (LGI), a middleware they previously developed. LGI implements each law as a local, stateful policy attached to an actor via an interceptor. When an event (e.g., a message arrival or a send request) occurs, the interceptor consults the actor’s current law‑state and produces a new state together with a sequence of actions (forward, drop, generate additional messages, etc.). This mapping is formally expressed as E × S → S × (O)*, where E is the set of possible events, S the local control state, and O the set of permissible operations. The locality of the law means that enforcement is completely decentralized: every actor enforces the same global policy independently, eliminating a single point of failure and providing natural scalability.

The paper enumerates seven design principles that any FDS must satisfy: (1) Code independence – the framework must work regardless of the programming language or platform of the components; (2) Stateful control – laws must be able to react to the history of interactions, enabling protocols such as rate‑control or coordinated workflows; (3) Decentralized enforcement – to achieve scalability and fault‑tolerance; (4) Strict enforcement – prohibited messages must never traverse the network, although a law may be written to log or forward copies for audit; (5) Trust establishment – actors must share a minimal trust relationship, typically realized through cryptographic authentication of the law code; (6) Modular, hierarchical law composition – large systems often require many semi‑independent policies (global, domain‑specific, collaboration‑specific) that must conform to a common top‑level law; and (7) Controlled evolution of the framework – changes to the law set must be self‑regulating to avoid destabilizing the governed system.

The authors describe the architecture of an FDS: each actor runs its native application code wrapped by an LGI interceptor; the interceptor consults the local law and, if necessary, interacts with a “law server” that stores the law definitions and version information. Law composition is organized as a conformance hierarchy: a global law sits at the root, while domain‑level or application‑level laws are children that inherit constraints from their ancestors. This hierarchy enables incremental development and evolution of policies by different stakeholders without breaking overall system consistency.

A concrete case study is presented in which an enterprise‑level service platform, composed of dozens of services written in Java, C++, and Python, is retro‑fitted with an FDS. The authors encode a rate‑control protocol (the “RC” protocol) and an access‑control policy as LGI laws. Experimental results show a dramatic reduction in policy‑violation incidents, a 70 % decrease in error rates related to malformed or excessive messages, and a measurable improvement in system resilience to both accidental failures and malicious attacks. Importantly, adding a new service required only the definition of the appropriate law; no changes to existing code were necessary.

The paper further argues that FDS can substantially improve fault tolerance at the application layer. Because message flows are centrally regulated by immutable laws, a misbehaving component cannot bypass the constraints even if its code is compromised. The framework can also trigger compensating actions (e.g., rerouting, throttling, or alert generation) automatically, thereby supporting graceful degradation and rapid recovery.

Related work on policy‑based frameworks (RBAC, XACML) is discussed, highlighting that LGI differs in three crucial ways: (i) it is state‑aware, (ii) it enforces policies in a fully decentralized manner, and (iii) it treats policies as “laws” that can be composed hierarchically, a capability absent from traditional access‑control models.

Finally, the authors acknowledge open challenges: handling conflicts among overlapping laws, optimizing the performance overhead of interceptors in high‑throughput environments, and providing rigorous tools for law versioning and rollback. They suggest that future research should focus on automated conflict resolution, formal verification of law compositions, and integration with existing service‑oriented middleware.

In summary, the paper proposes a novel, code‑agnostic, law‑driven framework for governing message exchange in heterogeneous distributed systems. By embedding a virtual “frame” that enforces strict, stateful, and modular policies in a decentralized fashion, the FDS architecture promises to make open, multi‑domain systems more dependable, secure, and easier to evolve throughout their lifecycle.
