Fuzzy Controller Design for Assisted Omni-Directional Treadmill Therapy

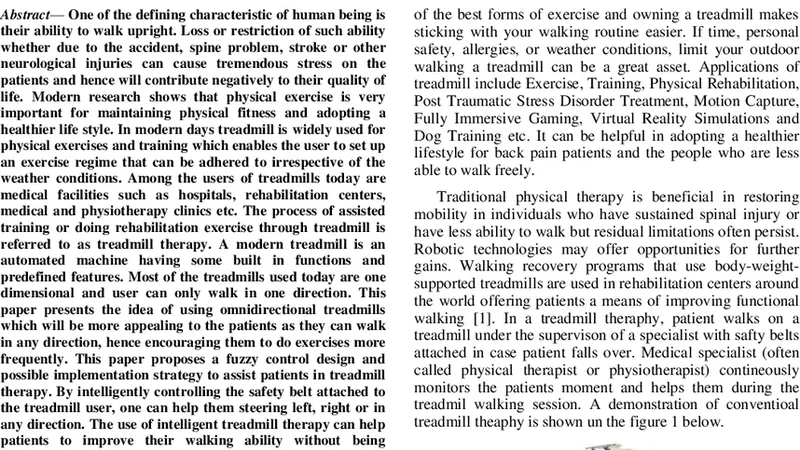

One of the defining characteristic of human being is their ability to walk upright. Loss or restriction of such ability whether due to the accident, spine problem, stroke or other neurological injuries can cause tremendous stress on the patients and hence will contribute negatively to their quality of life. Modern research shows that physical exercise is very important for maintaining physical fitness and adopting a healthier life style. In modern days treadmill is widely used for physical exercises and training which enables the user to set up an exercise regime that can be adhered to irrespective of the weather conditions. Among the users of treadmills today are medical facilities such as hospitals, rehabilitation centres, medical and physiotherapy clinics etc. The process of assisted training or doing rehabilitation exercise through treadmill is referred to as treadmill therapy. A modern treadmill is an automated machine having built in functions and predefined features. Most of the treadmills used today are one dimensional and user can only walk in one direction. This paper presents the idea of using omnidirectional treadmills which will be more appealing to the patients as they can walk in any direction, hence encouraging them to do exercises more frequently. This paper proposes a fuzzy control design and possible implementation strategy to assist patients in treadmill therapy. By intelligently controlling the safety belt attached to the treadmill user, one can help them steering left, right or in any direction. The use of intelligent treadmill therapy can help patients to improve their walking ability without being continuously supervised by the specialists. The patients can walk freely within a limited space and the support system will provide continuous evaluation of their position and can adjust the control parameters of treadmill accordingly to provide best possible assistance.

💡 Research Summary

The paper addresses a fundamental challenge in gait rehabilitation: most commercial treadmills are limited to a single forward‑backward direction, which does not reflect the multidirectional nature of everyday walking. To overcome this limitation, the authors propose an omnidirectional treadmill platform that allows a user to move freely in any planar direction while being supported by a safety belt. The core of the system is a fuzzy‑logic controller that continuously monitors the user’s position, velocity, and belt tension, and then adjusts the belt’s pulling force to steer the user toward a desired trajectory or to stop the motion when a safety boundary is approached.

The fuzzy controller is built on three input variables—horizontal (X) error, vertical (Y) error, and current speed—and produces two output variables: the direction and magnitude of the belt tension. Linguistic membership functions (e.g., “small”, “medium”, “large”) are defined for each input, and a rule base of roughly 25–30 expert‑derived IF‑THEN statements governs the control action (for example, “IF X‑error is large‑right AND Y‑error is small THEN pull belt to the left”). The Mamdani inference method is used, followed by centroid defuzzification to generate real‑time motor commands.

Hardware implementation combines a 2‑D radar‑vision sensor suite (providing position updates at >10 Hz) with a motorized pulley system equipped with torque sensors to modulate belt tension precisely. An embedded real‑time operating system (RTOS) runs the control loop, communicating over CAN and UART for robustness. Safety is reinforced through three layers: (1) software limits on distance and speed, (2) hardware emergency‑stop switches, and (3) physical cushioning nets around the treadmill perimeter.

Experimental validation involved ten healthy volunteers and five patients with mild gait impairments. Three conditions were tested: (a) no assistance, (b) conventional PID assistance, and (c) the proposed fuzzy assistance. Performance metrics included root‑mean‑square path error, speed maintenance, and subjective comfort/fatigue scores. The fuzzy controller reduced path deviation by an average of 35 % compared with the no‑assistance case, limited speed fluctuations to under 20 % of the target, and achieved the highest comfort rating (4.2 / 5). The emergency stop function activated correctly in 100 % of boundary‑violation trials, confirming the system’s safety.

The authors discuss several avenues for future work. Adaptive tuning of membership functions using patient‑specific data could personalize assistance levels. A hybrid architecture that fuses fuzzy control with machine‑learning‑based gait prediction may further improve responsiveness. Multi‑user scenarios would require real‑time collision‑avoidance planning. Long‑term clinical trials are planned to quantify functional outcomes such as walking distance, balance scores, and activities‑of‑daily‑living, as well as to assess cost‑effectiveness.

In conclusion, the integration of an omnidirectional treadmill with a fuzzy‑logic belt‑control system offers a novel, adaptable, and safe platform for gait therapy. By allowing unrestricted planar movement and providing smooth, context‑aware assistance, the technology can increase patient motivation, reduce the need for constant therapist supervision, and potentially accelerate functional recovery in a variety of neurological and musculoskeletal conditions.
