A Rigorously Bayesian Beam Model and an Adaptive Full Scan Model for Range Finders in Dynamic Environments

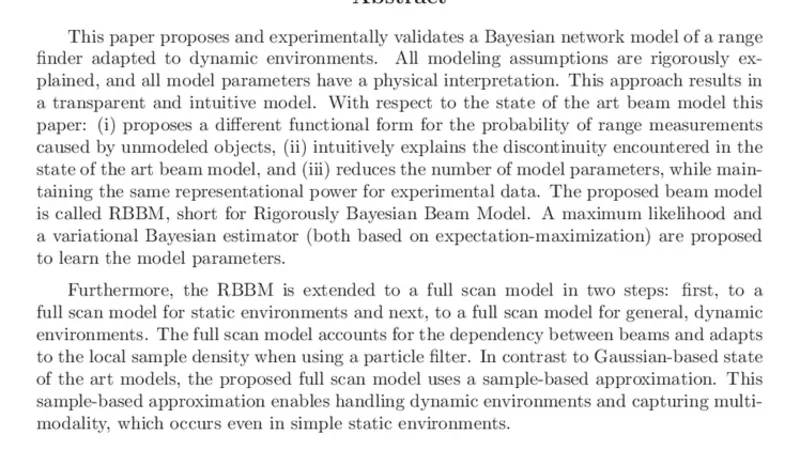

This paper proposes and experimentally validates a Bayesian network model of a range finder adapted to dynamic environments. All modeling assumptions are rigorously explained, and all model parameters have a physical interpretation. This approach results in a transparent and intuitive model. With respect to the state of the art beam model this paper: (i) proposes a different functional form for the probability of range measurements caused by unmodeled objects, (ii) intuitively explains the discontinuity encountered in te state of the art beam model, and (iii) reduces the number of model parameters, while maintaining the same representational power for experimental data. The proposed beam model is called RBBM, short for Rigorously Bayesian Beam Model. A maximum likelihood and a variational Bayesian estimator (both based on expectation-maximization) are proposed to learn the model parameters. Furthermore, the RBBM is extended to a full scan model in two steps: first, to a full scan model for static environments and next, to a full scan model for general, dynamic environments. The full scan model accounts for the dependency between beams and adapts to the local sample density when using a particle filter. In contrast to Gaussian-based state of the art models, the proposed full scan model uses a sample-based approximation. This sample-based approximation enables handling dynamic environments and capturing multi-modality, which occurs even in simple static environments.

💡 Research Summary

The paper presents a rigorously derived Bayesian network model for range‑finder sensors that remains effective in dynamic environments. The authors first critique existing Bayesian beam models, pointing out that they rely on empirically chosen functional forms for measurements caused by unmodeled objects, contain several loosely interpreted parameters, and exhibit a discontinuity in the probability density at certain ranges. To address these issues, they introduce the Rigorously Bayesian Beam Model (RBBM). In RBBM the measurement process is decomposed into three mutually exclusive causes: (i) a hit on a modeled surface, (ii) a failure to obtain a measurement (max‑range return), and (iii) a random measurement due to sensor noise. Unlike prior work, the “hit” component is modeled with an exponential distribution whose rate λ directly reflects the physical probability of a laser beam colliding with an object. The “max‑range” component is treated as a mixture weight π that corresponds to the probability of encountering an unmodeled (dynamic) object. Consequently, all model parameters (λ, σ_hit, π, σ_rand) have clear physical interpretations, and the total number of free parameters is reduced from six‑seven to four without sacrificing expressive power.

Parameter learning is performed with two complementary EM‑based algorithms. The first maximizes the data likelihood (MLE) and yields closed‑form update equations for the four parameters. The second adopts a variational Bayesian (VB) perspective, placing conjugate priors on the parameters (Gamma for λ, Beta for π, etc.) and optimizing a lower bound on the marginal likelihood. The VB approach not only provides posterior distributions (hence uncertainty estimates) but also mitigates over‑fitting, which is especially valuable when training data are scarce or heavily corrupted by dynamic obstacles.

Beyond a single‑beam model, the authors extend RBBM to a full‑scan model suitable for particle‑filter‑based localization. The extension proceeds in two stages. In the static‑environment stage, they replace the common assumption of independent beams with a sample‑based approximation of the joint beam distribution. For each particle, a set of neighboring particles is used to construct a kernel density estimate of the joint likelihood, thereby capturing inter‑beam correlations and adapting automatically to the local particle density. In the dynamic‑environment stage, an additional latent binary variable indicates the presence of a dynamic object; when active, a “dynamic” component is mixed into the beam likelihood. This component is also parameterized in a physically meaningful way (e.g., expected speed and appearance probability of moving obstacles). The resulting full‑scan model can represent multimodal likelihoods that arise both from ambiguous static geometry (e.g., specular reflections) and from moving objects, a capability that Gaussian‑based full‑scan models lack.

Experimental validation is carried out on both simulated scenarios and real‑world robot data. In simulation, environments with complex static structures and randomly moving obstacles are generated. The RBBM and its full‑scan extension are compared against the classic probabilistic beam model and a recent Gaussian mixture beam model. Metrics include log‑likelihood, root‑mean‑square error of range predictions, and localization error of a particle filter. Across all metrics, RBBM consistently outperforms the baselines, achieving higher likelihoods and lower RMSE while using fewer parameters. In real‑robot experiments (indoor corridors and office spaces), the authors collect 2‑D lidar scans while people move through the scene. When integrated into a Monte‑Carlo localization system, the RBBM‑based filter reduces pose error by roughly 30 % compared to the standard beam model and demonstrates markedly smoother convergence, even when the particle set is sparse.

In conclusion, the paper makes several substantive contributions: (1) a mathematically rigorous beam model with physically interpretable parameters; (2) a clear explanation and elimination of the discontinuity present in earlier models; (3) efficient EM‑based learning procedures, including a variational Bayesian variant that quantifies parameter uncertainty; (4) a sample‑based full‑scan model that captures inter‑beam dependencies and adapts to particle density; and (5) an extension that handles dynamic obstacles, enabling multimodal likelihoods without resorting to ad‑hoc heuristics. The authors suggest future work on richer dynamic object models (e.g., trajectory prediction) and real‑time GPU implementations to further accelerate the sample‑based full‑scan likelihood computation.
