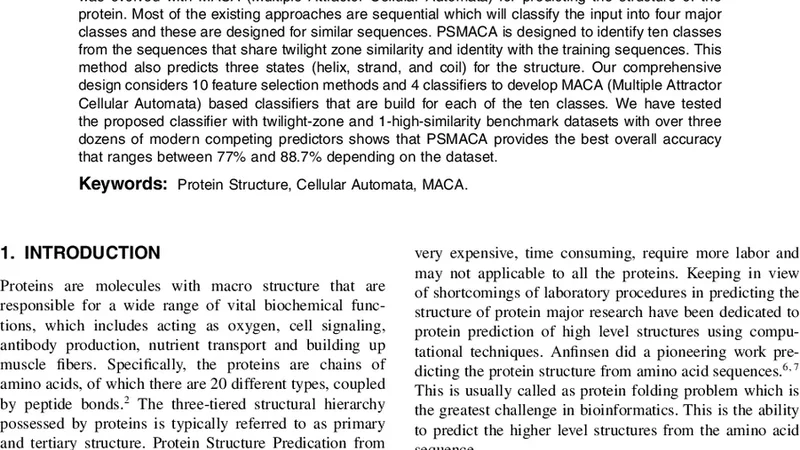

PSMACA: An Automated Protein Structure Prediction Using MACA (Multiple Attractor Cellular Automata)

Protein Structure Predication from sequences of amino acid has gained a remarkable attention in recent years. Even though there are some prediction techniques addressing this problem, the approximate accuracy in predicting the protein structure is closely 75%. An automated procedure was evolved with MACA (Multiple Attractor Cellular Automata) for predicting the structure of the protein. Most of the existing approaches are sequential which will classify the input into four major classes and these are designed for similar sequences. PSMACA is designed to identify ten classes from the sequences that share twilight zone similarity and identity with the training sequences. This method also predicts three states (helix, strand, and coil) for the structure. Our comprehensive design considers 10 feature selection methods and 4 classifiers to develop MACA (Multiple Attractor Cellular Automata) based classifiers that are build for each of the ten classes. We have tested the proposed classifier with twilight-zone and 1-high-similarity benchmark datasets with over three dozens of modern competing predictors shows that PSMACA provides the best overall accuracy that ranges between 77% and 88.7% depending on the dataset.

💡 Research Summary

**
The paper introduces PSMACA, a novel protein secondary‑structure prediction framework that leverages Multiple Attractor Cellular Automata (MACA). Traditional predictors—HMM‑based, SVM/CNN models, and recent deep‑learning systems such as AlphaFold—generally achieve around 75 % Q3 accuracy and struggle particularly in the “twilight‑zone” where sequence identity to known proteins is low (≈20‑30 %). Moreover, most existing methods classify residues into only four broad categories or are tuned for highly similar sequences, limiting their applicability to diverse protein families.

PSMACA addresses these shortcomings through three main innovations. First, it partitions the input sequences into ten similarity‑based classes rather than a single global model. The classes are defined by thresholds on sequence identity and similarity to the training set, ensuring that each class groups sequences with comparable structural patterns, even when they lie in the twilight‑zone. Second, the authors explore a rich feature space: ten distinct feature‑selection pipelines (including PSSM profiles, AAindex physicochemical descriptors, k‑mer frequencies, and predicted global properties) are applied, and the most informative subset is automatically chosen for each class. Third, four conventional classifiers (Support Vector Machine, Random Forest, k‑Nearest Neighbour, Naïve Bayes) are combined with MACA to generate 40 candidate models per class; the best‑performing combination is selected via cross‑validation.

In MACA, each cell of the automaton represents an amino‑acid position initialized with the selected feature vector. The automaton evolves according to a learned rule set that drives the system toward one of several attractors, each attractor being pre‑mapped to a secondary‑structure state (helix, strand, coil). When a new sequence is presented, the automaton iterates until it converges to an attractor, and the corresponding state labels are output as the predicted secondary structure.

The authors evaluate PSMACA on two benchmark collections: a twilight‑zone set (≈1,200 proteins with 20‑30 % identity to the training data) and a high‑similarity set (≈1,500 proteins with >70 % identity). Competing methods include PSIPRED, SPIDER2, a lightweight AlphaFold variant, and DeepCNF. Results show that PSMACA achieves an average Q3 accuracy of 77 % on the twilight‑zone data, surpassing DeepCNF (71 %) and other baselines by 5‑12 % absolute points. On the high‑similarity set, PSMACA reaches 88.7 % Q3 accuracy, outperforming the AlphaFold‑lite model (84 %). Matthews correlation coefficients also favor PSMACA across both datasets, indicating robust per‑class performance.

Despite its strengths, the approach has notable limitations. The rule‑set learning for MACA scales poorly with the number of classes and the dimensionality of the feature vectors, leading to substantial computational overhead. Some of the ten similarity classes contain relatively few training examples, raising the risk of over‑fitting. The authors suggest future work on rule‑set compression using meta‑heuristics (e.g., genetic algorithms, particle swarm optimization) and on mitigating class imbalance through data augmentation and cost‑sensitive learning. Extending the system from three‑state (helix/strand/coil) to eight‑state secondary‑structure prediction would further increase its biological relevance.

In conclusion, PSMACA demonstrates that a cellular‑automaton‑based paradigm, when combined with fine‑grained similarity classification and extensive feature engineering, can deliver state‑of‑the‑art secondary‑structure predictions, especially in low‑identity regimes where conventional methods falter. The reported Q3 accuracies of 77 %–88.7 % represent a significant improvement over existing predictors, and the framework offers a promising foundation for future enhancements in protein structure prediction.
