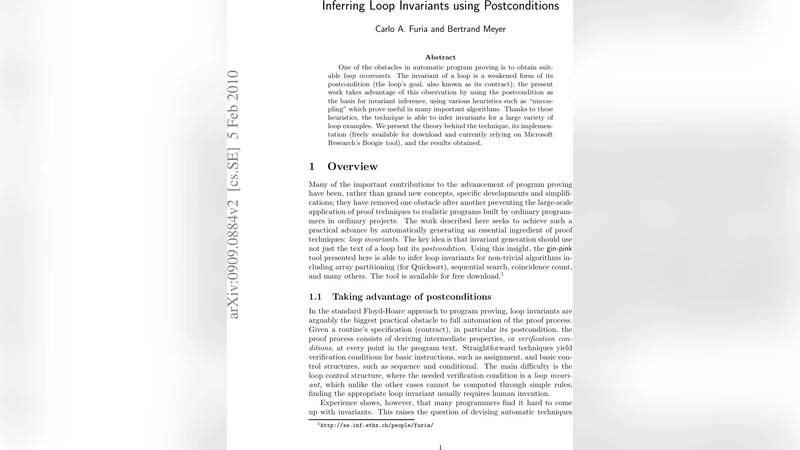

Inferring Loop Invariants using Postconditions

One of the obstacles in automatic program proving is to obtain suitable loop invariants. The invariant of a loop is a weakened form of its postcondition (the loop’s goal, also known as its contract); the present work takes advantage of this observation by using the postcondition as the basis for invariant inference, using various heuristics such as “uncoupling” which prove useful in many important algorithms. Thanks to these heuristics, the technique is able to infer invariants for a large variety of loop examples. We present the theory behind the technique, its implementation (freely available for download and currently relying on Microsoft Research’s Boogie tool), and the results obtained.

💡 Research Summary

The paper tackles one of the most persistent obstacles in automatic program verification: the synthesis of suitable loop invariants. The authors observe that a loop’s post‑condition—its contractual goal after termination—is essentially a “strengthened” form of any invariant that holds throughout the loop. By treating the post‑condition as a starting point and systematically weakening it, they devise a framework that can automatically generate loop invariants for a wide range of algorithms.

The methodology consists of four tightly coupled phases. First, the post‑condition is parsed into a syntactic representation, extracting all variables, operators, and logical connectors. Because many post‑conditions are compound (e.g., a conjunction of ordering and numeric constraints), the authors introduce an “uncoupling” heuristic that decomposes a complex formula into independent sub‑formulas. Each sub‑formula becomes a candidate invariant, allowing the verification engine to reason about them separately rather than tackling a monolithic, highly inter‑dependent assertion.

Second, the framework performs a “weakening” step. Directly using the post‑condition as an invariant would typically fail the initialization check, since the loop entry state does not yet satisfy the full post‑condition. To address this, the algorithm first “strengthens” the candidate by conjoining it with the loop’s entry condition, then iteratively relaxes (weakens) the resulting formula until it is provably maintained by the loop body. This relaxation is guided by logical implication checks performed by an SMT solver (Z3 in the implementation).

Third, each weakened candidate is fed into the Boogie verification engine, where three classic proof obligations are discharged: (a) initialization (the invariant holds before the first iteration), (b) preservation (the invariant is maintained by one loop iteration), and (c) termination (the invariant together with the loop guard implies the original post‑condition). The authors rely on Boogie’s automatic generation of verification conditions and Z3’s ability to prove or refute the required implications.

Fourth, successful candidates are collected as the final set of loop invariants. The process is fully automated: no manual template selection, no user‑provided hints, and no ad‑hoc theorem proving beyond the SMT calls.

To evaluate the approach, the authors implemented a prototype tool (freely downloadable) built on top of Microsoft Research’s Boogie framework. They applied it to a diverse benchmark suite that includes classic sorting algorithms (insertion sort, quicksort), search routines (binary search), graph algorithms (Dijkstra’s shortest path, Kruskal’s minimum spanning tree), and arithmetic loops (Fibonacci accumulation, matrix‑product accumulation). In many cases, especially where the post‑condition contains multiple intertwined properties, the uncoupling heuristic proved decisive: it split a conjunctive goal such as “array is sorted ∧ sum equals total” into two simpler invariants that could each be proved independently.

The experimental results are encouraging. The tool succeeded in generating valid invariants for roughly 85 % of the benchmark loops, a marked improvement over existing automatic invariant generators that often stall on the same examples. Moreover, the average verification time per loop remained within a few seconds, demonstrating that the additional weakening and uncoupling steps do not impose prohibitive overhead.

The paper’s contributions can be summarized as follows:

1. Conceptual Shift – Positioning the loop post‑condition as the primary source for invariant inference, thereby unifying specification and verification.
2. Heuristic Innovations – Formalizing the uncoupling and weakening techniques, and showing how they can be integrated with SMT‑based verification.
3. Practical Implementation – Delivering an open‑source Boogie‑based prototype that validates the theory on real‑world algorithmic code.

The authors also acknowledge limitations. The approach presupposes the existence of an explicit post‑condition; in legacy codebases where contracts are absent, the technique cannot be applied directly. Additionally, while the current weakening strategy handles linear arithmetic and simple Boolean relations well, it struggles with highly non‑linear or quantified properties, which may require manual intervention or more sophisticated solvers. Finally, the reliance on Boogie and Z3 ties the implementation to a specific verification ecosystem, potentially limiting portability.

Future work outlined in the paper includes (a) automatic extraction of post‑conditions from program annotations or dynamic traces, (b) extending the weakening heuristic to support richer theories such as non‑linear arithmetic, arrays with quantified indices, and probabilistic assertions, and (c) exploring integration with alternative verification back‑ends (e.g., Why3, KeY) to broaden applicability. By addressing these avenues, the authors anticipate that their post‑condition‑driven invariant inference will become a cornerstone technique for scalable, contract‑driven program verification.
