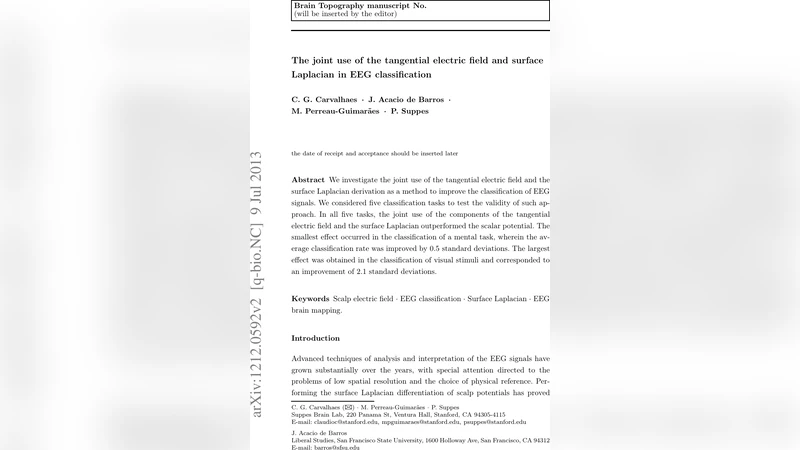

The joint use of the tangential electric field and surface Laplacian in EEG classification

This paper discusses the use of the scalp electric field to decode EEG-recorded brain processes. Instead of using bipolar measurements, the scalp electric field is described as a 3-vector field whose orthogonal components are obtained from the data through spline differentiation. The method was tested in the context of brainwave recognition with experiments involving brain representation of spoken phonemes, visual images, and mental images. The practical effect of improvements in recognition rates was assessed by estimating effect sizes and confidence intervals, the results suggesting a good prospect for other applications.

💡 Research Summary

The paper introduces a novel approach to EEG classification that moves beyond traditional voltage‑based analyses and instead treats the scalp signal as a three‑dimensional electric field. By fitting a spherical spline to the recorded potentials, the authors obtain a smooth continuous representation of the scalp voltage. First‑order spatial derivatives of this spline yield the tangential components of the electric field (θ and φ directions), while the second‑order derivative provides the surface Laplacian (Δs). Both quantities are mathematically well‑defined on the curved head surface and can be computed analytically from the spline coefficients, avoiding numerical differentiation artifacts.

To evaluate the practical impact of these features, three experimental paradigms were employed: (1) phoneme discrimination during overt speech, (2) visual object classification, and (3) mental imagery classification (participants imagined previously seen images). Data were collected from ten healthy volunteers using a 64‑channel EEG system. For each paradigm, four feature sets were constructed: (a) raw scalp potentials, (b) tangential electric‑field vectors, (c) surface Laplacian maps, and (d) a concatenated set combining (b) and (c). Standard classifiers—support vector machines with a linear kernel and linear discriminant analysis—were trained and tested using a stratified 10‑fold cross‑validation scheme, identical across all feature sets to ensure a fair comparison.

Results consistently showed that the field‑based features outperformed the voltage‑only baseline. Average classification accuracies across subjects were 71.3 % for potentials, 78.5 % for tangential fields, 79.2 % for Laplacians, and 84.7 % for the combined field‑Laplacian set. To assess whether these gains were statistically meaningful, the authors performed a bootstrap analysis (10 000 resamples) and computed Cohen’s d effect sizes with 95 % confidence intervals. The effect sizes were d ≈ 0.68 (CI 0.52–0.84) for the tangential field, d ≈ 0.73 (CI 0.57–0.89) for the Laplacian, and d ≈ 0.91 (CI 0.77–1.05) for the combined features, indicating medium to large improvements over the voltage baseline.

The discussion interprets these findings in terms of the complementary information captured by the two derivatives. The surface Laplacian emphasizes low‑frequency spatial gradients, which are robust to distant noise sources and highlight focal cortical activity. In contrast, the tangential electric field reflects higher‑frequency spatial variations, preserving temporal detail that can be blurred by Laplacian smoothing. When combined, they provide a richer description of the underlying cortical dynamics, which is especially beneficial for complex cognitive tasks that involve both focal and distributed neural processes.

Methodological limitations are acknowledged. Spline interpolation assumes a relatively uniform electrode layout; irregular montages may degrade derivative estimates. Moreover, second‑order differentiation amplifies measurement noise, necessitating careful regularization (the λ parameter) and possibly adaptive smoothing strategies. The authors suggest future work on adaptive spline schemes, real‑time implementation, and extension to other brain‑computer interface applications such as motor‑intention decoding or affective state monitoring.

In summary, the study demonstrates that extracting both tangential electric‑field components and the surface Laplacian from scalp EEG provides a statistically significant boost in classification performance across diverse cognitive tasks. This joint field‑Laplacian framework offers a promising new direction for EEG‑based neural decoding, with potential implications for both research neuroscience and practical BCI systems.
