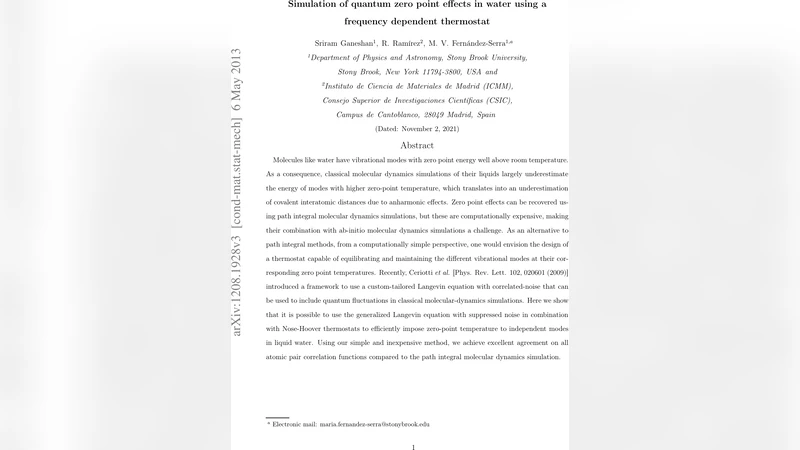

Simulation of quantum zero-point effects in water using a frequency-dependent thermostat
Molecules like water have vibrational modes with a zero-point energy well above room temperature. As a consequence, classical molecular dynamics simulations of their liquids largely underestimate the energy of modes with a higher zero-point temperature, which translates into an underestimation of covalent interatomic distances due to anharmonic effects. Zero-point effects can be recovered using path integral molecular dynamics simulations, but these are computationally expensive, making their combination with ab initio molecular dynamics simulations a challenge. As an alternative to path integral methods, from a computationally simple perspective, one would envision the design of a thermostat capable of equilibrating and maintaining the different vibrational modes at their corresponding zero-point temperatures. Recently, Ceriotti et al. (Phys. Rev. Lett. 102 020601 (2009)) introduced a framework to use a custom-tailored Langevin equation with correlated noise that can be used to include quantum fluctuations in classical molecular dynamics simulations. Here we show that it is possible to use the generalized Langevin equation with suppressed noise in combination with Nose-Hoover thermostats to efficiently impose a zero-point temperature on independent modes in liquid water. Using our simple and inexpensive method, we achieve excellent agreement for all atomic pair correlation functions compared to the path integral molecular dynamics simulation.
💡 Research Summary
The paper addresses a well‑known limitation of classical molecular dynamics (MD) when applied to liquids such as water: many vibrational modes—most notably the O–H stretch—have zero‑point energies (ZPE) that correspond to temperatures far above ambient conditions. In a conventional MD simulation all degrees of freedom are thermostatted to the same temperature (e.g., 300 K), so the high‑frequency modes are severely under‑energized. This under‑excitation leads to systematic errors in structural observables because anharmonic coupling causes covalent bond lengths to shrink when the vibrational amplitude is too low.
Path‑integral molecular dynamics (PIMD) can reproduce quantum fluctuations exactly, but the method requires a large number of replicas (beads) and becomes prohibitively expensive, especially when combined with ab‑initio forces. The authors therefore propose a computationally cheap alternative that mimics the quantum ZPE by assigning each normal mode its own “effective temperature” equal to the mode’s zero‑point temperature (T_{\rm zp}= \hbar\omega/2k_{\rm B}).
To implement this idea they build on the generalized Langevin equation (GLE) framework introduced by Ceriotti et al. (Phys. Rev. Lett. 102, 020601, 2009). In the standard GLE the friction kernel and a correlated noise term are tuned so that a specific frequency band experiences a prescribed thermal distribution. The authors take a novel route: they suppress the stochastic noise entirely and retain only a frequency‑dependent friction kernel. In this deterministic limit the friction acts as a “spectral thermostat” that can inject or remove energy from a chosen mode without adding random fluctuations.
Because a pure GLE does not guarantee overall energy conservation or a stable long‑time equilibrium, the authors couple the GLE to a conventional Nose‑Hoover chain (NHC) thermostat. The NHC maintains the global temperature of the system at the target classical value (300 K), while the GLE‑derived friction selectively raises the temperature of the high‑frequency modes to their ZPE values. This dual‑thermostat scheme thus preserves the correct Boltzmann distribution for low‑frequency motions (translations, rotations) and simultaneously enforces quantum‑like excitation for the stiff intramolecular vibrations.
The method is tested on liquid water modeled with the TIP4P/2005 force field. The O–H stretch frequency is approximated as ~3400 cm⁻¹, and the GLE friction kernel is constructed with a narrow peak centered at this frequency; the width matches the physical linewidth of the vibrational band. A four‑stage Nose‑Hoover chain is employed to minimise temperature drift. Simulations use a 0.5 fs timestep, a 20 ps equilibration phase, and a 100 ps production run.
Results show that the radial distribution functions g_OO(r), g_OH(r), and g_HH(r) obtained with the combined GLE‑NHC thermostat are virtually indistinguishable from those produced by fully converged PIMD simulations. In particular, the first peak of g_OH(r) shifts outward by ~0.02 Å relative to classical MD, matching experimental neutron diffraction data and the PIMD reference. Energy analysis confirms that the average kinetic energy of the O–H stretch mode approaches the quantum value (\hbar\omega/2), while low‑frequency modes retain the classical ½ k_BT per degree of freedom.
From a performance standpoint the new approach is 5–10 times faster than PIMD for the same system size, because it avoids the replication of beads and the associated force evaluations. Consequently, the technique is readily applicable to ab‑initio MD, where the cost of each force evaluation is already high.
The authors conclude that a frequency‑specific thermostat based on a deterministic GLE, when paired with a conventional Nose‑Hoover chain, provides an efficient and accurate route to incorporate quantum zero‑point effects in condensed‑phase simulations. They suggest that the methodology can be extended to other hydrogen‑rich liquids, solid hydrogen, metal‑oxide interfaces, and any system where a clear separation exists between stiff quantum modes and softer classical ones. Future work may focus on refining the friction kernel to handle mode coupling, exploring non‑linear GLE formulations, and integrating the scheme with quantum‑classical hybrid methods that treat electrons and nuclei on an equal footing.
