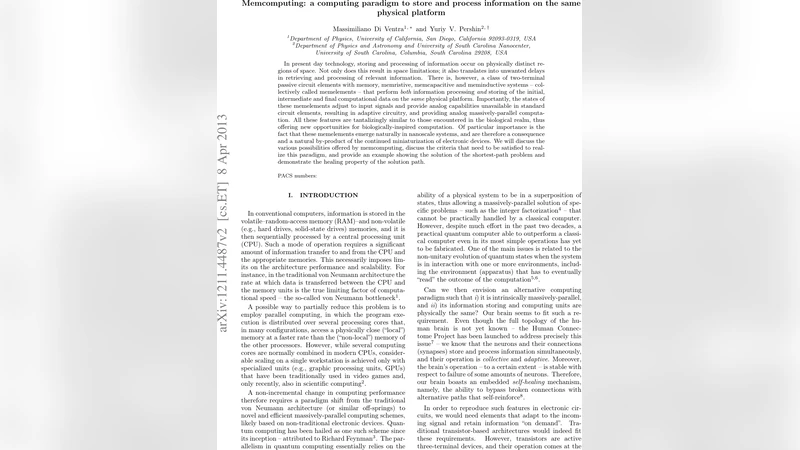

Memcomputing: a computing paradigm to store and process information on the same physical platform

In present day technology, storing and processing of information occur on physically distinct regions of space. Not only does this result in space limitations; it also translates into unwanted delays in retrieving and processing of relevant information. There is, however, a class of two-terminal passive circuit elements with memory, memristive, memcapacitive and meminductive systems – collectively called memelements – that perform both information processing and storing of the initial, intermediate and final computational data on the same physical platform. Importantly, the states of these memelements adjust to input signals and provide analog capabilities unavailable in standard circuit elements, resulting in adaptive circuitry, and providing analog massively-parallel computation. All these features are tantalizingly similar to those encountered in the biological realm, thus offering new opportunities for biologically-inspired computation. Of particular importance is the fact that these memelements emerge naturally in nanoscale systems, and are therefore a consequence and a natural by-product of the continued miniaturization of electronic devices. We will discuss the various possibilities offered by memcomputing, discuss the criteria that need to be satisfied to realize this paradigm, and provide an example showing the solution of the shortest-path problem and demonstrate the healing property of the solution path.

💡 Research Summary

The paper introduces “memcomputing,” a computing paradigm that unifies information storage and processing on a single physical substrate by exploiting two‑terminal passive circuit elements with memory, collectively termed memelements (memristive, memcapacitive, and meminductive systems). Traditional electronic architectures separate memory (e.g., DRAM, flash) from processing units (e.g., CPUs, GPUs), leading to latency, bandwidth bottlenecks, and increased power consumption due to constant data shuttling. Memelements, by contrast, possess state variables that evolve as a function of the integral of voltage or current, thereby embedding both the data and the computational operation within the same device. This intrinsic coupling enables analog, massively parallel computation that can adapt dynamically to input signals, reminiscent of biological neural networks.

The authors first review the physical foundations of memelements, highlighting that many nanoscale phenomena—ionic migration in metal‑oxide films, phase‑change dynamics, ferroelectric switching—naturally give rise to memristive, memcapacitive, or meminductive behavior. They argue that as device dimensions shrink, these memory‑bearing characteristics become unavoidable by‑products, turning a potential reliability issue into a computational resource.

Four design criteria for a practical memcomputing platform are articulated: (1) non‑volatile retention of the internal state, (2) continuous and reversible response to stimuli, (3) controllable interaction among a large ensemble of memelements to avoid uncontrolled crosstalk, and (4) compatibility with existing CMOS fabrication to leverage mature manufacturing infrastructure. Meeting these criteria would allow large‑scale integration of memelements into hybrid circuits that retain the benefits of conventional logic while adding adaptive, analog capabilities.

To demonstrate the concept, the paper presents a concrete implementation of the shortest‑path problem on a two‑dimensional grid. Each edge of the grid is realized by a memristive element whose conductance increases when current flows through it. By applying a voltage difference between a source node and a target node, current preferentially travels along the path of least resistance. As the current traverses a particular edge, the memristor’s conductance is reinforced, effectively “learning” the path. After the voltage is removed, the reinforced conductance persists, encoding the solution directly in the hardware. The authors further show a “healing” property: if part of the learned path is physically damaged (the corresponding memristor is removed), the remaining network re‑optimizes under the same voltage bias, automatically forming a new shortest path without external reprogramming. This behavior mirrors self‑repair mechanisms observed in biological systems and illustrates how computation can be off‑loaded to the physics of the substrate.

The discussion then turns to challenges. Variability in device parameters, thermal noise, and drift can affect convergence speed and solution accuracy. Scaling to millions of memelements raises concerns about power dissipation, heat removal, and the need for robust programming interfaces. The authors suggest that careful circuit topology design, error‑tolerant algorithms, and adaptive biasing schemes can mitigate many of these issues. They also emphasize the importance of developing standardized models and simulation tools that capture the nonlinear dynamics of memelements across multiple time scales.

Finally, the paper outlines future research directions. Potential applications include combinatorial optimization (e.g., traveling salesman, graph coloring), neuromorphic learning (spike‑timing dependent plasticity implemented directly in hardware), and real‑time signal processing where analog parallelism offers speed advantages. The authors propose a roadmap that begins with small‑scale experimental prototypes, progresses to mixed‑signal CMOS‑memristor chips, and culminates in fully integrated memcomputing processors capable of tackling large‑scale, energy‑efficient computation tasks.

In summary, memcomputing leverages the intrinsic memory of nanoscale passive devices to collapse the traditional von Neumann bottleneck, offering a pathway toward ultra‑dense, low‑latency, and biologically inspired computing architectures. While significant engineering hurdles remain, the demonstrated shortest‑path solution and its self‑healing capability provide compelling proof‑of‑concept evidence that the paradigm is both feasible and advantageous for a broad class of computational problems.
