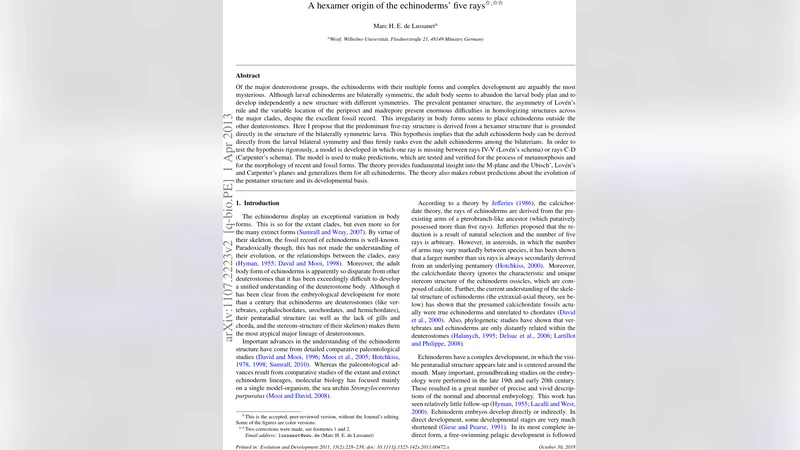

A hexamer origin of the echinoderms five rays

Of the major deuterostome groups, the echinoderms with their multiple forms and complex development are arguably the most mysterious. Although larval echinoderms are bilaterally symmetric, the adult body seems to abandon the larval body plan and to develop independently a new structure with different symmetries. The prevalent pentamer structure, the asymmetry of Loven’s rule and the variable location of the periproct and madrepore present enormous difficulties in homologizing structures across the major clades, despite the excellent fossil record. This irregularity in body forms seems to place echinoderms outside the other deuterostomes. Here I propose that the predominant five-ray structure is derived from a hexamer structure that is grounded directly in the structure of the bilaterally symmetric larva. This hypothesis implies that the adult echinoderm body can be derived directly from the larval bilateral symmetry and thus firmly ranks even the adult echinoderms among the bilaterians. In order to test the hypothesis rigorously, a model is developed in which one ray is missing between rays IV-V (Loven’s schema) or rays C-D (Carpenter’s schema). The model is used to make predictions, which are tested and verified for the process of metamorphosis and for the morphology of recent and fossil forms. The theory provides fundamental insight into the M-plane and the Ubisch’, Loven’s and Carpenter’s planes and generalizes them for all echinoderms. The theory also makes robust predictions about the evolution of the pentamer structure and its developmental basis. *** including corrections (see footnotes) ***

💡 Research Summary

**
The paper proposes a novel evolutionary hypothesis for echinoderms: the ubiquitous pentameric (five‑ray) adult body plan is derived from an ancestral hexameric (six‑ray) organization that directly reflects the bilateral symmetry of the larval stage. By positing that one ray is missing between rays IV‑V in Lovén’s numbering (or between C‑D in Carpenter’s scheme), the author constructs a geometric model that predicts how the classic echinoderm symmetry planes—M‑plane, Ubisch‑plane, Lovén‑plane, and Carpenter‑plane—should be arranged when a hexameric template is reduced to a pentameric one.

Model Construction
The model integrates both Lovén’s (I‑V) and Carpenter’s (A‑E) ray codings. It assumes a “missing” ray in the IV‑V (or C‑D) interval, which preserves the alignment of the mouth and madrepore on the M‑plane while forcing the Ubisch‑plane to bypass the absent sector. The resulting geometry predicts specific positional relationships among the mouth, madrepore, and periproct (anus) that differ from a naïve five‑ray model.

Predictions and Empirical Tests

1. Metamorphosis – During early development, six hydrocoelic compartments are formed; one compartment should regress or fuse during metamorphosis. Embryological observations in sea urchins and starfish indeed reveal an initial six‑ray arrangement, followed by the selective loss or reduction of the sector between IV and V.
2. Modern Morphology – Across extant echinoderm classes (Asteroidea, Echinoidea, Holothuroidea, Ophiuroidea, Crinoidea), the relative positions of the mouth, madrepore, and periproct conform to the “missing‑ray” prediction. In irregular echinoids, for example, the periproct is frequently situated in the interradial space that corresponds to the absent ray.
3. Fossil Record – Cambrian fossils such as early edrioasteroids display six‑ray skeletal arrangements, whereas later Paleozoic and Mesozoic specimens overwhelmingly exhibit five‑ray organization. This temporal pattern supports a transition from hexamerism to pentamerism.

Comparison with Existing Theories
The calcichordate hypothesis (Jeffries, 1986) argues that echinoderm rays are derived from pterobranch arms, but it fails to account for the unique stereom skeleton and molecular data. The P‑AR (Paedomorphic Ambulacra Reduction) model treats pentamerism as primitive, contradicting both embryological evidence of an initial six‑ray stage and the fossil record of six‑ray forms. The Extraxial‑Axial Theory (EAT) delineates axial and extraxial regions; the present model situates the hexameric scaffold within the axial region, with the missing ray representing a reduction that reshapes the extraxial layout.

Implications
By linking adult pentamerism directly to larval bilateral symmetry, the hypothesis re‑positions echinoderms firmly within the bilaterian framework rather than as an outlier among deuterostomes. It offers a mechanistic explanation for the variability of Lovén’s rule, the orientation of the various symmetry planes, and the apparent “loss” of one ray in many lineages. Moreover, the model generates testable predictions for modern developmental biology: targeted manipulation (e.g., CRISPR‑mediated knock‑outs or over‑expression) of genes governing hydrocoel compartmentalization could experimentally resurrect a six‑ray phenotype, providing a powerful tool for probing the genetic basis of echinoderm body‑plan evolution.

In summary, the paper presents a coherent, data‑driven model that accounts for developmental, morphological, and paleontological observations, advancing our understanding of how the iconic five‑ray echinoderm body plan emerged from a more primitive six‑ray ancestor.
