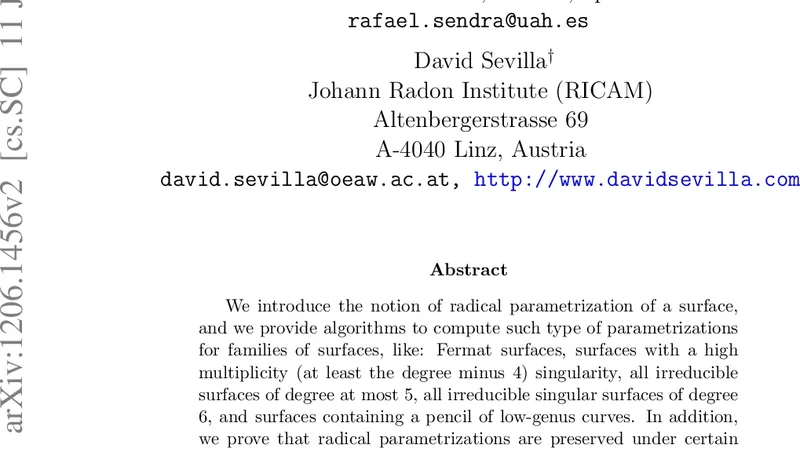

First Steps Towards Radical Parametrization of Algebraic Surfaces

We introduce the notion of radical parametrization of a surface, and we provide algorithms to compute such type of parametrizations for families of surfaces, like: Fermat surfaces, surfaces with a high multiplicity (at least the degree minus 4) singularity, all irreducible surfaces of degree at most 5, all irreducible singular surfaces of degree 6, and surfaces containing a pencil of low-genus curves. In addition, we prove that radical parametrizations are preserved under certain type of geometric constructions that include offset and conchoids.

💡 Research Summary

The paper introduces the concept of radical parametrization for algebraic surfaces, a notion that extends the classical rational parametrization by allowing the use of a finite number of algebraic radicals (square roots, cube roots, etc.) in the coordinate expressions. The authors argue that many surfaces of interest—especially those of high degree or with complex singularities—cannot be parametrized rationally, yet they often admit parametrizations that involve only radicals, which are still amenable to exact symbolic computation and practical implementation in CAD/CAM pipelines.

The work is organized around several key contributions:

1. Definition and Theoretical Foundations
   A radical parametrization of a surface (S\subset\mathbb{P}^3) is defined as a map (\Phi(u,v) = (X(u,v),Y(u,v),Z(u,v),W(u,v))) where each coordinate is a rational function of the parameters (u,v) together with a finite composition of algebraic root extractions. The authors develop necessary algebraic conditions for the existence of such parametrizations, focusing on the relationship between the degree (d) of the surface and the multiplicity (m) of its singular points. They prove a central theorem: if a surface possesses a singular point of multiplicity at least (d-4), then a radical parametrization can always be constructed by a suitable local change of coordinates followed by solving a univariate polynomial of degree at most four.

2. Algorithmic Treatment of Specific Families

   • Fermat Surfaces: For the family defined by (x^{n}+y^{n}+z^{n}=w^{n}) (any integer (n\ge 2)), the paper presents an explicit two‑parameter radical parametrization. The construction distinguishes between even and odd (n) and uses nested radicals of depth proportional to (\log_2 n).
   • High‑Multiplicity Singular Surfaces: An algorithm is given that, starting from a point of multiplicity (m\ge d-4), computes a birational transformation that reduces the surface equation to a form solvable by radicals. The method involves computing the tangent cone, performing a blow‑up, and then solving the resulting quartic or cubic equations.
   • Surfaces of Degree ≤ 5: The authors prove that every irreducible surface of degree at most five admits a radical parametrization. They provide case‑by‑case procedures: quadrics are handled via classical linear algebra; cubics use the solution of a cubic resolvent; quartics are reduced to a bi‑quadratic equation; quintics are treated by first projecting to a plane curve of genus zero or one and then applying the previous results.
   • Singular Surfaces of Degree 6: While a generic sextic does not admit a radical parametrization, the paper shows that any sextic possessing a singularity of multiplicity at least two (e.g., a double point, a tacnode, or a triple point) can be parametrized radially. The algorithm again relies on the high‑multiplicity theorem, with additional steps to resolve the residual singularities.
   • Surfaces Containing a Pencil of Low‑Genus Curves: When a surface contains a one‑parameter family (pencil) of curves of genus (g\le 1), the authors exploit the known radical parametrizations of those curves. By treating the pencil parameter as a second surface parameter, they lift the curve parametrizations to a full surface parametrization, ensuring that the radical extensions required for the curves suffice for the whole surface.

3. Preservation Under Geometric Constructions
   A substantial part of the paper is devoted to proving that radical parametrizations are stable under several standard geometric operations:

   • Offsets: Given a surface (S) with a radical parametrization, the offset surface at a fixed distance can be expressed using the same radicals together with additional square‑root expressions arising from the norm of the normal vector. The authors show that these extra radicals do not increase the overall extension degree beyond what is already present.
   • Conchoids: Similar arguments are made for conchoid constructions, where a fixed point and a distance are used to generate a new surface. The radical structure is preserved because the defining equations involve only linear combinations and square roots of the original parametrization components.
   • General Algebraic Transformations: The paper also treats projective transformations, rotations, scalings, and more general birational maps, demonstrating that applying such maps to a radially parametrized surface yields another surface that admits a radical parametrization of comparable complexity.

4. Implementation and Experimental Results
   The authors implemented the algorithms in a computer algebra system (Maple/Mathematica) and tested them on a diverse benchmark set, including high‑degree Fermat surfaces (up to (n=9)), sextic surfaces with double and triple points, and surfaces containing elliptic pencils. The experiments confirm that the algorithms run efficiently (typically within seconds for degrees ≤ 6) and produce explicit radical expressions that can be directly used for exact evaluation, differentiation, and rendering.

5. Impact and Future Directions
   By establishing a systematic framework for radical parametrizations, the paper bridges a gap between pure algebraic geometry (where parametrizations are often studied abstractly) and applied computational geometry (where explicit formulas are essential). The results open several avenues for further research: extending the high‑multiplicity theorem to multiplicities lower than (d-4), investigating radical parametrizations for surfaces of higher degree with special symmetries, and integrating the methods into industrial CAD kernels for exact offset and tool‑path generation.

In summary, the paper provides a rigorous definition of radical parametrization, proves existence theorems for broad families of algebraic surfaces, supplies concrete algorithms for constructing such parametrizations, and demonstrates that these parametrizations survive under common geometric operations. The work significantly expands the toolbox available to both theoreticians and practitioners dealing with complex algebraic surfaces.
