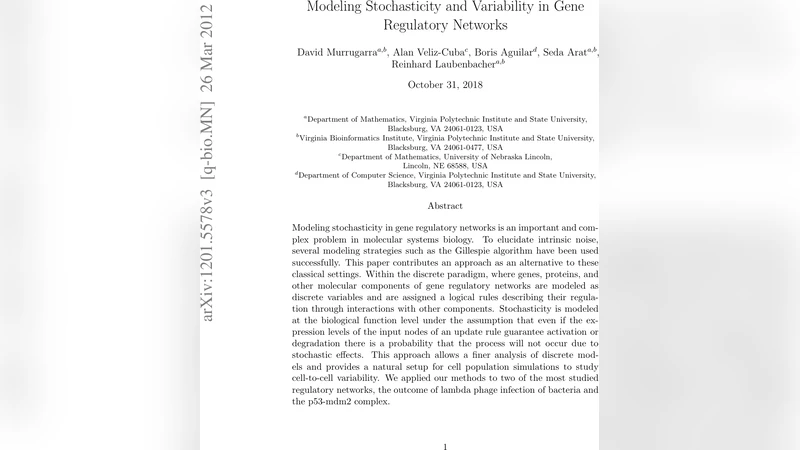

Modeling Stochasticity and Variability in Gene Regulatory Networks

Modeling stochasticity in gene regulatory networks is an important and complex problem in molecular systems biology. To elucidate intrinsic noise, several modeling strategies such as the Gillespie algorithm have been used successfully. This paper contributes an approach as an alternative to these classical settings. Within the discrete paradigm, where genes, proteins, and other molecular components of gene regulatory networks are modeled as discrete variables and are assigned as logical rules describing their regulation through interactions with other components. Stochasticity is modeled at the biological function level under the assumption that even if the expression levels of the input nodes of an update rule guarantee activation or degradation there is a probability that the process will not occur due to stochastic effects. This approach allows a finer analysis of discrete models and provides a natural setup for cell population simulations to study cell-to-cell variability. We applied our methods to two of the most studied regulatory networks, the outcome of lambda phage infection of bacteria and the p53-mdm2 complex.

💡 Research Summary

The paper addresses the challenge of capturing intrinsic stochasticity and cell‑to‑cell variability in gene regulatory networks (GRNs) by proposing a probabilistic extension of discrete logical models. Traditional stochastic simulations of GRNs rely on continuous frameworks such as the Gillespie algorithm, which treat reactions as Poisson processes and require explicit kinetic parameters. While accurate for well‑characterized biochemical systems, these methods become computationally burdensome when scaling to large cell populations and obscure the direct biological interpretation of regulatory logic.

In contrast, the authors retain the simplicity of Boolean or multi‑state logical networks—where each gene, mRNA, or protein is represented by a finite discrete variable—and augment each logical update rule with two probability parameters: an activation probability (p_activate) that governs the chance of a transition when the logical condition for activation is satisfied, and a degradation probability (p_degrade) that determines the chance of inactivation when the inhibitory condition holds. This formulation acknowledges that even when upstream regulators are present at sufficient levels, molecular noise, spatial heterogeneity, or transient fluctuations can prevent the downstream event from occurring. The probabilities can be calibrated from experimental measurements of transcriptional burst frequency, protein half‑life, or inferred from single‑cell data, allowing the model to reflect biologically realistic variability without requiring detailed kinetic constants.

Implementation proceeds in three steps. First, the network topology is defined and each interaction is encoded as a logical rule (e.g., AND, OR, NOT). Second, the two stochastic parameters are assigned to each rule based on prior knowledge or systematic parameter sweeps. Third, during simulation, all nodes are examined at each discrete time step; if a rule’s logical condition is met, a random number is drawn and compared to the corresponding probability to decide whether the state actually changes. The update can be synchronous (all nodes evaluated simultaneously) or asynchronous (random sequential updates), and time advances in uniform discrete steps rather than continuous intervals. This approach mirrors the reaction‑selection and time‑advancement steps of Gillespie but replaces exponential waiting times with simple Bernoulli trials, dramatically reducing computational overhead.

The authors demonstrate the utility of the framework on two canonical GRNs. The first case study is the λ‑phage infection of E. coli, which can follow either a lytic or lysogenic pathway. Classical deterministic or Gillespie models predict the relative frequencies of these outcomes mainly as a function of the multiplicity of infection (MOI) and fixed rate constants. By introducing stochastic activation and degradation probabilities for the decision nodes (e.g., cI, cro), the authors show that even with identical MOI values, the simulated cell population exhibits a broad distribution of fate choices. Sensitivity analysis reveals that small changes in p_activate for the lysogenic promoter can shift the lysogeny‑to‑lysis ratio dramatically, reproducing experimentally observed heterogeneity among infected cells.

The second case study focuses on the p53‑MDM2 negative feedback loop in human cells. DNA damage triggers p53 activation, which in turn induces MDM2 expression that targets p53 for degradation. Using a multi‑state logical representation (e.g., low, medium, high p53 levels) and assigning stochastic parameters to the activation of p53 and the degradation mediated by MDM2, the model captures the well‑known pulsatile dynamics of p53. Importantly, the probabilistic rules generate a spectrum of pulse amplitudes and durations across simulated cells, reflecting the experimentally observed variability in single‑cell time‑lapse imaging. Some cells display robust, high‑amplitude pulses leading to apoptosis, while others show attenuated responses compatible with survival, illustrating how stochastic regulation can influence cell fate decisions.

Comparisons with Gillespie‑based continuous stochastic simulations demonstrate that the probabilistic logical model reproduces average trajectories while providing richer information on rare events and population‑level distributions. The authors also conduct extensive parameter sweeps, showing that the model’s qualitative behavior is robust across a wide range of probability values, yet specific quantitative features (e.g., lysogeny frequency, p53 pulse height) are highly sensitive to particular parameters, underscoring the importance of accurate experimental calibration.

Limitations are acknowledged. The approach assumes that the probabilities are static over time, whereas real biological systems may exhibit time‑dependent noise levels (e.g., due to cell cycle progression or metabolic shifts). Moreover, the discrete abstraction cannot capture fine‑grained concentration gradients, potentially limiting accuracy in regimes where dose‑response curves are steep. The authors suggest future extensions such as hybrid models that couple stochastic logical updates with ordinary differential equations for selected components, or Bayesian inference pipelines that infer p_activate and p_degrade directly from single‑cell transcriptomics or proteomics data.

In summary, the paper introduces a novel, computationally efficient framework that embeds stochasticity directly into the logical rules governing gene regulation. By doing so, it bridges the gap between highly abstract Boolean models and detailed kinetic simulations, enabling researchers to explore how intrinsic molecular noise shapes both single‑cell dynamics and population‑level outcomes. The successful application to λ‑phage decision making and the p53‑MDM2 feedback loop illustrates the method’s versatility and its potential to become a standard tool for systems biologists investigating variability in cellular regulatory networks.
