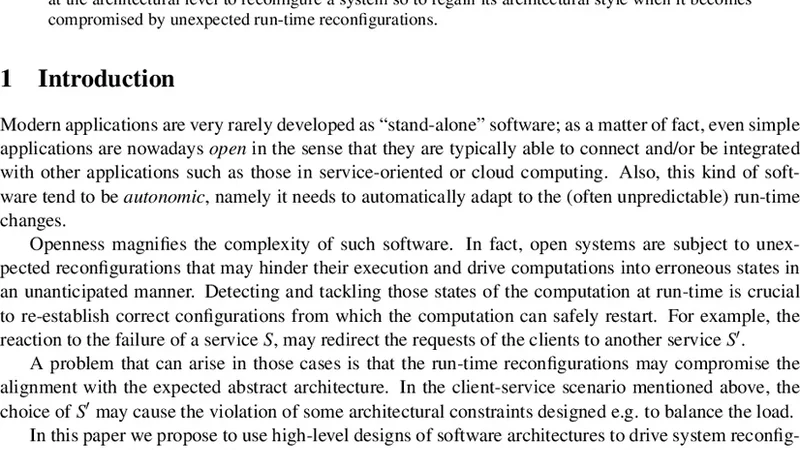

Enforcing Architectural Styles in Presence of Unexpected Distributed Reconfigurations
Architectural Design Rewriting (ADR, for short) is a rule-based formal framework for modelling the evolution of architectures of distributed systems. Rules allow ADR graphs to be refined. After equipping ADR with a simple logic, we equip rules with pre- and post-conditions; the former constraints the applicability of the rules while the later specifies properties of the resulting graphs. We give an algorithm to compute the weakest pre-condition out of a rule and its post-condition. On top of this algorithm, we design a simple methodology that allows us to select which rules can be applied at the architectural level to reconfigure a system so to regain its architectural style when it becomes compromised by unexpected run-time reconfigurations.
💡 Research Summary
The paper tackles the problem of preserving architectural styles in distributed systems that undergo unexpected runtime reconfigurations. It builds upon Architectural Design Rewriting (ADR), a graph‑based formalism where system architectures are represented as nodes and edges and evolution is expressed through rewrite rules. While ADR provides a powerful mechanism for modeling structural changes, it lacks a systematic way to guarantee that the resulting architecture continues to satisfy a predefined style (e.g., client‑server, pipe‑filter).
To address this gap, the authors enrich ADR with a lightweight logical layer. Each rewrite rule is equipped with a pre‑condition that restricts when the rule may be applied, and a post‑condition that specifies the properties the resulting graph must satisfy. The post‑condition captures the architectural style constraints, such as “every server must be connected to at least one client” or “filters must be arranged in a linear chain without cycles.”
The central technical contribution is an algorithm that, given a rule and its post‑condition, computes the weakest pre‑condition (WPC). The WPC is the minimal set of constraints that must hold on the source graph for the rule to guarantee the post‑condition after execution. The algorithm proceeds by: (1) mapping the post‑condition onto the right‑hand side (RHS) of the rule, (2) extracting variable bindings, (3) normalizing the logical formula, (4) propagating the constraints backward onto the left‑hand side (LHS), and (5) simplifying the resulting expression, possibly invoking a SAT/SMT solver to check satisfiability. This backward propagation mirrors Dijkstra’s weakest‑precondition calculus but is adapted to the graph‑rewriting context, handling node‑edge matching, variable scoping, and conjunction of multiple style predicates.
Complexity analysis shows that the WPC computation is polynomial in the size of the rule and the logical formula, making it feasible for realistic architectures. The authors also discuss how to handle composite styles that combine several independent constraints (hierarchy, connectivity, port compatibility) by treating each sub‑constraint separately and then conjoining the resulting pre‑conditions.
On top of the WPC machinery, the paper proposes a methodology for style recovery. When an unexpected reconfiguration occurs (e.g., a node failure, a dynamic load‑balancing decision, or a security patch), the current architecture is compared against the style’s post‑condition. Violations are identified, and the set of rewrite rules whose WPCs are satisfied by the current graph is computed. This filtered rule set represents the actions that can safely be taken without further breaking the style. Among them, a cost model (e.g., number of transformations, downtime, resource consumption) is applied to select the most efficient recovery plan. The chosen rule(s) are then executed, and the post‑condition is re‑checked to confirm that the style has been restored.
The authors validate their approach with two case studies. The first involves a client‑server system where a server crash triggers automatic deployment of a backup server and reconnection of clients. The WPC‑based selection prevents unnecessary migrations and ensures that the “each server has at least one client” invariant holds after recovery. The second case study concerns a pipe‑filter data‑processing pipeline; when a filter component fails, the system inserts an alternative filter and rewires the pipeline. Again, the weakest pre‑condition analysis quickly isolates the viable rewrite rules, reducing recovery time and minimizing disruption.
Experimental results demonstrate that, compared with a baseline ADR implementation lacking logical conditions, the proposed framework reduces the number of style‑violating states encountered, shortens the time to detect and fix violations, and incurs less than a 10 % overhead due to the additional logical checks.
In summary, the paper delivers a rigorous yet practical extension to ADR that enables automatic enforcement and restoration of architectural styles in the face of unforeseen distributed reconfigurations. By marrying graph rewriting with weakest‑precondition reasoning, it offers a pathway toward self‑healing, autonomic management of modern distributed systems such as micro‑service platforms and cloud‑native applications. Future work is outlined to scale the approach to more intricate style specifications (e.g., multi‑tenant security domains), integrate real‑time monitoring data, and explore tool support for large‑scale cloud environments.
