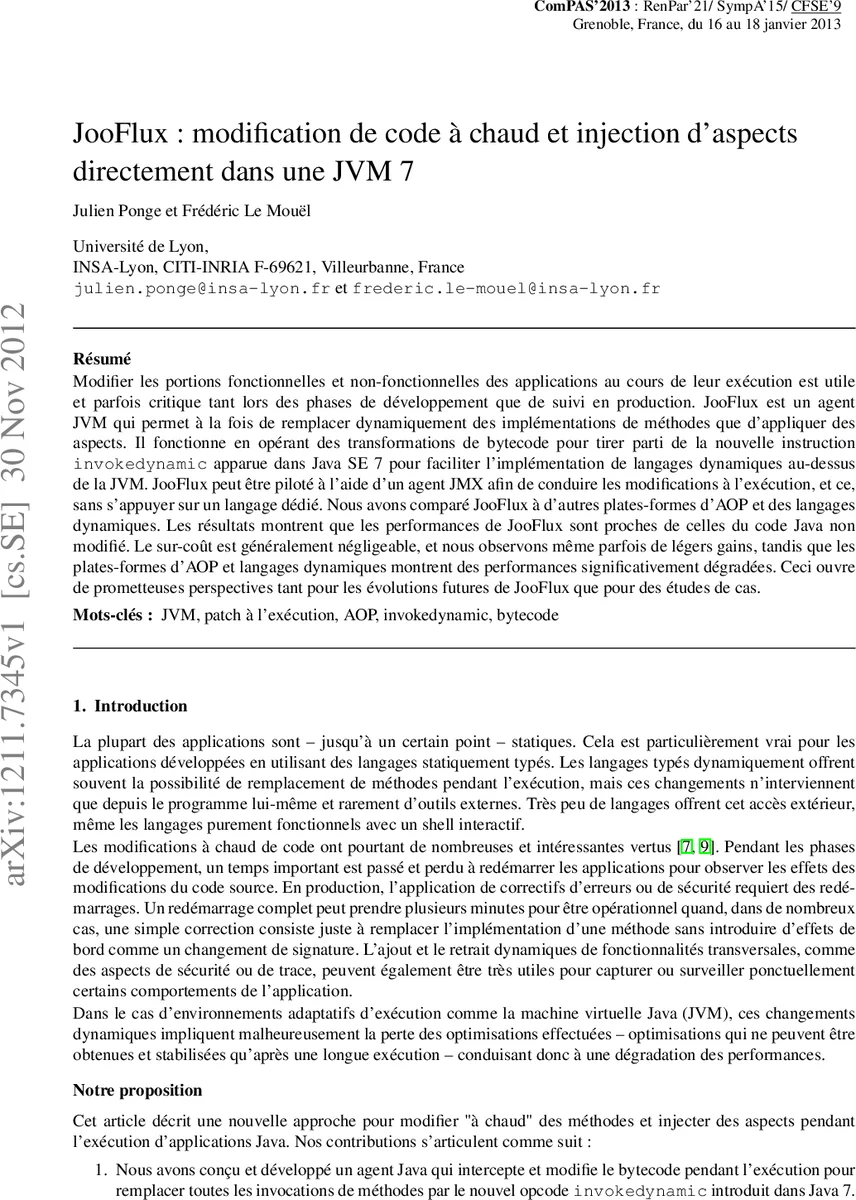

JooFlux : modification de code `a chaud et injection daspects directement dans une JVM 7

Changing functional and non-functional software implementation at runtime is useful and even sometimes critical both in development and production environments. JooFlux is a JVM agent that allows both the dynamic replacement of method implementations and the application of aspect advices. It works by doing bytecode transformation to take advantage of the new invokedynamic instruction added in Java SE 7 to help implementing dynamic languages for the JVM. JooFlux can be managed using a JMX agent so as to operate dynamic modifications at runtime, without resorting to a dedicated domain-specific language. We compared JooFlux with existing AOP platforms and dynamic languages. Results demonstrate that JooFlux performances are close to the Java ones — with most of the time a marginal overhead, and sometimes a gain — where AOP platforms and dynamic languages present significant overheads. This paves the way for interesting future evolutions and applications of JooFlux.

💡 Research Summary

This paper presents JooFlux, a novel JVM agent that enables dynamic code modification and aspect-oriented programming (AOP) at runtime for applications running on a Java Virtual Machine. Its primary innovation lies in leveraging the invokedynamic instruction, introduced in Java SE 7, to facilitate runtime method replacement and aspect advice injection with minimal performance overhead.

The core technique involves bytecode transformation. The JooFlux agent intercepts class loading and rewrites the bytecode, replacing traditional method invocation opcodes (invokestatic, invokevirtual, invokespecial, invokeinterface) with semantically equivalent invokedynamic instructions. Each invokedynamic call site is linked to a java.lang.invoke.CallSite object, which holds a MethodHandle pointing to the actual method implementation. Since the MethodHandle referenced by a CallSite can be changed during execution, it allows for true “hot-swapping” of method implementations without restarting the application.

Beyond simple method replacement, JooFlux implements AOP functionalities using method handle combinators from the java.lang.invoke API. Combinators like filterArguments and filterReturnValue are used to weave advice logic (e.g., logging, security checks) before and after the original method invocation. These aspects are applied generically, agnostic to the target method’s signature, by adapting arguments into and out of `Object
