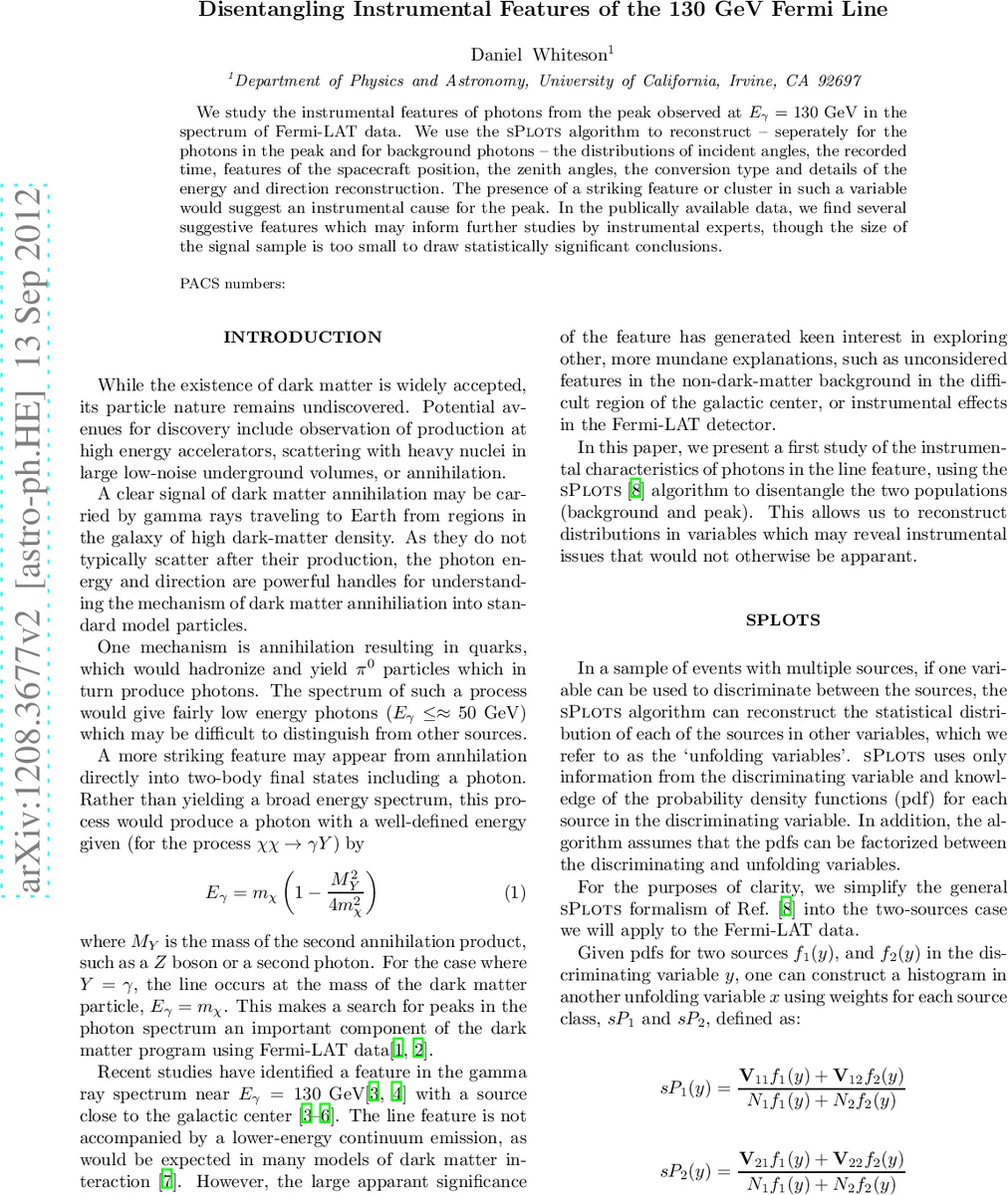

Disentangling Instrumental Features of the 130 GeV Fermi Line

We study the instrumental features of photons from the peak observed at $E_\gamma=130$ GeV in the spectrum of Fermi-LAT data. We use the {\sc sPlots} algorithm to reconstruct – seperately for the photons in the peak and for background photons – the distributions of incident angles, the recorded time, features of the spacecraft position, the zenith angles, the conversion type and details of the energy and direction reconstruction. The presence of a striking feature or cluster in such a variable would suggest an instrumental cause for the peak. In the publically available data, we find several suggestive features which may inform further studies by instrumental experts, though the size of the signal sample is too small to draw statistically significant conclusions.

💡 Research Summary

The paper investigates whether the 130 GeV gamma‑ray line reported in Fermi‑LAT data is a genuine astrophysical signal (e.g., dark‑matter annihilation) or an artifact of the instrument. To this end the authors apply the sPlots statistical technique, which allows one to disentangle overlapping signal and background contributions in a data set when a discriminating variable is known.

First, the authors select public Fermi‑LAT photon events up to 28 June 2012, imposing standard quality cuts and restricting the region to a 10° × 10° square around the Galactic centre (−5° < l < 5°, −5° < b < 5°) with reconstructed energies Eγ ≥ 50 GeV. For each photon a set of ancillary variables is available: incident angle θ, azimuth φ (folded), zenith angle, Earth‑azimuth angle, mission elapsed time, conversion type (front or back), probabilities that the chosen energy estimator and direction are correct, the ratio of reconstructed to raw energy, the first tracker layer with a hit, the magnetic‑field parameters (McIlwain B and L), distance from the South Atlantic Anomaly, and geomagnetic latitude.

The discriminating variable for sPlots is the photon energy. The background is modeled as a simple power law f_bg(Eγ|β,α) ∝ Eγ^−α, while the signal is represented by a line shape derived from the LAT energy‑dispersion functions for a true photon energy E_line (130 GeV). A maximum‑likelihood fit to the observed energy spectrum yields estimates of the total number of signal‑like and background‑like events (≈12–15 signal photons). Using the fitted PDFs, sPlots assigns each event a weight for belonging to the signal or background class (sP_signal, sP_background). These weights are then used to construct histograms of each ancillary variable separately for the signal‑weighted and background‑weighted samples.

Figures 5–12 display the unfolded distributions. In most variables the signal and background shapes are statistically compatible, but a few show modest deviations:

• Incident angle θ: the signal is slightly enhanced around cos θ ≈ 0.5, suggesting a preference for photons entering at moderate angles.
• Azimuth φ: a mild excess appears in a specific φ range, hinting at a possible dependence on the spacecraft orientation relative to the Sun.
• Zenith angle and Earth‑azimuth: the signal shows a modest clustering between 30°–50° zenith and 0°–90° Earth‑azimuth.
• Mission time: the distribution is largely flat, though the earliest mission period (2008‑2009) shows a small excess.
• Conversion type: front‑conversion events (thin tracker layers) contain a slightly larger fraction of signal photons, consistent with their better energy resolution.
• Probability of correct energy reconstruction: bins with probability > 0.8 contain a higher signal fraction.

To quantify these observations the authors compute χ² per degree of freedom for each variable. Most χ²/dof values hover around 1, indicating no statistically significant discrepancy. However, the Earth‑azimuth and McIlwain B magnetic‑field parameters yield χ²/dof ≈ 2, suggesting a possible systematic effect linked to the spacecraft’s magnetic environment.

The authors also test a two‑line hypothesis (110 GeV and 130 GeV) motivated by models where dark‑matter annihilation produces both γγ and γZ final states. In the sPlots framework the two lines are combined into a single composite PDF; the resulting unfolded distributions do not differ appreciably from the single‑line case, implying that any instrumental effect producing a line at 130 GeV would not automatically generate a companion feature at 110 GeV.

Overall, the study demonstrates that sPlots can be applied to astrophysical data to separate signal‑like and background‑like populations without imposing hard cuts that would mix the two. The analysis finds several suggestive, though not statistically decisive, correlations between the 130 GeV line candidates and instrumental variables. The limited size of the signal sample precludes firm conclusions, and the authors stress that a definitive assessment will require access to the full LAT calibration database, detailed Monte‑Carlo simulations, and perhaps a re‑analysis of the raw detector data by the LAT collaboration.

In conclusion, while the current public‑data sPlots analysis does not reveal any glaring instrumental flaw that could fully explain the 130 GeV line, it highlights specific variables (incident angle, conversion type, magnetic‑field environment) that merit deeper investigation. Future work with higher‑statistics data and internal LAT diagnostics will be essential to determine whether the line is a true dark‑matter signature or an artifact of the instrument.
