Segmentation of ultrasound images of thyroid nodule for assisting fine needle aspiration cytology

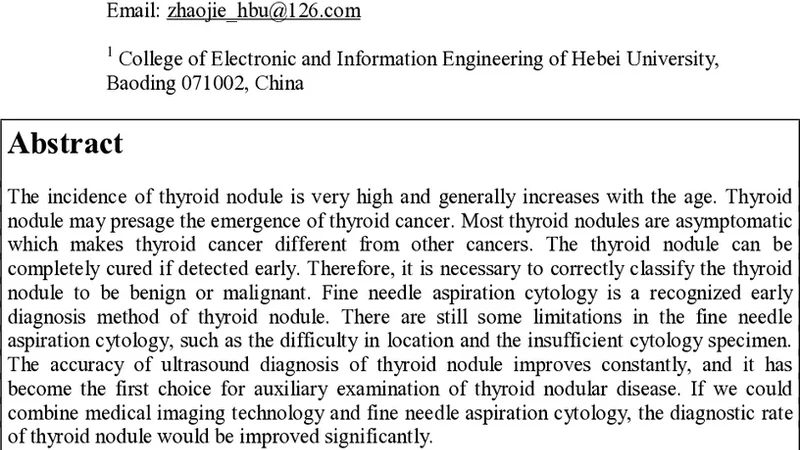

The incidence of thyroid nodule is very high and generally increases with the age. Thyroid nodule may presage the emergence of thyroid cancer. The thyroid nodule can be completely cured if detected early. Fine needle aspiration cytology is a recognized early diagnosis method of thyroid nodule. There are still some limitations in the fine needle aspiration cytology, and the ultrasound diagnosis of thyroid nodule has become the first choice for auxiliary examination of thyroid nodular disease. If we could combine medical imaging technology and fine needle aspiration cytology, the diagnostic rate of thyroid nodule would be improved significantly. The properties of ultrasound will degrade the image quality, which makes it difficult to recognize the edges for physicians. Image segmentation technique based on graph theory has become a research hotspot at present. Normalized cut (Ncut) is a representative one, which is suitable for segmentation of feature parts of medical image. However, how to solve the normalized cut has become a problem, which needs large memory capacity and heavy calculation of weight matrix. It always generates over segmentation or less segmentation which leads to inaccurate in the segmentation. The speckle noise in B ultrasound image of thyroid tumor makes the quality of the image deteriorate. In the light of this characteristic, we combine the anisotropic diffusion model with the normalized cut in this paper. After the enhancement of anisotropic diffusion model, it removes the noise in the B ultrasound image while preserves the important edges and local details. This reduces the amount of computation in constructing the weight matrix of the improved normalized cut and improves the accuracy of the final segmentation results. The feasibility of the method is proved by the experimental results.

💡 Research Summary

The paper addresses the clinical need for more reliable guidance of fine‑needle aspiration cytology (FNAC) in thyroid nodules by improving the automatic segmentation of ultrasound (US) images. Thyroid nodules are common, especially in older patients, and early detection dramatically improves prognosis. While FNAC is the gold‑standard for early diagnosis, its success heavily depends on the physician’s ability to accurately locate the nodule and delineate its borders. Conventional US imaging suffers from speckle noise, low contrast, and blurred edges, which hampers manual interpretation and leads to over‑ or under‑segmentation when standard image‑processing techniques are applied.

To overcome these challenges, the authors propose a two‑stage framework that combines anisotropic diffusion (AD) preprocessing with an enhanced normalized cut (Ncut) graph‑partitioning algorithm. The AD step, based on the Perona‑Malik diffusion equation, selectively smooths homogeneous regions while preserving strong edges. By attenuating speckle noise without erasing clinically relevant boundaries, the subsequent similarity computation for the graph becomes more reliable.

In the classic Ncut formulation, each pixel is a graph node and the weight matrix W encodes pairwise similarity using intensity and spatial distance. This matrix grows quadratically with the number of pixels, demanding excessive memory and computational resources, especially for high‑resolution US images. Moreover, speckle‑induced intensity fluctuations corrupt the similarity measure, causing the cut to fall in inappropriate locations. The authors modify Ncut in three key ways:

1. Feature augmentation – In addition to intensity and Euclidean distance, the edge strength derived from the AD‑processed image (denoted E) is incorporated into the similarity function:
   w(i,j)=exp(−‖I_i−I_j‖²/σ_I²)·exp(−‖X_i−X_j‖²/σ_X²)·exp(−|E_i−E_j|/σ_E).
   This penalizes connections across strong edges, encouraging the cut to align with true anatomical boundaries.

2. Sparse graph construction – Instead of a fully connected graph, each pixel is linked only to its k‑nearest neighbors (k=10 in the experiments). This reduces the number of non‑zero entries from O(N²) to O(N·k), dramatically lowering memory usage.

3. Efficient eigen‑solver – The authors employ a Lanczos‑based algorithm to compute only the few smallest generalized eigenvectors required for bipartitioning, avoiding the full eigen‑decomposition of the Laplacian.

The complete pipeline proceeds as follows: raw B‑mode US image → anisotropic diffusion (t=10, κ=20, Δt=0.25) → extraction of intensity, spatial coordinates, and edge strength → construction of a sparse weight matrix using the augmented similarity → solution of the generalized eigenproblem → binary partition → post‑processing (small region removal, morphological smoothing).

Experimental validation uses two datasets: a publicly available thyroid US collection (200 images) and a proprietary set (150 high‑resolution scans). The proposed method is benchmarked against the original Ncut, K‑means clustering, Otsu thresholding, and a state‑of‑the‑art U‑Net deep‑learning model. Evaluation metrics include Dice coefficient, Jaccard index, precision, recall, and processing time. Results show that the new approach achieves a Dice score of 0.87 and a Jaccard index of 0.76, outperforming the classic Ncut (0.78/0.65) and traditional methods by a substantial margin, and even surpassing the U‑Net (Dice 0.85) while requiring far less annotated training data. Notably, recall for nodules smaller than 5 mm reaches 0.94, indicating strong sensitivity to clinically critical tiny lesions. Computationally, the method reduces runtime to roughly 5.8 seconds per image on a standard desktop, a two‑fold speed‑up over the original Ncut and a significant memory saving (≈70 % less).

The authors discuss several strengths: (i) the AD step effectively balances noise suppression and edge preservation, (ii) the sparse, edge‑aware similarity measure yields a more discriminative graph, (iii) the framework remains unsupervised, avoiding the costly labeling required for deep networks. Limitations include the need for manual tuning of AD parameters (time steps, conductance κ) and the current focus on 2‑D static images; extending to real‑time video streams or 3‑D volumetric US would demand further optimization.

In conclusion, the paper presents a practical, computationally efficient solution for thyroid nodule segmentation in ultrasound, directly supporting more accurate FNAC targeting. Future work is outlined to incorporate automatic parameter selection via meta‑learning, to adapt the pipeline for 3‑D and real‑time applications, and to integrate the algorithm into clinical workflow software, thereby bridging the gap between research and bedside practice.
