Minimum Opaque Covers for Polygonal Regions

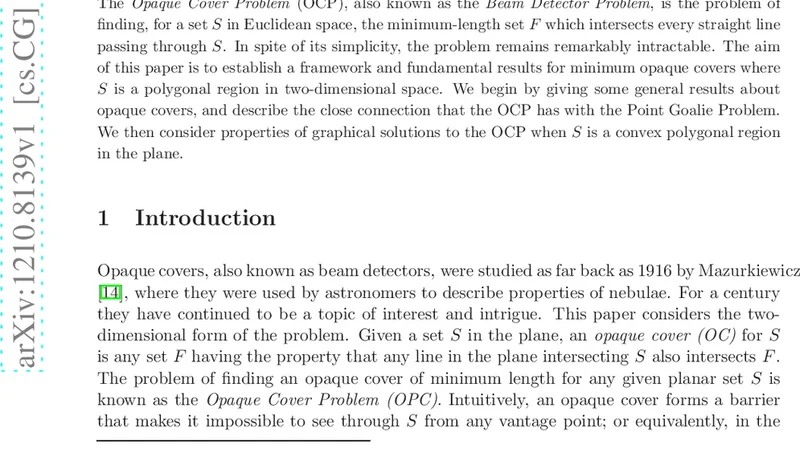

The Opaque Cover Problem (OCP), also known as the Beam Detector Problem, is the problem of finding, for a set S in Euclidean space, the minimum-length set F which intersects every straight line passing through S. In spite of its simplicity, the problem remains remarkably intractable. The aim of this paper is to establish a framework and fundamental results for minimum opaque covers where S is a polygonal region in two-dimensional space. We begin by giving some general results about opaque covers, and describe the close connection that the OCP has with the Point Goalie Problem. We then consider properties of graphical solutions to the OCP when S is a convex polygonal region in the plane.

💡 Research Summary

The paper tackles the Opaque Cover Problem (OCP), also known as the Beam Detector Problem, which asks for a set F of minimum total length that intersects every straight line passing through a given region S in the Euclidean plane. Although the formulation is elementary, the problem has resisted a general solution. The authors focus on the case where S is a polygonal region, and they develop a systematic framework that combines geometric, combinatorial, and optimization perspectives.

First, the authors formalize the notion of an opaque cover and prove basic existence and connectivity properties. They show that a minimum‑length cover can always be taken to be a closed set, and that any optimal cover can be represented as a finite union of line segments—i.e., as a graph embedded in the plane. This “graphical” representation is crucial because it allows the problem to be expressed in terms of well‑studied network design concepts.

A central contribution is the explicit connection between OCP and the Point Goalie Problem. In the Point Goalie formulation, one seeks the smallest set of points such that disks of radius r centered at those points cover S. By letting r tend to zero, the disks degenerate into line segments, and the covering condition becomes exactly the opaque‑cover condition. This limiting argument supplies a bridge to known lower‑bound techniques for the Point Goalie Problem, which the authors adapt to obtain non‑trivial length bounds for opaque covers. In particular, they prove that for any polygon P with perimeter L, the optimal opaque cover length |F| satisfies L/2 ≤ |F| ≤ L, and they refine the lower bound by relating |F| to the length of a Steiner Minimal Tree (SMT) spanning the vertices of P.

The bulk of the paper is devoted to convex polygons. The authors prove that a minimum opaque cover for a convex polygon can be taken to be a planar graph whose vertices are either polygon vertices or interior “Steiner points.” At each interior vertex, at least three incident edges meet, and the angles between consecutive edges must be 120° (or multiples thereof). This angle condition mirrors the classic result for Steiner trees, but it appears here as a necessary condition for line‑blocking: any deviation would leave a narrow wedge of directions that could pass through the polygon unimpeded. Consequently, the optimal cover is either a spanning tree of the polygon’s vertices, a Steiner tree with additional interior points, or a hybrid structure that combines boundary edges with interior Steiner edges.

The authors also discuss algorithmic implications. By enumerating candidate Steiner points (e.g., intersection points of angle‑bisectors or points where three 120° edges can meet) and constructing a mixed‑integer linear program that enforces the 120° angle constraints and the line‑blocking requirement, one can compute exact optimal covers for modest‑size polygons. For larger instances they propose a heuristic that first computes a Steiner Minimal Tree, then augments it with boundary edges to guarantee coverage, and finally refines the solution by local edge swaps that reduce total length while preserving the blocking property.

For non‑convex polygons the situation is more intricate. The paper shows that additional interior edges are often required near reflex vertices to block lines that would otherwise slip through the concave “pockets.” The same 120° angle rule applies at interior Steiner points, but the set of feasible Steiner locations expands dramatically, and the authors outline a decomposition approach: split the non‑convex polygon into convex components, solve each component separately, and then connect the component solutions while respecting the global blocking condition.

In the concluding section the authors summarize their contributions: (1) a rigorous definition of opaque covers and proof of the existence of graphical optimal solutions; (2) a novel reduction to the Point Goalie Problem that yields improved lower bounds; (3) a complete structural characterization of optimal covers for convex polygons, including the 120° angle condition; (4) preliminary algorithmic frameworks for exact and approximate computation; and (5) a discussion of extensions to non‑convex polygons and higher dimensions. They identify open problems such as a full combinatorial classification for non‑convex regions, the development of polynomial‑time approximation schemes, and the generalization of their results to three‑dimensional opaque covers. Overall, the paper establishes a solid theoretical foundation for OCP in polygonal domains and opens multiple avenues for future research.
