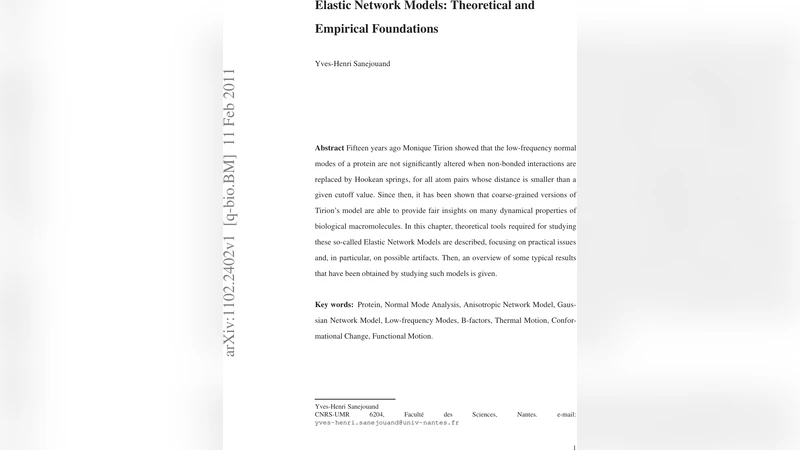

Elastic Network Models: Theoretical and Empirical Foundations

Fifteen years ago Monique Tirion showed that the low-frequency normal modes of a protein are not significantly altered when non-bonded interactions are replaced by Hookean springs, for all atom pairs whose distance is smaller than a given cutoff value. Since then, it has been shown that coarse-grained versions of Tirion’s model are able to provide fair insights on many dynamical properties of biological macromolecules. In this text, theoretical tools required for studying these so-called Elastic Network Models are described, focusing on practical issues and, in particular, on possible artifacts. Then, an overview of some typical results that have been obtained by studying such models is given.

💡 Research Summary

This paper provides a comprehensive review of Elastic Network Models (ENMs), tracing their origin to Monique Tirion’s 1996 discovery that replacing non‑bonded interactions with Hookean springs does not significantly alter the low‑frequency normal modes of proteins. The authors first revisit the theoretical foundations of Normal Mode Analysis (NMA), showing how the potential energy of a molecular system can be approximated by a quadratic Taylor expansion around an equilibrium configuration, leading to a mass‑weighted Hessian matrix whose eigenvalues and eigenvectors define the vibrational frequencies and mode shapes.

The core of ENM is then introduced: a highly simplified potential in which every pair of atoms (or Cα residues) separated by less than a cutoff distance R_c is connected by an identical spring with force constant k_enm. This formulation eliminates the need for energy minimization, avoids structural distortion, and yields a sparse Hessian that can be diagonalized efficiently even for very large biomolecular assemblies. Two principal variants are discussed. The Anisotropic Network Model (ANM) retains full three‑dimensional vector information, allowing prediction of both amplitudes and directions of motion. The Gaussian Network Model (GNM) replaces the detailed Hessian with a scalar adjacency matrix, sacrificing directional information but providing rapid estimates of fluctuation amplitudes (B‑factors).

The authors emphasize that the single adjustable parameter of ENMs is the cutoff distance R_c, typically chosen between 7 Å and 16 Å. If R_c is too small the network fragments into independent sub‑domains, producing unrealistic free‑rotation modes; if R_c is too large the adjacency matrix becomes fully connected, erasing topological information and reducing eigenvalues to trivial functions of system size. Nevertheless, low‑frequency modes are remarkably robust to moderate variations in R_c, and they account for 90–95 % of the total atomic displacements observed in all‑atom force‑field NMA.

Limitations of ENMs are acknowledged. They describe dynamics around a single energy minimum and cannot capture transitions between multiple minima on the potential energy surface. Solvent effects are not explicitly modeled, although implicit solvent schemes such as EEF1 have been combined with ENMs in recent work.

The review then surveys a broad spectrum of applications. ENMs have been used to explore protein folding pathways, to rationalize the tolerance of protein function to extensive sequence mutations, and to predict collective motions in massive complexes such as RNA polymerase II, ion channels, viral capsids, and the ribosome. In structural biology, ENM‑derived low‑frequency modes have been successfully fitted to low‑resolution electron microscopy maps, facilitating the placement of atomic models into cryo‑EM densities. Moreover, calculated fluctuation profiles correlate well with experimental B‑factors when appropriate R_c and k_enm values are selected.

Finally, the authors discuss future directions. Emerging strategies aim to integrate ENMs with ensemble‑based approaches, to incorporate temperature and solvent effects more realistically, and to employ machine‑learning techniques for optimal parameter selection. These developments promise to elevate ENMs from qualitative intuition tools to quantitative platforms capable of guiding protein engineering, drug design, and the interpretation of increasingly complex experimental data.
