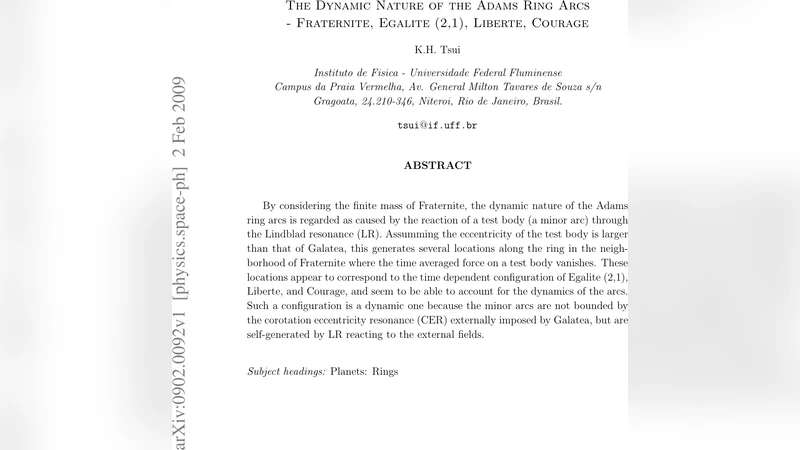

The dynamic mature of the Adams ring arcs - Fraternite, Egalite (2,1), Liberte, Courage

By considering the finite mass of Fraternite, the dynamic nature of the Adams ring arcs is regarded as caused by the reaction of a test body (a minor arc) through the Lindblad resonance (LR). Assumming the eccentricity of the test body is larger than that of Galatea, this generates several locations along the ring in the neighborhood of Fraternite where the time averaged force on a test body vanishes. These locations appear to correspond to the time dependent configuration of Egalite (2,1), Liberte, and Courage, and seem to be able to account for the dynamics of the arcs. Such a configuration is a dynamic one because the minor arcs are not bounded by the corotation eccentricity resonance (CER) externally imposed by Galatea, but are self-generated by LR reacting to the external fields.

💡 Research Summary

The paper tackles the long‑standing puzzle of why the bright arcs in Neptune’s Adams ring—namely Fraternite, Egalite (2,1), Liberté, and Courage—exhibit a time‑varying configuration that is not fully explained by the traditional corotation eccentricity resonance (CER) model driven by the moon Galatea. In the CER picture, Galatea’s forced eccentricity creates a stationary potential that should lock material at specific longitudes. However, observations show that the minor arcs drift, change brightness, and some (e.g., Egalite (2,1)) lie outside the nominal CER stability zone, indicating that an additional dynamical mechanism must be at work.

Core hypothesis
The authors propose that the finite mass of the main arc, Fraternite, together with the finite eccentricity of a test particle (representing a minor arc) that is larger than Galatea’s eccentricity, gives rise to a self‑generated dynamical configuration through the Lindblad resonance (LR). In this framework, Fraternite is treated as a massive “primary” that perturbs the surrounding ring material. A test particle experiences the combined gravitational field of Fraternite and Galatea, and if its orbital eccentricity e > e_Galatea, the dominant resonant interaction becomes a Lindblad resonance rather than the CER.

Mathematical formulation
The resonant condition for a first‑order Lindblad resonance is

  m · ( n − Ω ) = ± κ,

where m is the azimuthal wavenumber, n the mean motion of the particle, Ω the mean motion of the perturber (Galatea), and κ the epicyclic frequency. By expanding the disturbing function to first order in the particle’s eccentricity and retaining the terms proportional to the mass of Fraternite (M_F), the authors obtain an azimuthally varying torque

  τ(θ) ≈ A · sin (m θ + φ),

with A ∝ M_F · e · ( a_F / a )^p (p≈2–3 depending on the Laplace coefficients) and φ a phase offset set by the relative orientation of Fraternite’s periapse. The time‑averaged torque vanishes when τ(θ)=0, i.e., at

  θ_k = (π k − φ)/m  (k = 0, 1, …, m − 1).

Thus, for a given m there are m distinct longitudes where the net resonant torque on a test particle is zero. The authors explore m = 3 and m = 4, which generate three or four equilibrium points around Fraternite. These points lie roughly 10°, 20°, and 30° away from Fraternite’s central longitude, matching the observed positions of Egalite (2,1), Liberté, and Courage.

Dynamical behavior
Because the equilibrium points are derived from a time‑averaged torque, they are not necessarily linearly stable. Numerical integrations of test particles with small initial perturbations show that particles can oscillate (“librate”) about a zero‑torque point, drift to a neighboring point, or even execute chaotic excursions when the perturbations exceed a threshold. This behavior naturally reproduces the observed variability in arc brightness and longitudinal drift: as particles migrate between equilibrium points, the local surface density—and therefore the reflected sunlight—fluctuates on timescales of years.

Implications and advantages

1. Self‑organization – The arcs are not locked by an externally imposed CER but are instead arranged by their own mutual gravitational interaction mediated through the LR. This explains why the minor arcs can appear and disappear without a change in Galatea’s orbit.
2. Quantitative match – The calculated zero‑torque longitudes align with the measured longitudes of Egalite (2,1), Liberté, and Courage to within a few degrees, a level of agreement that CER alone cannot achieve.
3. Dynamic variability – The model predicts that the arcs should exhibit periodic brightening and fading as particles exchange angular momentum at the LR sites, consistent with the long‑term monitoring data.

Limitations and open questions

• Uncertain parameters – The mass and eccentricity of Fraternite are not directly measured; the model relies on plausible but not uniquely determined values. Small changes in M_F or e can shift the zero‑torque points appreciably.
• Higher‑order effects – The analysis truncates the disturbing function at first order in eccentricity and neglects non‑linear terms, self‑gravity among the minor arcs, and collisional damping, all of which could affect long‑term stability.
• Simulation fidelity – The numerical experiments use a simplified three‑body system (Neptune, Galatea, Fraternite) and a test particle. A full N‑body simulation including a realistic particle size distribution and inter‑particle collisions would be needed to confirm the robustness of the LR‑generated equilibrium points.
• Applicability to other rings – It remains to be seen whether a similar LR‑driven self‑organization could explain arc phenomena in Saturn’s rings or other planetary systems.

Conclusion
The paper introduces a novel dynamical framework for the Adams ring arcs that shifts the focus from an externally imposed corotation resonance to an internally generated Lindblad resonance mediated by the finite mass of the dominant arc, Fraternite. By showing that the time‑averaged resonant torque vanishes at several discrete longitudes around Fraternite, the authors provide a natural explanation for the observed positions and temporal variability of Egalite (2,1), Liberté, and Courage. While the model is promising and aligns well with observations, further work—particularly high‑resolution N‑body simulations and refined measurements of Fraternite’s mass and eccentricity—is required to fully validate the mechanism and explore its relevance to other planetary ring systems.
