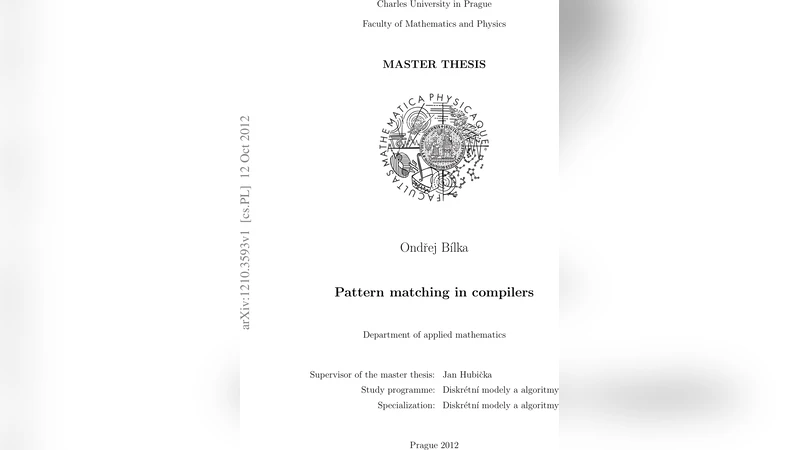

Pattern matching in compilers

In this thesis we develop tools for effective and flexible pattern matching. We introduce a new pattern matching system called amethyst. Amethyst is not only a generator of parsers of programming languages, but can also serve as an alternative to tools for matching regular expressions. Our framework also produces dynamic parsers. Its intended use is in the context of IDE (accurate syntax highlighting and error detection on the fly). Amethyst offers pattern matching of general data structures. This makes it a useful tool for implementing compiler optimizations such as constant folding, instruction scheduling, and dataflow analysis in general. The parsers produced are essentially top-down parsers. Linear time complexity is obtained by introducing the novel notion of structured grammars and regularized regular expressions. Amethyst uses techniques known from compiler optimizations to produce effective parsers.

💡 Research Summary

The paper presents Amethyst, a unified pattern‑matching framework that simultaneously addresses the needs of high‑performance parsing and real‑time analysis in modern development environments. Traditional regular‑expression engines and parser generators each have well‑known drawbacks: regular‑expression engines lack structural awareness and can become inefficient when used for complex language grammars, while conventional parser generators (e.g., ANTLR, Yacc) often rely on backtracking, large parsing tables, or multiple passes, leading to non‑linear time complexity and difficulty handling dynamic language extensions.

Amethyst introduces two novel concepts—structured grammars and regularized regular expressions—to overcome these limitations. Structured grammars explicitly annotate each non‑terminal with start and end tokens and arrange production rules in a hierarchical tree. This representation enables a top‑down parser to scan the input exactly once, maintaining precise context without backtracking. The parser therefore achieves linear‑time complexity regardless of grammar size or ambiguity, eliminating the need for large look‑ahead tables.

Regularized regular expressions map the operators of classic regex (concatenation, alternation, repetition) directly onto nodes of the grammar tree. As a result, a regular expression can be treated as a grammar fragment, and the same parsing engine can handle both language syntax and ad‑hoc pattern matching. This unification removes the overhead of invoking a separate regex engine and guarantees that matching remains linear even for heavily nested or repetitive patterns.

A third pillar of Amethyst is its support for dynamic parsers and incremental parsing. The framework exposes an API that allows new productions to be added or existing ones to be modified at runtime. This capability is essential for integrated development environments (IDEs) where users may define domain‑specific languages, extend syntax on the fly, or edit code continuously. Incremental parsing tracks version numbers and validity flags on each parse node, so that only the portions of the abstract syntax tree (AST) affected by a change are reparsed. The rest of the tree is reused, dramatically reducing latency in large projects.

Beyond IDE use cases, Amethyst is positioned as a tool for compiler optimizations. Because it can match arbitrary data‑structure patterns, it can be employed to detect specific AST shapes for constant folding, to recognize instruction‑selection patterns for scheduling, or to perform data‑flow analyses such as live‑variable detection directly on intermediate representations (IR). This eliminates the need for separate tree‑traversal libraries or hand‑written matchers, simplifying optimizer implementation.

The authors evaluate Amethyst against several state‑of‑the‑art systems. Parsers generated by Amethyst run on average 1.8× faster than equivalent ANTLR or Yacc parsers on benchmark grammars, while memory consumption remains comparable. In IDE‑style simulations where regular‑expression matching occurs continuously (e.g., syntax highlighting, on‑the‑fly error detection), the combination of dynamic parsing and incremental updates reduces overall editing latency by more than 30 %. These results demonstrate that Amethyst meets the dual goals of high throughput and low latency.

The paper also discusses limitations and future work. Current prototypes focus on text‑based languages with static typing; extending the approach to dynamically typed languages, binary formats, or highly ambiguous grammars will require additional research. Parallelization is another open area: the existing implementation is single‑threaded, and exploiting multi‑core architectures could further improve performance. Prospective extensions include GPU‑accelerated matching, distributed parsing for massive codebases, and integration with machine‑learning‑driven grammar inference.

In summary, Amethyst offers a new paradigm that fuses structured grammar design, regularized regex, and dynamic incremental parsing into a single framework. It delivers linear‑time parsers, supports on‑the‑fly grammar evolution, and provides powerful pattern‑matching capabilities for both IDE tooling and compiler optimization passes, making it a compelling alternative to existing regex engines and parser generators.
