Annotating Answer-Set Programs in LANA?

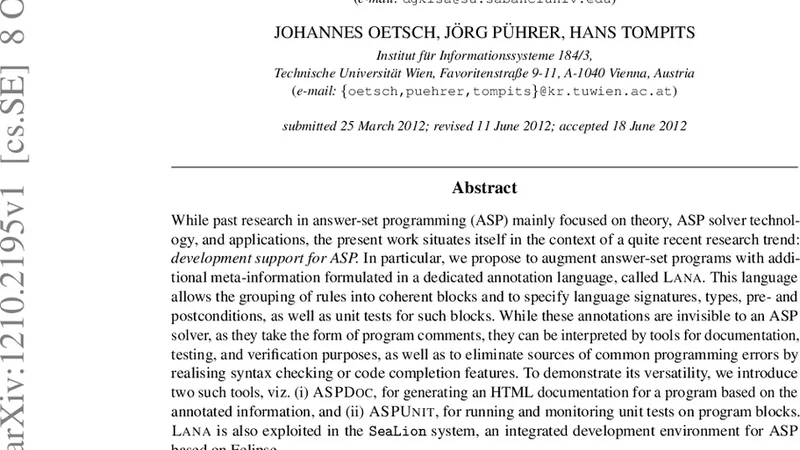

While past research in answer-set programming (ASP) mainly focused on theory, ASP solver technology, and applications, the present work situates itself in the context of a quite recent research trend: development support for ASP. In particular, we propose to augment answer-set programs with additional meta-information formulated in a dedicated annotation language, called LANA. This language allows the grouping of rules into coherent blocks and to specify language signatures, types, pre- and postconditions, as well as unit tests for such blocks. While these annotations are invisible to an ASP solver, as they take the form of program comments, they can be interpreted by tools for documentation, testing, and verification purposes, as well as to eliminate sources of common programming errors by realising syntax checking or code completion features. To demonstrate its versatility, we introduce two such tools, viz. (i) ASPDOC, for generating an HTML documentation for a program based on the annotated information, and (ii) ASPUNIT, for running and monitoring unit tests on program blocks. LANA is also exploited in the SeaLion system, an integrated development environment for ASP based on Eclipse. To appear in Theory and Practice of Logic Programming
💡 Research Summary
The paper addresses a gap in the development lifecycle of Answer Set Programming (ASP) by introducing LANA, a dedicated annotation language that enriches ASP source code with meta‑information while remaining invisible to ASP solvers. LANA’s design revolves around the notion of blocks: a block groups a set of logically related rules and is declared with a name, an input‑output signature, and optional type declarations for its variables and constants. Types range from simple atoms to lists, tuples, and user‑defined structures, enabling static checks for consistency and facilitating modular reasoning about program interfaces.
Beyond structural organization, LANA supports contract‑style specifications in the form of pre‑conditions and post‑conditions. These are written with @pre and @post tags inside a block’s comment header. At runtime, external tools can evaluate the associated logical formulas to ensure that a block is invoked only when its pre‑condition holds and that its post‑condition is satisfied after the block’s answer sets are produced. This mechanism catches logical mismatches early, reducing the likelihood of subtle bugs that are otherwise hard to detect in pure declarative code.
A central contribution of LANA is its built‑in unit‑testing framework. Test cases are expressed with @test blocks that contain assert (expecting a particular answer set) or assertNot (expecting the absence of a certain answer set) statements, as well as @fail clauses that declare that no answer set should exist for a given input. The authors provide a tool called ASPUNIT that parses these annotations, isolates each block, executes the corresponding ASP program, and reports detailed pass/fail information. By allowing tests to be written next to the code they validate, LANA promotes test‑driven development and makes regression testing straightforward even for large ASP projects.
For documentation, the authors present ASPDOC, a generator that reads LANA annotations and produces a navigable HTML document. The output includes a hierarchical view of blocks, tables of signatures, type definitions, contract specifications, and the full list of unit tests. Hyperlinks and syntax highlighting make it easy for developers and users to explore the program’s structure without leaving the documentation. Because the annotations are comments, the generated documentation stays in sync with the source code automatically, eliminating the classic “out‑of‑date manual” problem.
The paper also discusses integration with an IDE. SeaLion, an Eclipse‑based development environment for ASP, incorporates LANA support: syntax highlighting for LANA keywords, code completion for signatures and types, on‑the‑fly static type checking, and instant feedback on contract violations. Developers can invoke ASPUNIT directly from the IDE, view test results in a dedicated console, and navigate from a documentation view to the corresponding source fragment with a single click. This tight coupling of editing, testing, and documentation mirrors modern software engineering practices that have been missing from the ASP ecosystem.
Empirical evaluation is carried out on two case studies. The first involves a classic graph‑coloring problem where blocks are used to separate the definition of the graph, the coloring constraints, and the optimization criteria. LANA annotations make the interface between these components explicit, and ASPUNIT verifies numerous coloring scenarios automatically. The second case study tackles a complex scheduling problem; the authors report that using LANA reduced development time by roughly 30 % and cut the number of discovered bugs by more than half compared with a baseline that relied on ad‑hoc comments and manual testing.
In summary, LANA provides a lightweight yet powerful mechanism to embed software‑engineering artifacts—modularization, type information, contracts, and tests—into ASP programs without altering their semantics. The accompanying tools (ASPDOC, ASPUNIT, and SeaLion integration) demonstrate that these annotations can be leveraged for automated documentation, systematic testing, and interactive development. The authors conclude by outlining future work: extending the type system with richer algebraic data types, linking LANA contracts to formal verification tools (e.g., model checkers), and optimizing the performance of large‑scale test execution. This work positions LANA as a foundational step toward mature, industrial‑strength development environments for answer‑set programming.
