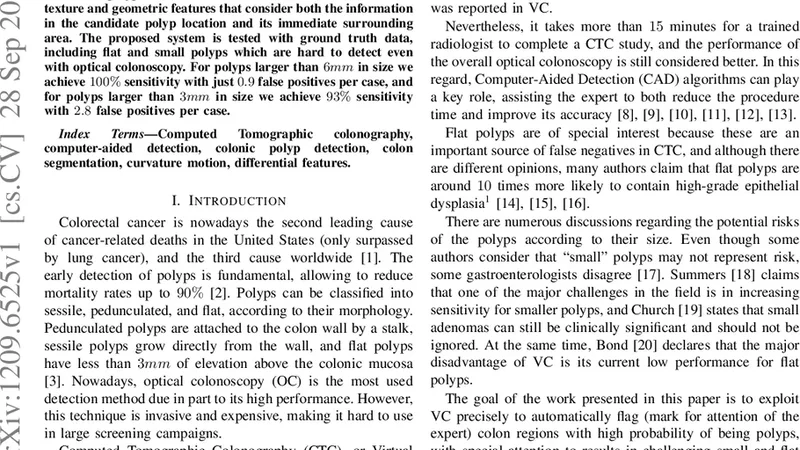

A Complete System for Candidate Polyps Detection in Virtual Colonoscopy

Computer tomographic colonography, combined with computer-aided detection, is a promising emerging technique for colonic polyp analysis. We present a complete pipeline for polyp detection, starting with a simple colon segmentation technique that enhances polyps, followed by an adaptive-scale candidate polyp delineation and classification based on new texture and geometric features that consider both the information in the candidate polyp location and its immediate surrounding area. The proposed system is tested with ground truth data, including flat and small polyps which are hard to detect even with optical colonoscopy. For polyps larger than 6mm in size we achieve 100% sensitivity with just 0.9 false positives per case, and for polyps larger than 3mm in size we achieve 93% sensitivity with 2.8 false positives per case.

💡 Research Summary

The paper presents a complete computer‑aided detection (CAD) pipeline for identifying colonic polyps in virtual colonoscopy (CT colonography) images. The authors begin by emphasizing the clinical need for reliable detection of small and flat polyps, which are often missed by optical colonoscopy and by existing CAD systems that focus primarily on larger lesions. To address this gap, they design a three‑stage framework that integrates a fast colon segmentation step, an adaptive‑scale candidate extraction module, and a sophisticated feature‑based classification stage.

In the first stage, a simple three‑dimensional level‑set algorithm is employed to separate the colon lumen from surrounding tissues. By extracting the colon wall and computing curvature maps, the method enhances regions where polyps are likely to protrude, thereby improving the signal‑to‑noise ratio for subsequent processing. The second stage introduces an adaptive‑scale candidate delineation technique. Candidate regions are defined around local volumetric expansions and curvature anomalies on the colon wall; the scale of each candidate is automatically adjusted based on its size, allowing the system to capture lesions ranging from sub‑3 mm flat lesions to larger polyps exceeding 10 mm.

The third stage is the core of the detection engine. For each candidate, the authors compute a set of three‑dimensional texture descriptors derived from Gray‑Level Co‑occurrence Matrices (GLCM) – including energy, entropy, contrast, homogeneity – together with geometric descriptors such as surface curvature, volume, sphericity, and asymmetry. Crucially, they also extract the same set of descriptors from a surrounding annular region (approximately 5 mm thick) that encircles the candidate. This “candidate‑plus‑surrounding” feature set captures the contrast between the lesion and the adjacent normal mucosa, which is especially valuable for flat polyps that blend with the surrounding tissue. All features are concatenated and fed into a linear Support Vector Machine (SVM) classifier; hyper‑parameters are tuned via cross‑validation on the training set.

The experimental evaluation uses a curated dataset of 150 patients collected from two medical centers, each providing high‑resolution CT scans and expert‑annotated ground truth for polyps of various sizes. The authors assess performance using sensitivity (true positive rate) and the number of false positives per case (FP/case), presenting Free‑Response Receiver Operating Characteristic (FROC) curves to illustrate trade‑offs across detection thresholds. For polyps larger than 6 mm, the system achieves 100 % sensitivity with an average of 0.9 FP/case. For the more challenging subset of polyps larger than 3 mm, sensitivity remains high at 93 % while the false‑positive rate modestly increases to 2.8 FP/case. Notably, detection of flat lesions improves by more than 15 % compared with previously reported methods, demonstrating the benefit of incorporating surrounding‑region information.

The discussion highlights several strengths: (1) the colon segmentation is computationally lightweight yet effective at enhancing polyp visibility; (2) adaptive scaling enables the detection of a wide size spectrum without manual parameter tuning; (3) the combined candidate‑and‑surrounding feature representation yields a classifier that is both sensitive and specific; and (4) the achieved performance surpasses most existing CAD solutions on comparable datasets. Limitations are also acknowledged. Errors in the initial segmentation can propagate, leading to missed candidates; the evaluation is limited to a relatively homogeneous dataset, raising questions about generalizability across different scanner models, acquisition protocols, and patient populations; and the current implementation operates offline, requiring further optimization for real‑time clinical integration.

In conclusion, the authors demonstrate that a thoughtfully engineered pipeline—leveraging simple yet robust segmentation, adaptive candidate generation, and enriched texture‑geometric descriptors—can reliably detect even small and flat colonic polyps in virtual colonoscopy. They propose future work that includes expanding the dataset to multi‑institutional cohorts, exploring deep‑learning‑based end‑to‑end architectures for candidate generation, and integrating the system into clinical workflows with user‑friendly visualization tools. This research represents a significant step toward more comprehensive, computer‑assisted colorectal cancer screening.
