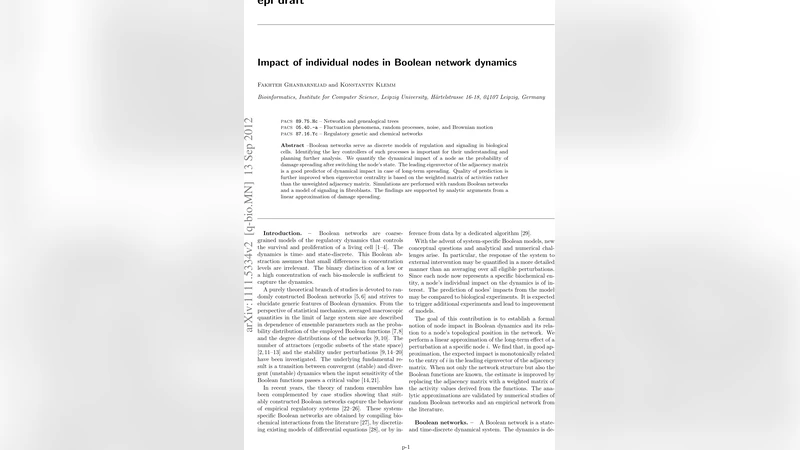

Impact of individual nodes in Boolean network dynamics

Boolean networks serve as discrete models of regulation and signaling in biological cells. Identifying the key controllers of such processes is important for understanding the dynamical systems and planning further analysis. Here we quantify the dynamical impact of a node as the probability of damage spreading after switching the node’s state. We find that the leading eigenvector of the adjacency matrix is a good predictor of dynamical impact in the case of long-term spreading. This so-called eigenvector centrality is also a good proxy measure of the influence a node’s initial state has on the attractor the system eventually arrives at. Quality of prediction is further improved when eigenvector centrality is based on the weighted matrix of activities rather than the unweighted adjacency matrix. Simulations are performed with ensembles of random Boolean networks and a Boolean model of signaling in fibroblasts. The findings are supported by analytic arguments from a linear approximation of damage spreading.

💡 Research Summary

This paper investigates how to quantify and predict the influence of individual nodes in Boolean network (BN) dynamics, a discrete modeling framework widely used for gene regulatory and signaling systems. The authors define the “dynamical impact” of a node i as the probability that a single‑node perturbation (flipping its Boolean state) spreads for at least t time steps, denoted h_i(t). To compute this probability they introduce the notion of activity α_ij, the chance that a perturbation at node i causes a change at node j in the next update, obtained by averaging a Boolean partial derivative over all 2^N possible states. Collecting all α_ij into an activity matrix ℵ, they approximate the evolution of damage probabilities p(t) by the linear recursion p(t)=ℵ^T p(t‑1), which is exact for tree‑like downstream structures and serves as a reasonable mean‑field approximation otherwise.

Iterating this relation yields p(t)=(ℵ^T)^t p(0). In the long‑time limit the dominant eigenvalue λ and its associated left and right eigenvectors (ℓ, r) dominate the dynamics (Perron‑Frobenius theorem). Consequently, the projection of the initial damage vector onto the right eigenvector r determines the asymptotic amplitude of damage spreading. Thus, the component r_i can be interpreted as a predictor of the long‑term dynamical impact of node i. When only the network topology is known, the activity matrix is replaced by the unweighted adjacency matrix A (α_ij≠0 → 1), and the left eigenvector e of A is used as a proxy. The authors also consider local centralities: out‑degree d_i and strength σ_i (the sum of outgoing activities).

The predictive power of these four centralities (d, σ, r, e) is evaluated on ensembles of random Boolean networks (N=500, average indegree K=2) while varying the average sensitivity ⟨s⟩ of the Boolean functions (a measure of how many inputs on average affect the output). For long‑term impact (t=100 or t=N) the activity‑matrix eigenvector r consistently yields the highest rank correlation with h_i(t), especially in the super‑critical regime (⟨s⟩>1). Near the critical point (⟨s⟩≈1) all measures show a temporary boost in predictive ability; for very low sensitivity (⟨s⟩≈0) r’s performance drops. For short‑term impact (t=1) the strength σ is the best predictor because damage has not yet propagated beyond immediate neighbors. Out‑degree performs worse than σ but better than the eigenvectors in this regime. The authors repeat the simulations with asynchronous stochastic updates and find qualitatively similar patterns, though the super‑critical predictions improve slightly under asynchrony, reflecting the role of update order in damage healing.

Beyond generic damage spreading, the paper introduces “attractor impact” h_i^0, the probability that a perturbation changes the attractor (steady‑state or limit cycle) ultimately reached by the system. Using the same four centralities, the authors find that r again outperforms the others, correctly identifying the most influential nodes in about three‑quarters of the random network instances.

To test ecological validity, the methodology is applied to a published Boolean model of fibroblast signal transduction (N=139, 548 directed edges, 59 self‑loops). The model contains many intertwined feedback loops, making it a challenging test case. Both the full network and a reduced core (excluding nine input nodes with self‑coupling) are examined under synchronous and asynchronous updates, and for short‑ and long‑term horizons. In all scenarios, the activity‑matrix eigenvector r achieves the highest predictive scores, with long‑term synchronous predictions reaching a rank correlation of 0.92. The results mirror those obtained for random ensembles, confirming that eigenvector centrality based on activity captures essential dynamical influence even in realistic biological networks.

In conclusion, the study demonstrates that a node’s long‑term dynamical impact in Boolean networks can be accurately estimated from purely topological information when enriched with activity weights derived from the Boolean functions. The leading eigenvector of the activity matrix (or of the adjacency matrix when activities are unavailable) serves as a powerful, computationally cheap proxy for exhaustive simulation. This insight offers a practical tool for identifying key regulatory elements, guiding experimental perturbations, and informing model reduction strategies in systems biology.
