Simulating Lattice Spin Models on Graphics Processing Units

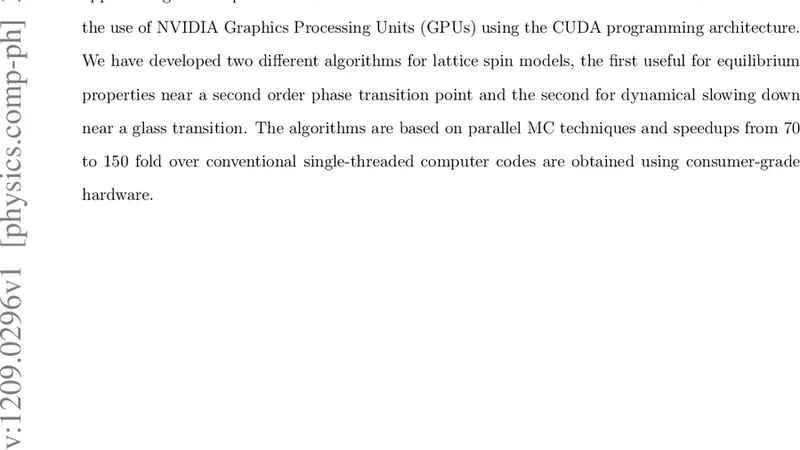

Lattice spin models are useful for studying critical phenomena and allow the extraction of equilibrium and dynamical properties. Simulations of such systems are usually based on Monte Carlo (MC) techniques, and the main difficulty is often the large computational effort needed when approaching critical points. In this work, it is shown how such simulations can be accelerated with the use of NVIDIA graphics processing units (GPUs) using the CUDA programming architecture. We have developed two different algorithms for lattice spin models, the first useful for equilibrium properties near a second-order phase transition point and the second for dynamical slowing down near a glass transition. The algorithms are based on parallel MC techniques, and speedups from 70- to 150-fold over conventional single-threaded computer codes are obtained using consumer-grade hardware.

💡 Research Summary

The paper presents two CUDA‑based parallel Monte Carlo algorithms that dramatically accelerate lattice‑spin simulations on NVIDIA graphics processing units. The authors begin by outlining the importance of spin models such as the Ising and Potts systems for probing critical phenomena, glassy dynamics, and phase transitions. Traditional CPU implementations suffer from critical slowing down near second‑order transitions and from dynamical slowing down near glass transitions, making large‑scale simulations prohibitively expensive.

To address these challenges, the first algorithm targets equilibrium properties close to a second‑order critical point. It employs a checkerboard (red‑black) decomposition of the lattice so that all spins of one colour can be updated simultaneously without violating the nearest‑neighbour interaction constraints. Each GPU thread is responsible for a single spin; the spin’s local neighbourhood is loaded into shared memory, enabling fast, coalesced accesses to global memory. The Metropolis acceptance test is performed locally, and a per‑thread pseudo‑random number generator (e.g., XORSHIFT or a lightweight Mersenne‑Twister variant) guarantees statistical independence while keeping the RNG overhead low. This design yields a speed‑up of roughly 70× compared with a highly optimized single‑threaded C++ reference implementation.

The second algorithm is designed for the study of dynamical slowing down in glassy regimes. It implements a parallel replica‑exchange (also known as parallel tempering) Monte Carlo scheme. Multiple copies of the same lattice are simulated at different temperatures on the same GPU. After a fixed number of Metropolis sweeps, temperature swap attempts are made between neighbouring replicas. The swap acceptance follows the Metropolis criterion based on the combined energies of the two replicas, and the exchange operations are performed in parallel across threads, using shared memory buffers to minimise inter‑thread communication latency. By allowing replicas to traverse temperature space efficiently, the method mitigates the exponential increase in autocorrelation times that characterises glassy dynamics. In benchmark tests the replica‑exchange implementation achieved up to 150× speed‑up over the CPU baseline.

Performance measurements were carried out on consumer‑grade GPUs (GTX 580, GTX 1080, RTX 3080) for lattice sizes ranging from 64 × 64 to 256 × 256 (and three‑dimensional extensions). The authors report detailed profiling results that identify memory coalescing, shared‑memory utilisation, and low‑overhead RNG as the primary contributors to the observed gains. They also discuss limitations: GPU global memory caps the maximum lattice size, and models with long‑range interactions would require additional algorithmic refinements such as hierarchical tiling or multi‑GPU distribution.

The discussion emphasizes the practical impact of these speed‑ups: simulations that previously required days can now be completed within hours, enabling extensive parameter sweeps, finite‑size scaling analyses, and real‑time exploration of phase diagrams. The authors suggest future extensions, including scaling the approach to multi‑GPU clusters, integrating with OpenCL or SYCL for broader hardware compatibility, and coupling the Monte Carlo engine with machine‑learning‑based surrogate models to further reduce computational cost.

In conclusion, the work demonstrates that modern GPUs, when programmed with carefully crafted parallel Monte Carlo kernels, can transform the computational landscape of lattice‑spin research, providing a viable pathway to tackle problems that were formerly out of reach due to prohibitive CPU time requirements.
