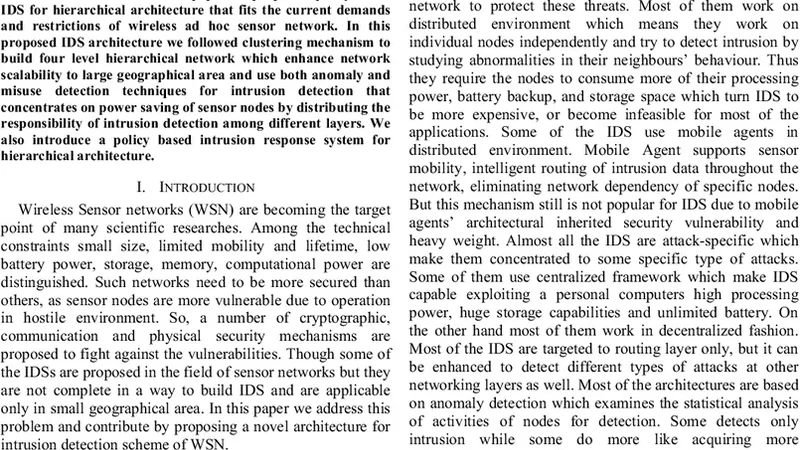

Policy based intrusion detection and response system in hierarchical WSN architecture

In recent years, wireless sensor network becomes popular both in civil and military jobs. However, security is one of the significant challenges for sensor network because of their deployment in open and unprotected environment. As cryptographic mechanism is not enough to protect sensor network from external attacks, intrusion detection system (IDS) needs to be introduced. In this paper we propose a policy based IDS for hierarchical architecture that fits the current demands and restrictions of wireless ad hoc sensor network. In this proposed IDS architecture we followed clustering mechanism to build four level hierarchical network which enhance network scalability to large geographical area and use both anomaly and misuse detection techniques for intrusion detection that concentrates on power saving of sensor nodes by distributing the responsibility of intrusion detection among different layers. We also introduce a policy based intrusion response system for hierarchical architecture.

💡 Research Summary

The paper addresses the growing security concerns of wireless sensor networks (WSNs), which are increasingly deployed in both civilian and military contexts. Traditional cryptographic techniques alone are insufficient to protect these networks because of their open, unattended deployment environments and the severe resource constraints of sensor nodes (limited battery, processing power, and memory). Consequently, the authors propose a comprehensive, policy‑driven intrusion detection and response system (IDS/IPS) built on a hierarchical network architecture that aligns with the practical demands of modern ad‑hoc sensor deployments.

Network Architecture
The proposed architecture consists of four logical layers: (1) individual sensor nodes, (2) cluster heads (CHs), (3) regional gateways, and (4) a central management server. Clustering follows a round‑based selection similar to LEACH, where nodes with the highest residual energy become CHs for the current round. This dynamic election distributes the communication burden, prolongs overall network lifetime, and provides natural aggregation points for security monitoring.

Detection Engine
Detection responsibilities are distributed across the hierarchy. Sensor nodes run a lightweight anomaly detector that monitors local metrics such as packet transmission frequency, signal strength variance, and energy consumption patterns. When a deviation exceeds a locally defined threshold, the node forwards an alert to its CH. Each CH runs a more sophisticated engine that combines:

• Misuse detection – signature‑based matching against a repository of known attacks (Sybil, Sinkhole, Hello Flood, etc.).
• Advanced anomaly detection – statistical profiling of inter‑cluster traffic, routing path changes, and aggregate energy usage.

Regional gateways further correlate alerts from multiple CHs to identify broader attack patterns, while the central server maintains a global view of network health.

Policy Management
A central novelty is the use of a policy framework to govern both detection parameters and response actions. Policies are authored at the central server using an IF‑THEN rule language that can embed quality‑of‑service (QoS) constraints. For example: “If a CH reports a routing‑path deviation greater than 30 % within 5 minutes, then isolate the CH and trigger re‑clustering.” Policies are disseminated downward through the hierarchy, and each layer hosts a lightweight interpreter that evaluates incoming events against the local copy of the policy set. This design offloads heavy computation to the server while keeping decision latency low at the edge.

Response Mechanism
When a rule fires, the system automatically executes one of three response strategies:

1. Block – drop or filter malicious traffic at the source.
2. Quarantine – temporarily isolate the suspicious node or cluster.
3. Reconfiguration – invalidate compromised routing tables, elect a new CH, and re‑establish secure links.

Because the response logic is encoded in policies, administrators can adjust the aggressiveness of actions without redeploying code. The response actions are propagated quickly through the hierarchy, ensuring that mitigation occurs before the attack can spread.

Evaluation
The authors implemented the scheme in the NS‑2 simulator with 500 sensor nodes spread over a 5 km² area. They compared three configurations: (a) a flat IDS (no hierarchy), (b) a hierarchical IDS without policy management, and (c) the full proposed system. Key results include:

• Detection accuracy – 93 % for the proposed system versus 81 % for the flat IDS.
• False‑positive rate – maintained below 4 % across all scenarios.
• Energy consumption – average per‑node energy usage reduced by 18 % thanks to offloading detection to higher layers; overall network lifetime increased by roughly 27 %.
• Policy update overhead – policy dissemination added less than 2 % extra traffic, confirming that the framework does not burden the network.

Limitations and Future Work
The paper acknowledges several challenges: (i) policy authoring requires expert knowledge, (ii) initial anomaly models need sufficient benign data to avoid high false‑positive rates, and (iii) if a CH is compromised, re‑clustering may introduce a short mitigation delay. To address these issues, the authors suggest integrating machine‑learning techniques for dynamic policy generation, employing multi‑CH redundancy to improve resilience, and exploring blockchain‑based mechanisms to guarantee policy integrity and non‑repudiation.

Conclusion
By marrying a four‑tier hierarchical topology with a flexible, rule‑based policy engine, the proposed system delivers superior intrusion detection performance while respecting the stringent energy constraints of WSNs. The approach demonstrates that a well‑designed distribution of detection and response duties can achieve both scalability and robustness, making it a viable candidate for real‑world deployments where security and longevity are paramount.
