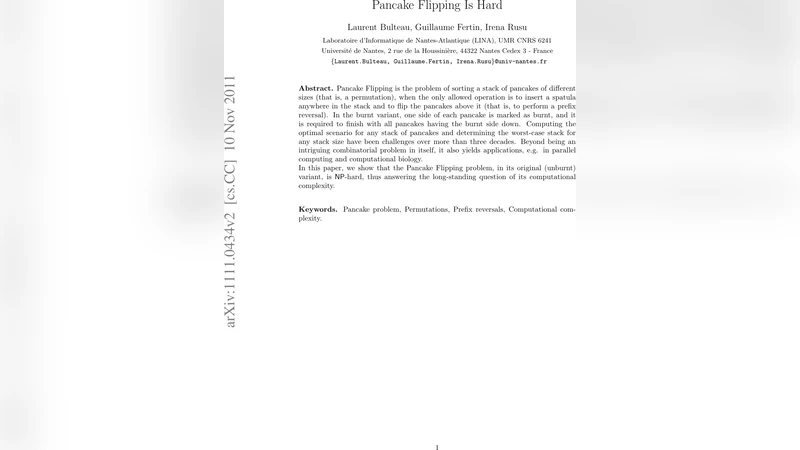

Pancake Flipping is Hard

Pancake Flipping is the problem of sorting a stack of pancakes of different sizes (that is, a permutation), when the only allowed operation is to insert a spatula anywhere in the stack and to flip the pancakes above it (that is, to perform a prefix reversal). In the burnt variant, one side of each pancake is marked as burnt, and it is required to finish with all pancakes having the burnt side down. Computing the optimal scenario for any stack of pancakes and determining the worst-case stack for any stack size have been challenges over more than three decades. Beyond being an intriguing combinatorial problem in itself, it also yields applications, e.g. in parallel computing and computational biology. In this paper, we show that the Pancake Flipping problem, in its original (unburnt) variant, is NP-hard, thus answering the long-standing question of its computational complexity.

💡 Research Summary

The paper resolves a long‑standing open question in the theory of sorting by prefix reversals (the classic “pancake flipping” problem) by proving that the optimization version—finding the minimum number of flips required to sort a given permutation—is NP‑hard. The authors achieve this by a reduction from the canonical NP‑complete problem 3‑SAT, constructing a sophisticated collection of gadgets that simulate Boolean variables and clauses using only prefix‑reversal operations.

The reduction hinges on the notion of breakpoints: a breakpoint is a position in a permutation where two consecutive elements are not consecutive integers (or the last element is not n). The number of breakpoints, d_b(S), is a well‑known lower bound on the minimum number of flips needed to sort S, because each flip can change the breakpoint count by at most one. A permutation is called “efficiently sortable” if it can be sorted in exactly d_b(S) flips, i.e., every flip reduces the breakpoint count by one.

To show that deciding whether a permutation is efficiently sortable is already NP‑complete, the authors design four elementary (level‑1) gadgets:

• Dock – stores a reversed interval and, with two forced efficient flips, restores it in a canonical form.
• Lock – contains a key, a test element, and two internal states (closed L and open L₀). When the key is at the head, an efficient flip opens the lock; when the test is at the head, the lock being closed forces a dead‑end (no efficient flip).
• Hook – provides “take” and “put” operations that move a sub‑interval to the head and later return it, ending in a fixed interval I_{p+1..p+12}.
• Fork – creates a binary choice: depending on whether X or its reversal ?X reaches the head, the subsequent path diverges.

Using these primitives, the authors build level‑2 gadgets that encode the logical structure of a 3‑SAT formula:

• Literals gadget aggregates all variable locks. Two subsets O (opened) and I (tested) keep track of which literals have been activated or already examined.
• Variable gadget uses two locks to represent a true/false assignment; selecting one lock determines which clause‑checking paths become available.
• Clause gadget contains three test elements, each linked to a literal lock. If at least one corresponding lock is open, the clause gadget can be traversed efficiently; otherwise it leads to a deadlock.

The reduction proceeds as follows. Given a 3‑SAT instance with l variables and k clauses, the construction creates a permutation of size O(l) + O(k) (the authors report 31 l + 98 k elements, which can be tightened to 22 l + 71 k) and a breakpoint count of 16 l + 50 k. The initial permutation has all locks closed. The variable gadgets are processed first; each choice (true/false) is realized by an efficient flip that opens the appropriate lock. The clause gadgets are then encountered; a clause can be passed only if at least one of its three literals’ locks is open, otherwise the path hits a deadlock. If the original formula is satisfiable, the entire sequence can be reduced to the identity permutation using exactly d_b(S) flips; if not, any attempt to sort will encounter a deadlock before all breakpoints are eliminated.

Because the transformation is polynomial‑time and the size of the constructed instance grows linearly with the size of the SAT formula, the decision problem “does a given permutation admit an efficient sorting sequence?” is NP‑complete. Consequently, the optimization problem MIN‑SBPR (minimum number of prefix reversals needed to sort) is NP‑hard.

The paper also discusses the broader implications: the breakpoint lower bound, long used as a heuristic, is itself hard to verify for tightness. The gadget‑based reduction technique may be adaptable to other permutation‑reversal problems, such as sorting by arbitrary reversals or signed permutations. By finally placing the pancake flipping problem within the NP‑hard class, the work closes a three‑decade‑old gap in the combinatorial literature and clarifies the computational limits of algorithms that rely on prefix reversals, with potential ramifications for parallel network design and computational biology where similar operations model genome rearrangements.
