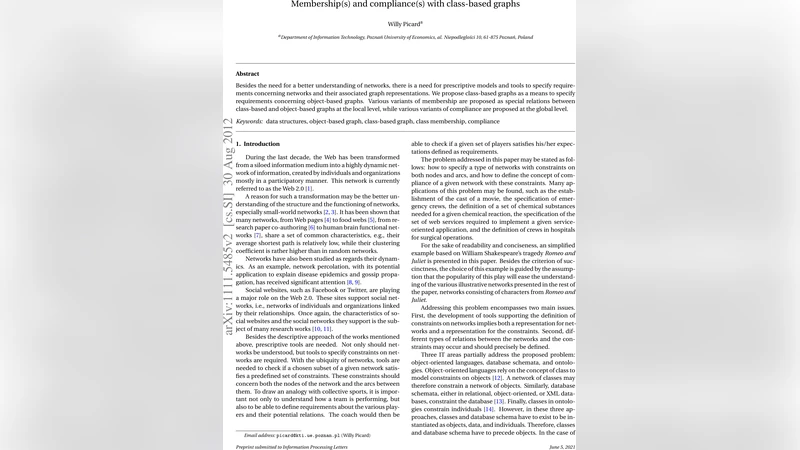

Membership(s) and compliance(s) with class-based graphs

Besides the need for a better understanding of networks, there is a need for prescriptive models and tools to specify requirements concerning networks and their associated graph representations. We propose class-based graphs as a means to specify requirements concerning object-based graphs. Various variants of membership are proposed as special relations between class-based and object-based graphs at the local level, while various variants of compliance are proposed at the global level.

💡 Research Summary

The paper addresses a gap in network modeling: while many studies focus on describing network structures, there is a growing need for prescriptive tools that can specify and verify constraints on both nodes and edges of a network. Existing approaches—object‑oriented programming, database schemas, and ontologies—assume that classes or schemas are defined before the objects or data they constrain, which does not fit scenarios where a network already exists and constraints are imposed later (e.g., forming a movie cast, assembling emergency crews, or configuring web services).

To solve this, the authors introduce two complementary graph formalisms. An object‑based graph represents a concrete network: each node and edge is an object consisting of a set of named properties. Special property names “src” and “dst” identify the source and destination nodes of an edge. Formally, an object‑based graph g = ⟨N, A⟩ contains object‑based nodes N and object‑based arcs A, where each arc a = ⟨n_src, n_dst, P⟩ stores its endpoints and any additional properties.

A class‑based graph serves as a schema for such networks. A class is a set of property constraints; each constraint pairs a property name with a predicate that must be satisfied by the corresponding property value. Nodes in a class‑based graph are classes without “src” or “dst” constraints, while arcs are classes that contain exactly two constraints named “src” and “dst”. These constraints are themselves instanceOf predicates pointing to the source and destination node classes. Thus a class‑based graph gα = ⟨Nα, Aα⟩ defines permissible node types and permissible edge types, together with the allowed relationships between them.

The core contribution lies in defining membership relations that capture how a concrete object (node or edge) relates to a class. Five variants are introduced:

1. Strict membership – an object satisfies all property constraints of a class (for nodes this coincides with the usual instance‑of relation).
2. Left membership – strict membership plus the source node of an edge is a strict member of the source‑node class.
3. Right membership – strict membership plus the destination node of an edge is a strict member of the destination‑node class.
4. Full membership – both left and right membership hold; the authors prove that full membership is equivalent to the edge being an instance of the edge class.
5. Relational membership – a node is a relational member of a class if it is a strict member and, for every outgoing (resp. incoming) class‑based edge from (to) that class, there exists at least one concrete outgoing (resp. incoming) edge that is a left (resp. right) member.

These definitions allow fine‑grained reasoning about local compliance: an edge may satisfy the property constraints of a class without being correctly connected to the appropriate node types, a situation captured by strict but not left/right membership.

Building on the local notions, the authors define graph‑level compliance. An object‑based graph complies with a class‑based graph if every node and edge satisfies a chosen membership variant. The strongest form—full compliance—requires every node to be a relational member and every edge to be a full member, guaranteeing that the concrete graph is a perfect instance of the schema. Weaker forms (e.g., all nodes strict, edges only left) correspond to partial compliance, useful when only some constraints need to be enforced.

The paper illustrates the theory with a running example based on Shakespeare’s Romeo and Juliet. Nodes such as “Romeo”, “Juliet”, and “Tybalt” are objects with properties like name, house, and sex. Corresponding classes (“Mr. Montagueα”, “Capuletα”, etc.) constrain these properties. Various edges (e.g., “has killed”, “feelings”) are examined under the different membership definitions, showing how an edge can be a strict member of a class but fail left or right membership, and how Juliet becomes a relational member of “Miss Capuletα” but not of “Capuletα”.

The authors claim three main contributions: (1) formal definitions of object‑based and class‑based graphs; (2) a taxonomy of membership relations for nodes and edges; (3) a taxonomy of compliance relations for whole graphs. They argue that this framework overcomes the limitation of existing modeling techniques by allowing constraints on edges to be expressed explicitly and by supporting post‑hoc specification of constraints on already existing networks.

Limitations are acknowledged. The paper does not provide concrete algorithms or complexity analyses for checking compliance, nor does it discuss how to handle dynamic updates (addition/removal of nodes/edges) efficiently. The predicate language for property constraints is left abstract, which may affect practical implementation.

In conclusion, the work proposes a novel, mathematically grounded approach to specifying and verifying structural constraints on networks. By separating the concrete network (object‑based graph) from its schema (class‑based graph) and by introducing nuanced membership notions, it offers a flexible tool for domains where network topology and role constraints must be validated—such as social media analysis, collaborative team formation, service composition, and biomedical interaction networks. Future research directions include algorithmic optimization, dynamic compliance maintenance, and empirical validation on real‑world datasets.
