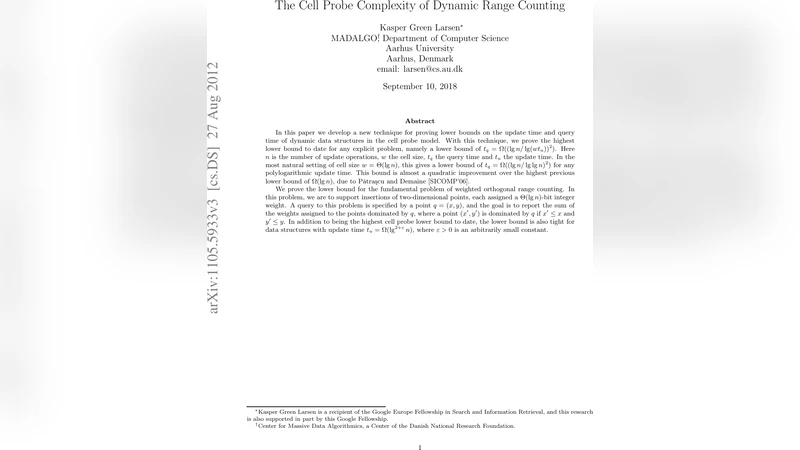

The Cell Probe Complexity of Dynamic Range Counting

In this paper we develop a new technique for proving lower bounds on the update time and query time of dynamic data structures in the cell probe model. With this technique, we prove the highest lower bound to date for any explicit problem, namely a lower bound of $t_q=\Omega((\lg n/\lg(wt_u))^2)$. Here $n$ is the number of update operations, $w$ the cell size, $t_q$ the query time and $t_u$ the update time. In the most natural setting of cell size $w=\Theta(\lg n)$, this gives a lower bound of $t_q=\Omega((\lg n/\lg \lg n)^2)$ for any polylogarithmic update time. This bound is almost a quadratic improvement over the highest previous lower bound of $\Omega(\lg n)$, due to P\v{a}tra\c{s}cu and Demaine [SICOMP'06]. We prove the lower bound for the fundamental problem of weighted orthogonal range counting. In this problem, we are to support insertions of two-dimensional points, each assigned a $\Theta(\lg n)$-bit integer weight. A query to this problem is specified by a point $q=(x,y)$, and the goal is to report the sum of the weights assigned to the points dominated by $q$, where a point $(x’,y’)$ is dominated by $q$ if $x’ \leq x$ and $y’ \leq y$. In addition to being the highest cell probe lower bound to date, the lower bound is also tight for data structures with update time $t_u = \Omega(\lg^{2+\eps}n)$, where $\eps>0$ is an arbitrarily small constant.

💡 Research Summary

The paper presents a breakthrough lower‑bound result for the dynamic weighted orthogonal range counting problem in the cell‑probe model, establishing a bound that significantly surpasses the long‑standing Ω(log n) barrier. The problem consists of maintaining a set of two‑dimensional points, each with a Θ(log n)‑bit integer weight, under insertions, and answering queries that ask for the sum of weights of all points dominated by a query point (x, y). The authors develop a novel technique based on an “encoder‑decoder” information‑theoretic game, which allows them to translate the number of cell probes made by a data structure into the amount of communication needed to convey the updates of a particular epoch. By partitioning the sequence of updates into epochs of size βⁱ (for a parameter β>1) and associating each cell with the epoch of its last write, they show that if a data structure could answer a query after the first epoch while probing only o(log β) cells from a given epoch i, then the encoder could compress the βⁱ random updates of that epoch into a message shorter than their entropy, contradicting information theory. To formalize this compression, they adapt ideas from Panigrahi et al. (2015) on static lower bounds: if a set S of cells is probed only O(log β) times on average, there exists a small subset S′⊆S that resolves many queries, implying that the encoder can use the contents of the probed cells as a short message. However, the entropy of the updates (Θ(βⁱ·log n) bits) far exceeds the information that O(log β) cells (each w bits) can convey, leading to a contradiction. Consequently, each epoch must contribute at least Ω(log β) cell probes, and summing over all log_β n epochs yields a total query time lower bound of

 t_q = Ω( (log n / log (w·t_u))² ).

Here w is the cell size and t_u is the worst‑case update time. In the natural setting w = Θ(log n), this simplifies to t_q = Ω((log n / log log n)²) for any polylogarithmic update time, which is an almost quadratic improvement over the previous best bound of Ω(log n) due to Patrascu and Demaine (SICOMP ’06). The bound is shown to be tight when the update time satisfies t_u = Ω(log^{2+ε} n) for any constant ε>0, matching known upper bounds based on classic data structures such as Fenwick trees.

The paper begins with a thorough review of prior techniques: the chronogram method of Fredman and Saks, which yields a single‑cell‑per‑epoch argument; and Patrascu’s extension that, using large weights (lg^{2+ε} n bits), forces Ω(log β) probes per epoch via a Bloom‑filter‑based communication protocol. The authors then detail the limitations of these approaches—particularly the reliance on heavy weights or on amortized analysis—and motivate the need for a more general argument.

Their new encoder‑decoder framework circumvents these limitations by directly comparing the communication cost of transmitting the updates of an epoch with the information obtainable from the probed cells. The proof proceeds by assuming a data structure that probes fewer than c·log β cells from epoch i, constructing an encoder that sends the contents of those cells (plus a compact Bloom filter indicating which cells belong to epoch i) to a decoder that already knows all prior updates. The decoder can then reconstruct the entire epoch i updates, implying that the message length must be at least the conditional entropy of those updates. Since the message is too short, a contradiction follows, establishing the required Ω(log β) probes per epoch.

The authors also present an artificial range‑counting variant to illustrate the technique before applying it to the full weighted orthogonal range counting problem. They discuss how the lower bound scales with the cell size w and the update time t_u, and they analyze the tightness of the bound in the regime t_u = Ω(log^{2+ε} n).

Finally, the paper outlines the remaining challenges: extending the method to support deletions, handling more general update operations, and reducing the dependence on Bloom‑filter parameters. It suggests that the encoder‑decoder paradigm may be adaptable to other dynamic problems such as dynamic connectivity, minimum spanning tree maintenance, or higher‑dimensional range queries, potentially leading to further breakthroughs in cell‑probe lower bounds.

In summary, this work introduces a powerful new information‑theoretic technique that yields the strongest known cell‑probe lower bound for dynamic weighted orthogonal range counting, achieving an almost quadratic improvement over prior results and providing a framework that could influence a broad range of future lower‑bound research.
