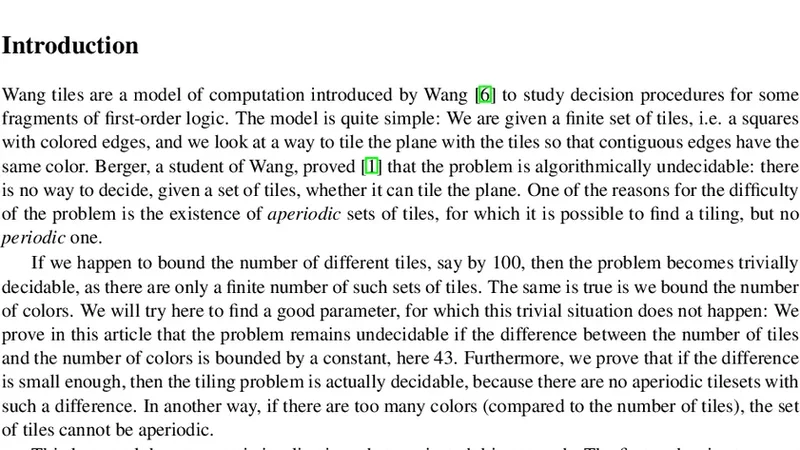

Fixed Parameter Undecidability for Wang Tilesets

Deciding if a given set of Wang tiles admits a tiling of the plane is decidable if the number of Wang tiles (or the number of colors) is bounded, for a trivial reason, as there are only finitely many such tilesets. We prove however that the tiling problem remains undecidable if the difference between the number of tiles and the number of colors is bounded by 43. One of the main new tool is the concept of Wang bars, which are equivalently inflated Wang tiles or thin polyominoes.

💡 Research Summary

The paper investigates the decidability frontier of the classic Wang tiling problem by introducing a novel fixed‑parameter: the difference between the number of tiles and the number of colors. While it is trivial that the problem becomes decidable when the total number of tiles (or colors) is bounded—because only finitely many tile sets exist—the authors show that even a very small bound on the gap between tiles and colors does not restore decidability. Specifically, they prove that if the quantity |tiles − colors| is at most 43, the problem of determining whether a given Wang tileset admits a tiling of the entire plane remains undecidable.

The central technical device is the concept of a “Wang bar.” A Wang bar can be thought of as an inflated Wang tile: a rectangular tile that is either a horizontal or vertical stretch of a unit square tile, or equivalently a thin polyomino. Each bar carries the same edge‑color constraints as ordinary Wang tiles on its four sides, but its interior is a line of unit squares that share the same colors on the two long sides. By allowing bars of arbitrary length, the authors can encode many ordinary tiles into a single bar while preserving the adjacency constraints.

The proof proceeds in two main stages. First, the authors give a constructive reduction that transforms any finite Wang tileset into an equivalent set of Wang bars. This reduction is careful to keep the number of distinct colors unchanged while possibly increasing the number of bars. The key observation is that a bar of length ℓ can simulate ℓ unit tiles placed consecutively, so a collection of bars can reproduce any desired tiling pattern.

Second, they adapt the classic reduction from the halting problem of a Turing machine to a Wang tiling instance. In the standard construction, one needs a large number of distinct tiles and colors to encode the machine’s tape symbols, states, and transition rules. By using Wang bars, the authors compress this encoding: the long side of a bar can carry a sequence of tape symbols, and the short side enforces the transition constraints. Crucially, they design the encoding so that the total number of colors never exceeds a fixed constant (the “color budget”), while the number of bars may grow, but the excess over the color count never exceeds 43. In other words, they achieve a tiling instance where |bars| − |colors| ≤ 43, yet the existence of a tiling is equivalent to the non‑halting of the simulated Turing machine.

Because the halting problem is undecidable, the existence of such a bounded‑gap tiling instance implies that the Wang tiling problem remains undecidable under the fixed‑parameter constraint. The constant 43 emerges from the particular coding scheme; the authors note that it is a technical artifact of their construction rather than a fundamental limit, and that reducing this bound would require a more efficient compression of the Turing‑machine simulation.

Beyond the main theorem, the paper discusses several implications. The introduction of Wang bars provides a new lens for studying parameterized tiling problems, suggesting that other natural parameters—such as the maximum tile size, the number of colors used on a single side, or the thickness of polyominoes—might also admit undecidability results when combined with suitable bounds. Moreover, the result contributes to the broader field of fixed‑parameter complexity in combinatorial decision problems, showing that even seemingly modest restrictions do not guarantee tractability.

In conclusion, the authors establish a striking fixed‑parameter undecidability result: bounding the difference between the number of Wang tiles and the number of colors by as little as 43 does not make the plane‑tiling problem decidable. Their innovative use of Wang bars not only achieves this bound but also opens new avenues for compact encodings in tiling theory and related areas of theoretical computer science.
