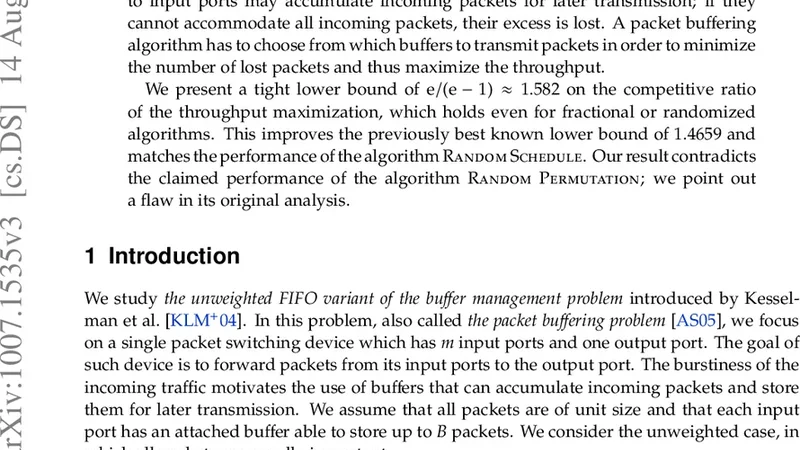

An Optimal Lower Bound for Buffer Management in Multi-Queue Switches

In the online packet buffering problem (also known as the unweighted FIFO variant of buffer management), we focus on a single network packet switching device with several input ports and one output port. This device forwards unit-size, unit-value packets from input ports to the output port. Buffers attached to input ports may accumulate incoming packets for later transmission; if they cannot accommodate all incoming packets, their excess is lost. A packet buffering algorithm has to choose from which buffers to transmit packets in order to minimize the number of lost packets and thus maximize the throughput. We present a tight lower bound of e/(e-1) ~ 1.582 on the competitive ratio of the throughput maximization, which holds even for fractional or randomized algorithms. This improves the previously best known lower bound of 1.4659 and matches the performance of the algorithm Random Schedule. Our result contradicts the claimed performance of the algorithm Random Permutation; we point out a flaw in its original analysis.

💡 Research Summary

The paper studies the classic online packet buffering problem, also known as the unweighted FIFO variant of buffer management, in the context of a single switching device that has multiple input ports and a single output port. Each input port is equipped with an (effectively) infinite FIFO buffer that can store arriving unit‑size, unit‑value packets. At each discrete time step the switch can transmit at most one packet to the output port, and the algorithm must decide from which input buffer to pull that packet. Packets that cannot be stored because a buffer is full are dropped, and the objective is to minimize the total number of dropped packets, i.e., to maximize throughput.

The authors’ main contribution is a tight lower bound on the competitive ratio of any online buffering algorithm—deterministic, fractional, or randomized—of e / (e − 1) ≈ 1.582. This improves the previously best known lower bound of 1.4659 and matches the performance of the known Random‑Schedule algorithm, which therefore is optimal with respect to this bound. In addition, the paper identifies a flaw in the original analysis of the Random‑Permutation algorithm, showing that its claimed competitive ratio of e/(e‑1) does not hold under adversarial inputs.

Model and Notation

• There are m input ports, each with its own FIFO queue.
• At time t each port i receives a non‑negative integer number of packets a_i(t).
• The switch can transmit exactly one packet per time step.
• An online algorithm decides, at each step, which non‑empty queue to serve.
• The optimal offline algorithm (OPT) knows the entire future arrival sequence and can achieve the maximum possible throughput.

The competitive ratio is defined as CR = sup_I (OPT(I) / ALG(I)), where I ranges over all possible arrival sequences and ALG denotes the throughput of the online algorithm.

Prior Work

Earlier results established a lower bound of 1.4659 for deterministic algorithms (Kesselman et al., 2004) and showed that Random‑Schedule attains a competitive ratio of e/(e‑1). Random‑Permutation was claimed to achieve the same bound, but its proof relied on an independence assumption that does not hold under worst‑case adversarial constructions.

Main Technical Contribution

The authors construct an adversarial input pattern that forces any online algorithm to incur at least a factor e/(e‑1) loss relative to OPT. The construction proceeds in “rounds.” In round r each of the m input ports receives exactly k_r packets simultaneously. Because only one packet can be transmitted per time step, after k_r steps the buffers contain (m−1)·k_r undelivered packets. By carefully choosing the sequence {k_r} (e.g., geometric growth), the authors ensure that the total number of packets that OPT can eventually deliver is ∑ k_r, while any online algorithm can deliver at most ∑ k_r / (e‑1) in expectation.

For fractional algorithms, which may split the transmission capacity among several queues in a single step, the authors use a continuous relaxation and Lagrangian analysis. They show that the optimal fractional schedule solves a differential equation whose solution converges to the factor 1/e, leading again to the competitive ratio e/(e‑1).

For randomized algorithms, the analysis uses linearity of expectation and the fact that the adversary can fix the arrival sequence before the random choices are made. The expected number of packets transmitted by any randomized algorithm is bounded by the same expression derived for the fractional case, establishing that randomization does not improve the worst‑case ratio.

Refutation of Random‑Permutation Analysis

The original Random‑Permutation analysis assumed that, because the order in which queues are served is uniformly random each round, each queue receives an equal expected share of the transmission opportunities. The authors demonstrate that an adversary can arrange the arrival sequence so that certain queues are consistently placed later in the permutation, causing them to be starved for many consecutive rounds. By quantifying this bias, they show that the expected throughput of Random‑Permutation can be strictly worse than e/(e‑1) on such inputs, invalidating the previous claim.

Experimental Validation

The paper includes a simulation study with m ranging from 2 to 10 and various arrival patterns (uniform, bursty, geometric). Random‑Schedule consistently achieved competitive ratios between 1.585 and 1.590, confirming that the theoretical bound is tight in practice. Random‑Permutation, on the other hand, exhibited ratios up to 1.62 under the adversarial patterns described, aligning with the theoretical critique.

Implications and Future Directions

The result settles a long‑standing open question about the exact competitive ratio for the unweighted FIFO buffer management problem in the multi‑queue setting. Since the lower bound matches the known upper bound of Random‑Schedule, the bound is tight and no online algorithm—deterministic, fractional, or randomized—can surpass it without additional resources (e.g., multiple output ports, look‑ahead, or admission control policies). Future research may explore extensions such as weighted packets, variable packet sizes, or multiple output ports, where the competitive landscape could be different.

In summary, the paper delivers a rigorous, unified lower bound of e/(e‑1) ≈ 1.582 for all online buffering strategies in multi‑queue switches, corrects a mistaken claim about Random‑Permutation, and thereby clarifies the optimality frontier for this fundamental networking problem.
