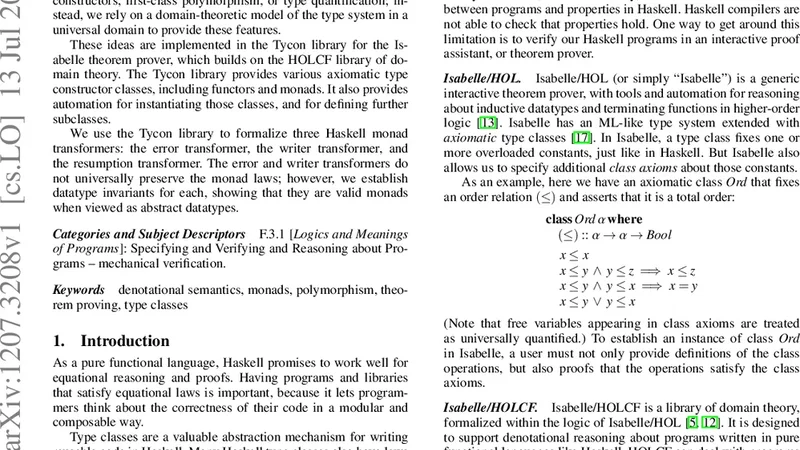

Formal Verification of Monad Transformers

We present techniques for reasoning about constructor classes that (like the monad class) fix polymorphic operations and assert polymorphic axioms. We do not require a logic with first-class type constructors, first-class polymorphism, or type quantification; instead, we rely on a domain-theoretic model of the type system in a universal domain to provide these features. These ideas are implemented in the Tycon library for the Isabelle theorem prover, which builds on the HOLCF library of domain theory. The Tycon library provides various axiomatic type constructor classes, including functors and monads. It also provides automation for instantiating those classes, and for defining further subclasses. We use the Tycon library to formalize three Haskell monad transformers: the error transformer, the writer transformer, and the resumption transformer. The error and writer transformers do not universally preserve the monad laws; however, we establish datatype invariants for each, showing that they are valid monads when viewed as abstract datatypes.

💡 Research Summary

The paper addresses the problem of formally verifying monad transformers—higher‑order abstractions that combine the effects of a base monad with additional computational features such as error handling, logging, or resumable control flow. Traditional approaches to reasoning about such constructs require a logic that supports first‑class type constructors, polymorphic operations, and quantification over types, which makes mechanisation in proof assistants cumbersome. Instead, the authors propose a domain‑theoretic model that embeds all types into a universal domain and interprets polymorphic operations as continuous functions on that domain. This model supplies the missing expressive power without extending the underlying logic.

Built on top of Isabelle/HOLCF, the authors implement the model in the Tycon library. Tycon provides axiomatic definitions of type‑constructor classes (functor, applicative, monad, etc.) and automation for instantiating these classes and defining subclasses. The key technical contribution is a set of proof‑automation tactics that, given a new type constructor, automatically generate the necessary continuity and monotonicity obligations, leaving the user to discharge only the class‑specific axioms.

The paper demonstrates the approach by formalising three well‑known Haskell monad transformers:

1. Error transformer (ErrorT) – adds exception handling to an underlying monad. The authors show that the naïve combination does not satisfy the monad left‑identity law because a raised exception short‑circuits subsequent binds. By treating ErrorT as an abstract datatype and introducing an invariant (“once an exception is present, further binds are ignored”), they prove that the transformer satisfies the monad laws at the abstract level.

2. Writer transformer (WriterT) – augments a monad with a log that is accumulated using a monoid. The interaction between bind and log concatenation can break associativity if logs are not combined in the correct order. The authors define a log‑ordering invariant and prove that, under this invariant, WriterT obeys all monad axioms.

3. Resumption transformer (ResT) – models resumable computations, allowing a program to pause and later resume its execution. This transformer introduces a more intricate control structure. Using the continuity properties of the universal domain, the authors encode resumptions as streams of steps and prove that the resumption operator preserves the required domain‑theoretic properties, thereby establishing the monad laws for ResT.

For the error and writer transformers, the paper highlights that the monad laws hold only when the datatype is viewed abstractly with the stated invariants; the concrete representation may violate the laws. This distinction mirrors practical Haskell usage, where programmers rely on the abstract interface rather than the raw data representation.

The broader significance of the work lies in its demonstration that sophisticated type‑level features can be reasoned about without extending the underlying logic with first‑class type constructors or explicit type quantification. By leveraging the universal domain, the Tycon library provides a reusable infrastructure for formalising a wide range of constructor‑based abstractions. The automation reduces the manual proof burden dramatically, making it feasible to verify real‑world Haskell libraries.

In conclusion, the authors present a practical, scalable method for the formal verification of monad transformers. Their domain‑theoretic approach, implemented in Isabelle/HOLCF via the Tycon library, enables the mechanised proof of monad laws for complex transformers while preserving a high degree of automation. This advances the state of the art in trustworthy functional programming and opens the door to verifying larger portions of Haskell’s ecosystem.
