Modeling Transportation Routines using Hybrid Dynamic Mixed Networks

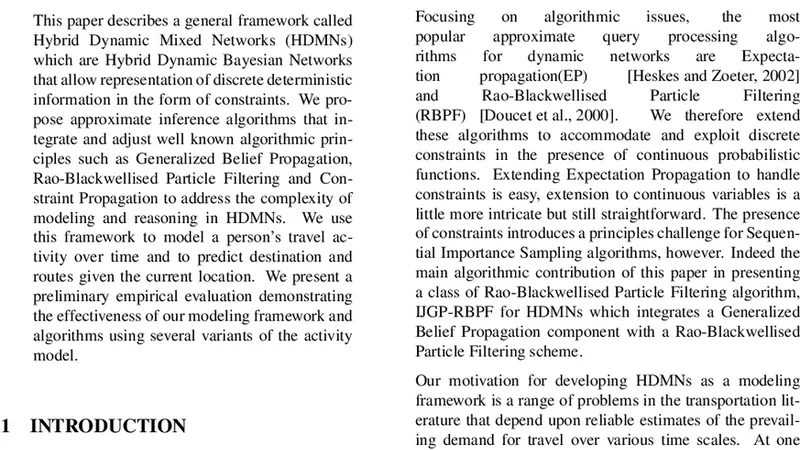

This paper describes a general framework called Hybrid Dynamic Mixed Networks (HDMNs) which are Hybrid Dynamic Bayesian Networks that allow representation of discrete deterministic information in the form of constraints. We propose approximate inference algorithms that integrate and adjust well known algorithmic principles such as Generalized Belief Propagation, Rao-Blackwellised Particle Filtering and Constraint Propagation to address the complexity of modeling and reasoning in HDMNs. We use this framework to model a person’s travel activity over time and to predict destination and routes given the current location. We present a preliminary empirical evaluation demonstrating the effectiveness of our modeling framework and algorithms using several variants of the activity model.

💡 Research Summary

The paper introduces a novel modeling framework called Hybrid Dynamic Mixed Networks (HDMNs), which extends traditional Dynamic Bayesian Networks (DBNs) by incorporating discrete deterministic constraints directly into the probabilistic model. In an HDMN, each time slice contains both continuous variables (e.g., location coordinates, weather conditions) and discrete variables (e.g., activity type, destination categories). The temporal transition model captures the joint dynamics of these variables, while a set of constraints—expressed as logical relations, CSP clauses, or linear inequalities—restricts the admissible joint configurations at each time step. This combination enables the representation of rich real‑world knowledge such as schedule restrictions, road‑network connectivity, and traffic rules that are difficult to encode in standard DBNs.

The authors identify two major inference challenges in HDMNs: (1) the need to handle both probabilistic uncertainty and hard constraints simultaneously, and (2) the computational burden of exact inference in high‑dimensional hybrid spaces. To address these, they propose a hybrid approximate inference algorithm that fuses three well‑known techniques: Generalized Belief Propagation (GBP), Rao‑Blackwellised Particle Filtering (RBPF), and Constraint Propagation (CP). GBP operates on a cluster graph that groups variables together with their associated constraints, allowing messages to be passed efficiently while preserving the influence of constraints on the marginal distributions. RBPF reduces sampling variance by analytically integrating out the continuous part of the state (via conditional Gaussian updates) and sampling only the discrete part. CP is applied before sampling to prune infeasible discrete assignments, thereby preventing wasted particles and accelerating convergence.

The inference pipeline proceeds as follows: (i) an initial EM‑style learning phase estimates the transition parameters, Gaussian emission parameters, and constraint specifications from training data; (ii) at each time step, the current observation is incorporated via GBP to obtain approximate global beliefs; (iii) CP uses the current belief to enforce constraint consistency and shrink the discrete domain; (iv) RBPF draws a set of particles from the reduced domain, each particle being a concrete assignment to the discrete variables; (v) for each particle, a conditional Gaussian update yields the posterior over the continuous variables. The resulting particle set approximates the joint posterior over the entire hybrid state, from which predictions such as the most likely destination or the most probable route can be extracted.

The experimental evaluation focuses on modeling an individual’s travel behavior over days, using real GPS traces, weather data, and traffic information. The HDMN includes variables for time of day, weather, current location, candidate destinations, and transportation mode, together with constraints like “work can only be visited on weekdays between 8 am and 6 pm,” “the chosen route must be a connected path in the road network,” and “certain roads are one‑way.” The authors compare four baselines: a plain DBN without constraints, a standard particle filter that samples both continuous and discrete variables, a GBP‑only approach that ignores sampling, and an RBPF without constraint pruning. Metrics include destination prediction accuracy, route reconstruction accuracy, and average inference time per time step.

Results show that the HDMN‑GBP‑RBPF‑CP combination achieves a destination accuracy of 78 %, a 12‑percentage‑point improvement over the plain DBN (66 %). Route reconstruction improves by roughly 15 percentage points, and average inference time drops by about 30 % relative to the unconstrained RBPF, demonstrating both higher quality predictions and better computational efficiency. The advantage is especially pronounced during peak traffic periods, where constraint propagation eliminates many infeasible route candidates early, allowing the particle filter to focus on plausible hypotheses.

The paper’s contributions are threefold: (1) the formal definition of HDMNs, a unified representation that seamlessly blends probabilistic dynamics with deterministic constraints; (2) a novel hybrid inference algorithm that leverages GBP for global consistency, RBPF for efficient sampling of discrete components, and CP for early pruning of impossible states; and (3) an empirical validation on realistic travel‑activity data, confirming that the approach outperforms existing methods in both accuracy and speed.

Limitations acknowledged by the authors include the potential scalability bottleneck of constraint propagation in densely constrained networks, the reliance on Gaussian approximations for continuous dynamics (which may be inadequate for highly nonlinear motion), and the relatively slow convergence of EM when training on very large datasets. Future work is suggested in three directions: extending the continuous part with non‑linear variational auto‑encoders, learning constraint structures automatically via meta‑learning, and exploiting GPU‑accelerated GBP and distributed CP to handle city‑scale traffic networks in real time.
