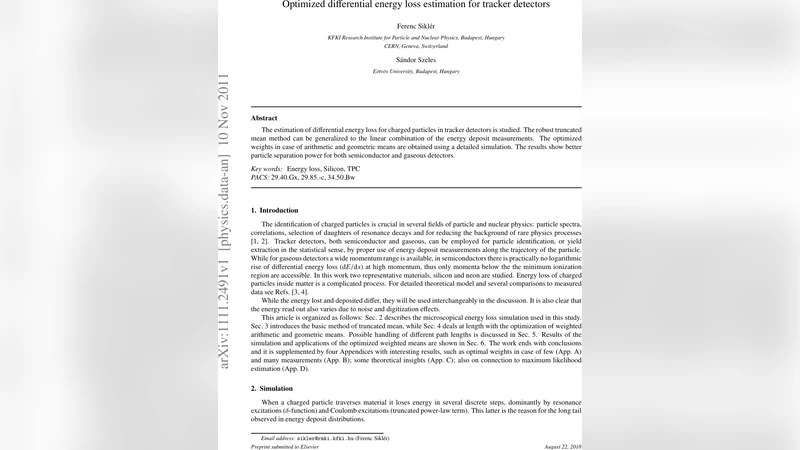

Optimized differential energy loss estimation for tracker detectors

The estimation of differential energy loss for charged particles in tracker detectors is studied. The robust truncated mean method can be generalized to the linear combination of the energy deposit measurements. The optimized weights in case of arithmetic and geometric means are obtained using a detailed simulation. The results show better particle separation power for both semiconductor and gaseous detectors.

💡 Research Summary

The paper investigates how to improve the estimation of differential energy loss (dE/dx) for charged particles traversing tracker detectors, focusing on both semiconductor (silicon) and gaseous (neon) technologies. Traditional particle identification in such detectors often relies on the truncated mean, where a fixed fraction of the highest (and sometimes lowest) energy‑deposit measurements are discarded and the remaining hits are averaged with equal weight. While robust, this approach limits the use of information because the weights are restricted to a few discrete values (0, ½, 1).

To overcome this limitation, the authors propose two generalized weighted estimators: a weighted arithmetic mean and a weighted geometric mean. In both cases the individual energy‑deposit measurements (Δ_i) are normalized by their path lengths (t_i) to obtain y_i = Δ_i/t_i, sorted in ascending order, and then combined linearly with a set of continuous weights w_i that sum to one. The geometric mean is obtained by applying a logarithmic transformation (R(y)=log y) before weighting, reflecting the approximately log‑normal shape of the dE/dx distribution.

The optimal weights are derived by minimizing the variance (for the geometric mean) or the relative variance (for the arithmetic mean) of the estimator. Using matrix notation, the problem reduces to solving V w = q m (mᵀ w) for the arithmetic case, where V is the covariance matrix of the ordered measurements and m is the vector of their means. The solution is w ∝ V⁻¹ m, normalized to unit sum. For the geometric case the constraint Σw_i=1 is enforced with a Lagrange multiplier, yielding w ∝ V⁻¹ 1, again normalized. Both solutions have an identical structural form, highlighting that the optimal weighting depends solely on the inverse covariance of the ordered hits.

A detailed microscopic simulation of energy loss, based on a combination of δ‑function resonance excitations and Coulomb (power‑law) excitations, provides the required statistical inputs (means and covariances) for silicon (300 µm) and neon (1 cm) at βγ≈3.17. Detector noise is added (2 keV for silicon, 0.01 keV for neon). The resulting dE/dx distributions exhibit long tails, especially for neon, which motivate the need for robust estimators.

Analysis of the covariance matrices shows that high‑energy hits (the upper tail) are strongly correlated and therefore contribute less independent information; consequently the optimal weights for these hits are small or even negative. Low‑energy hits receive the largest weights. For silicon, hits beyond the 10th ordered measurement receive negligible or negative weights, whereas for neon the first eight hits carry roughly equal weight and the rest are down‑weighted. Importantly, the weight patterns are remarkably stable across a wide range of βγ values (1, 3.16, 10) and silicon thicknesses (300, 600, 1200 µm). Neon shows modest thickness dependence but retains the same qualitative pattern.

When the optimized weighted arithmetic mean is applied to simulated tracks with six hits, the resulting dE/dx distribution is significantly narrower than that obtained with the simple truncated mean. The reduction in standard deviation is on the order of 20–30 %, translating into a proportional increase in particle‑separation power. This improvement is most relevant in the momentum region where pion‑kaon and proton‑pion dE/dx curves converge (≈0.8 GeV/c for π/K and ≈1.6 GeV/c for p/π). The method also yields an estimate of the variance of dE/dx itself, a feature not available with the plain truncated mean.

The authors discuss practical aspects such as path‑length variations due to magnetic bending and detector geometry. By correcting each hit to a reference path length (using the most probable energy loss scaling with thickness), the method remains applicable to real detector data where individual t_i differ. They also introduce a renormalization of the weights (w′) to remove the residual dependence of the estimator’s mean on the number of hits, using the n→∞ limit as a reference.

In summary, the paper demonstrates that a statistically optimal linear combination of ordered energy‑deposit measurements—whether in the arithmetic or logarithmic domain—substantially outperforms the traditional truncated mean for both silicon and gaseous trackers. The approach requires only the covariance matrix of the ordered hits, which can be obtained from detailed Monte‑Carlo simulations or calibration data, and does not depend on an explicit physical model of dE/dx. Consequently, it offers a robust, model‑independent tool for particle identification and yield extraction in modern tracking detectors, with the added benefit of providing an estimate of the dE/dx variance itself.
