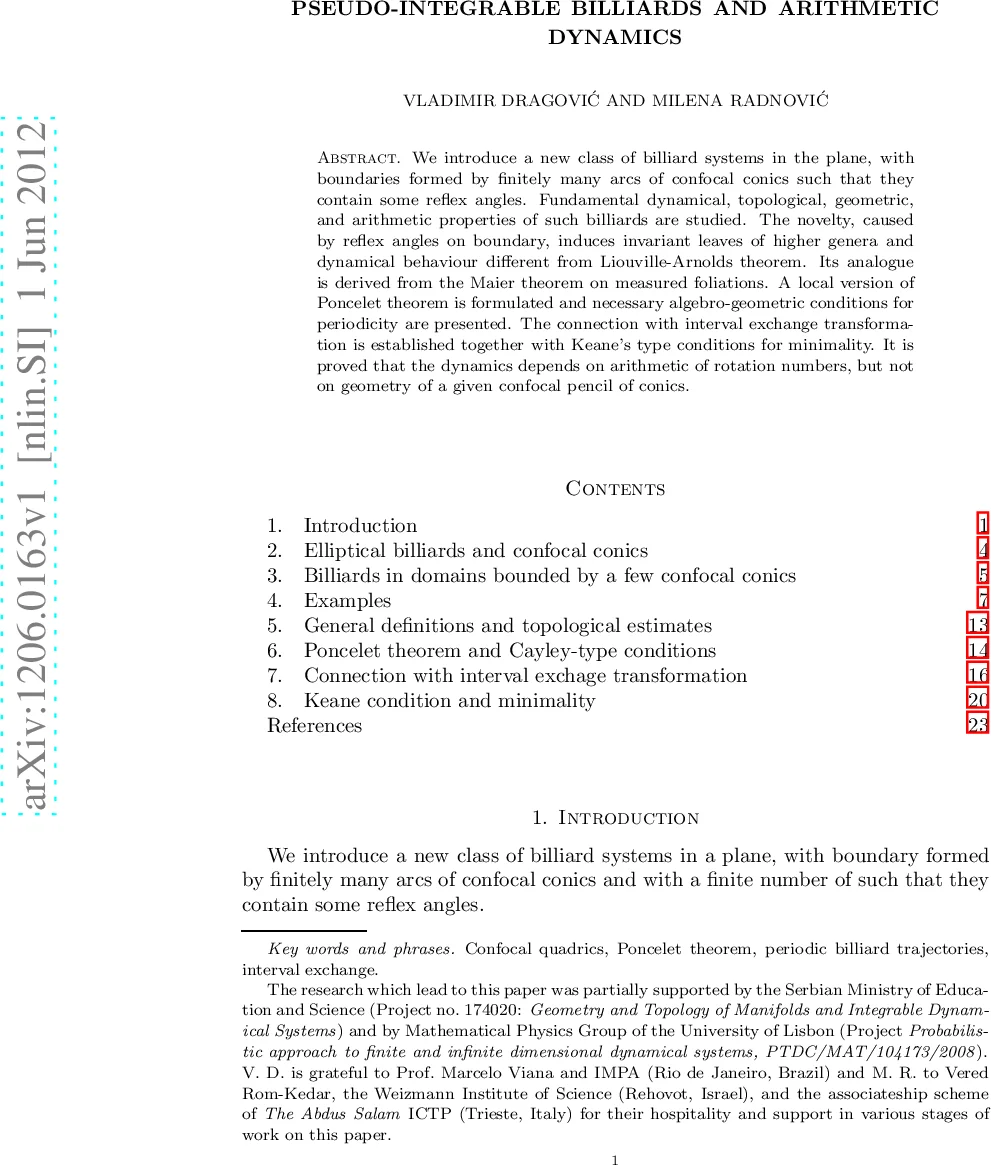

Pseudo-integrable billiards and arithmetic dynamics

We introduce a new class of billiard systems in the plane, with boundaries formed by finitely many arcs of confocal conics such that they contain some reflex angles. Fundamental dynamical, topological, geometric, and arithmetic properties of such billiards are studied. The novelty, caused by reflex angles on boundary, induces invariant leaves of higher genera and dynamical behaviour different from Liouville-Arnold’s theorem. Its analogue is derived from the Maier theorem on measured foliations. A local version of Poncelet theorem is formulated and necessary algebro-geometric conditions for periodicity are presented. The connection with interval exchange transformation is established together with Keane’s type conditions for minimality. It is proved that the dynamics depends on arithmetic of rotation numbers, but not on geometry of a given confocal pencil of conics.

💡 Research Summary

The paper introduces a novel class of planar billiard systems whose boundaries consist of finitely many arcs of confocal conics and, crucially, contain reflex angles (interior angles smaller than 180°). Traditional billiard dynamics assume smooth boundary points where the law of specular reflection is well defined. In contrast, the authors treat points where two confocal conics intersect orthogonally: if the intersecting tangents form a convex (right or obtuse) angle, a limiting process yields a “double‑reflection” that can be interpreted as a single bounce; if the tangents form a reflex angle, no limit exists and the usual reflection rule fails. Such singular points give rise to saddle‑connections, a concept extended from the theory of measured foliations.

The underlying geometric setting is the standard confocal family
(C_\lambda:; \frac{x^2}{a-\lambda}+\frac{y^2}{b-\lambda}=1) with (a>b>0). By Chasles’ theorem, each segment of a billiard trajectory is tangent to a fixed conic of this family, called the caustic. The authors exploit this property to construct two independent Poisson‑commuting integrals (K_{\lambda_1},K_{\lambda_2}). Their commutation ({K_{\lambda_1},K_{\lambda_2}}=0) and functional independence for (\lambda_1\neq\lambda_2) establish the system as integrable in the Liouville sense at the level of first integrals, yet the presence of reflex angles prevents the invariant manifolds from being tori. Instead, the invariant leaves are orientable surfaces of genus three or higher (Proposition 3.1, Theorem 5.4). This departure from the Liouville‑Arnold picture is explained via Maier’s theorem on measured foliations: each leaf carries a measured foliation whose transverse measure is encoded by a rotation function (\rho(\lambda)). The function (\rho) is continuous, strictly decreasing, maps ((-\infty,\alpha_0)) onto ((0,\frac12]), and determines the dynamics on each leaf.

A local version of the Poncelet theorem (Theorem 6.1) is proved: even with reflex angles, there exist closed polygonal orbits that are tangent to a common caustic, provided certain algebraic conditions (Cayley‑type equations, Theorem 6.2) are satisfied. These conditions are expressed in terms of the parameters of the confocal family and the rotation numbers, linking periodicity to classical algebraic geometry.

The authors then translate the billiard flow into an interval exchange transformation (IET). Cutting the boundary into arcs according to the caustic’s intersection points yields a piecewise isometry of the unit interval, where the lengths of the exchanged intervals are proportional to the arc lengths. The rotation number (\rho) governs the combinatorial data of the IET: if (\rho) is rational, the IET is periodic and the billiard trajectory closes after a finite number of reflections; if (\rho) is irrational, the IET is minimal, and the trajectory is dense in the invariant surface. To guarantee minimality in the presence of singularities, the authors formulate a Keane‑type condition adapted to the reflex‑angle setting (Theorem 8.1). This condition excludes the occurrence of “connections” that would create periodic islands, ensuring that almost every orbit is uniformly distributed.

A series of explicit examples illustrates the theory. In Section 4 the authors consider domains bounded by two concentric half‑circles (the degenerate case (a=b) where confocal conics become circles) together with vertical line segments. By choosing radii so that the associated rotation numbers are rational (e.g., (1/3) and (1/4), or (1/4) and (1/6), or ((5-\sqrt5)/10) and (\sqrt5/10)), they exhibit six saddle‑connections that partition the boundary into a finite number of arcs. Each configuration yields two families of periodic trajectories (different periods, different winding directions) and a third family of dense trajectories when the rotation numbers are irrational. The phase space is visualised as a collection of “rings” glued along the singular arcs, producing a surface of genus three. The examples demonstrate that the combinatorial structure of the IET (the permutation and the lengths) is completely determined by the arithmetic of the rotation numbers, not by the specific geometry of the confocal pencil.

The main conclusions are:

1. Pseudo‑integrability: Reflex angles generate invariant surfaces of higher genus, breaking the classical Liouville‑Arnold torus foliation while preserving two independent integrals.
2. Arithmetic dominance: The qualitative dynamics (periodicity vs. minimality, existence of saddle‑connections) depend solely on the rationality of the rotation numbers (\rho), not on the actual shape or size of the confocal arcs.
3. Unified framework: By combining Maier’s measured foliation theorem, a local Poncelet theorem, Cayley‑type algebraic conditions, and interval‑exchange dynamics with a Keane‑type minimality criterion, the paper provides a comprehensive description of billiard dynamics in domains with reflex angles.
4. Potential extensions: The methods suggest that similar pseudo‑integrable behavior should appear in higher‑dimensional billiards or in other piecewise‑smooth Hamiltonian systems where singularities create higher‑genus invariant manifolds.

Overall, the work bridges classical billiard theory, algebraic geometry, and the modern theory of interval exchange transformations, revealing that the arithmetic of rotation numbers is the decisive factor governing the dynamics of pseudo‑integrable billiards with reflex angles.
